Περιγραφή
Design
Product colour: White
Housing material: Metal
Form factor: Dome
International Protection (IP) code: IP67
Mounting type: Ceiling
Power
Power source type: DC, PoE
Power consumption (max): 4 W
Power consumption (typical): 2.9 W
Security
Active tampering alarm: Yes
Video motion detection: Yes
Operational conditions
Operating temperature: -40°C ~ +60°C
Ambient temperature: -40°C ~ +60°C
Operating relative humidity (H-H): 0 - 95%
Management features
Web-based management: Yes
Web browser: Yes
Weight & dimensions
Weight: 440 g
Height: 70 mm
Depth: 70 mm
Width: 173 mm
Network
Ethernet interface type: Fast Ethernet
Ethernet : One 10/100Mbps RJ45 port
Supported network protocols: IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; NTP; Multicast; ICMP; IGMP
Wi-Fi: No
Performance
Connectivity technology: Wired
Wide Dynamic Range (WDR): Yes

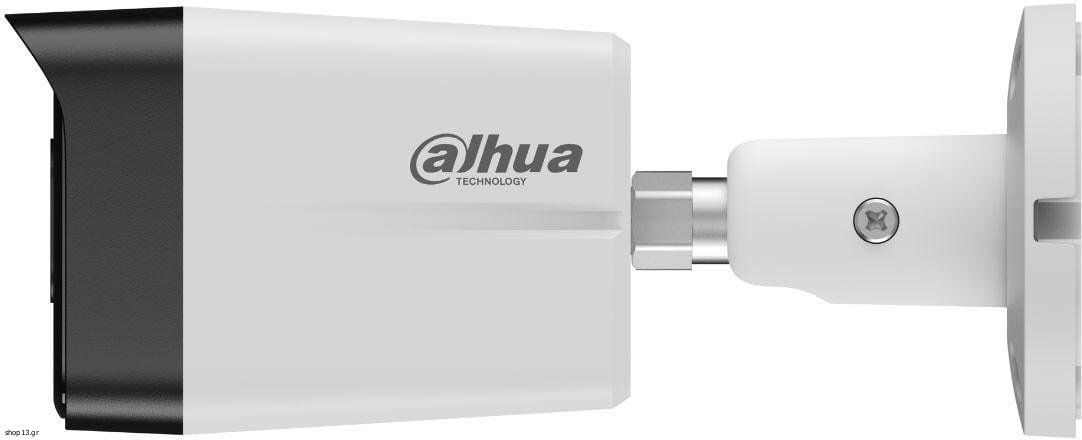

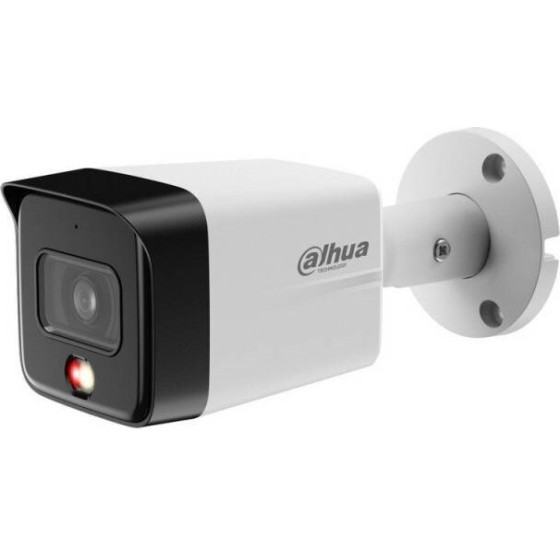

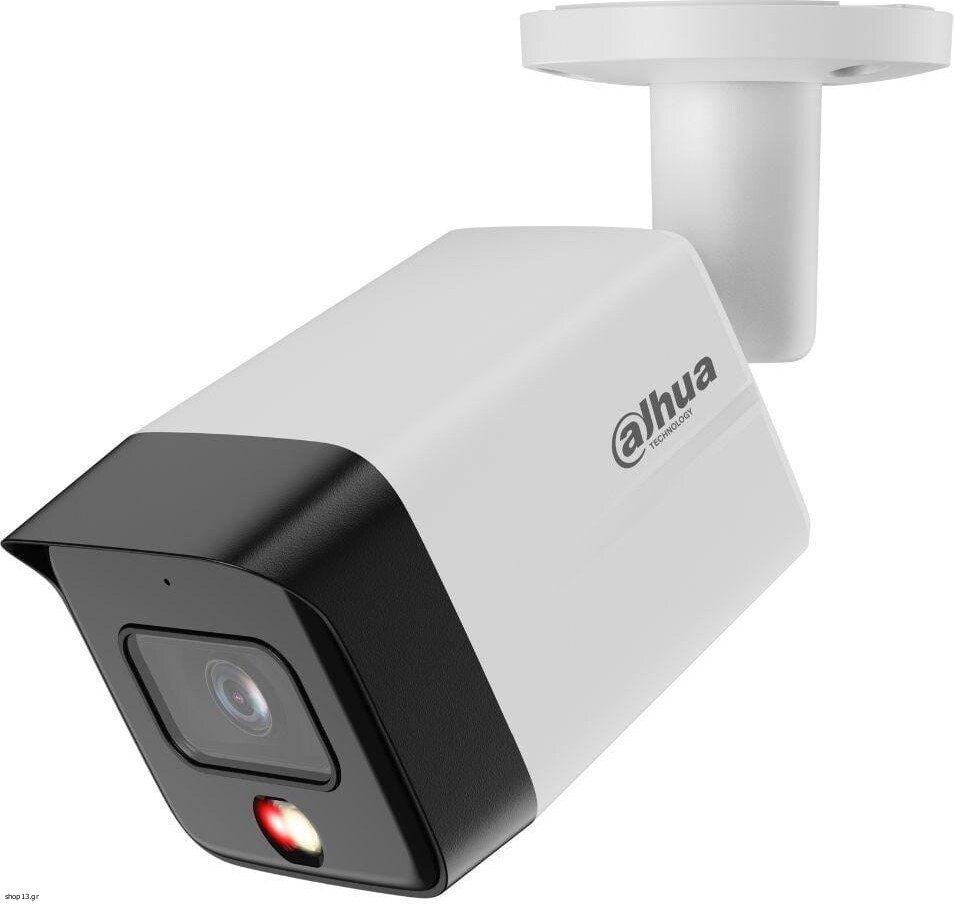

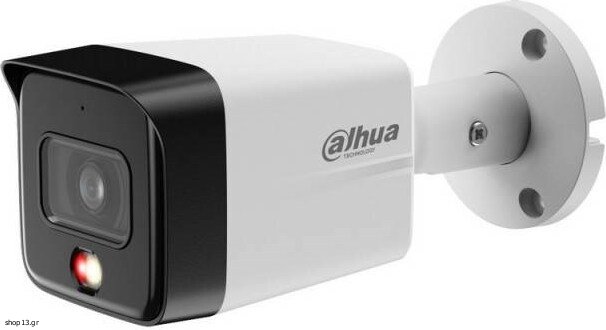

Type: IP security camera
Regulatory Approvals: CE-LVD: EN62368-1; CE-EMC: Dyrektywa Kompatybilnosci Elektromagnetycznej 2014/30/EU
Placement supported: External / Internal
Packaging content
Number of cameras: 1
Audio
Built-in microphone: Yes
Audio detection: Yes
Voice codecs: G.711a, G.726, PCM, G.711Mu
Signal-to-Noise Ratio (SNR): 56 dB
Storage
ROM: 128 MB
RAM: 256 MB
Built-in HDD: No
Camera
Lens: Permanent
Number of Privacy masking areas: 4
Adjustment shutter speed: Auto/Manual
Camera shutter speed: 1/3 - 1/100000 s
Observe distance: 30 m
Viewing angle: 110°
Image sensor
Progressive scan: Yes
Sensor type: CMOS
Video
Bitrate: H.264: 32 kbps-8192 kbps; H.265: 12 kbps-8192 kbps
Maximum resolution: 3200 x 1800 pixels
Supported graphics resolutions: 1920 x 1080 (HD 1080), 2048 x 1536 (QXGA), 2880 x 1620, 1280 x 720 (HD 720), 352 x 288, 640 x 480 (VGA), 704 x 480, 2688 x 1520, 3200 x 1800, 3840 x 2160, 352 x 240, 2304 x 1296, 704 x 576, 1280 x 960
Noise reduction technology: 3D NR
Total megapixels: 6 MP
Frame rate: 25 / 30 fps
Video compression formats: M-JPEG, H.265+, H.264+, H.265
Video streaming: Yes
Night vision
Night vision distance: 30 m
LED type: 1 IR LED + white light LED
Night vision: Yes
Safety warning
Warnings: Avoid direct contact with water to prevent electrical damage., Ensure that the product is properly installed and protected against falling., The product contains electronic components; do not dispose of with the normal household waste.
Warranty: warranty 36 months
