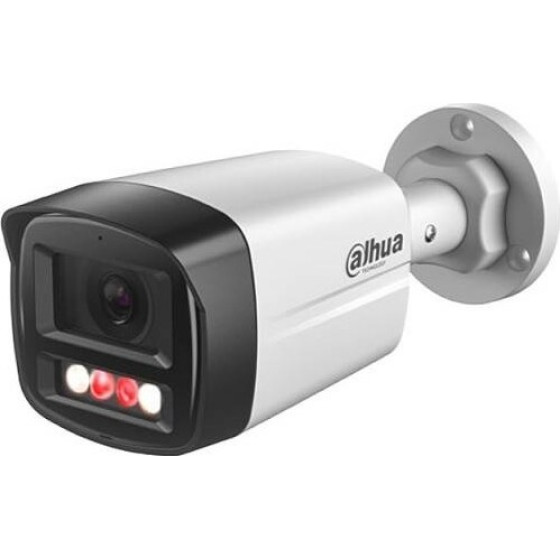

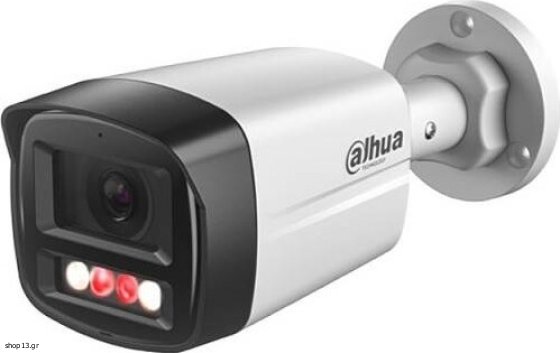

Dahua Ip Camera IPC-HFW1439TL1-A-IL-0280B - (IPC-HFW1439TL1-A-IL-0360B)

Design
Product colour: White
International Protection (IP) code: IP67
Mounting type: Ceiling/wall
Form factor: Bullet

Power
Power source type: DC, PoE
DC output voltage: 12
Power consumption (Power over Ethernet (PoE)): 2.9 W
Power consumption (max): 6.4 W
Power over Ethernet (PoE) voltage range: 48 V
Power consumption (typical): 2 W

Security
Video motion detection: Yes
Mirror: Yes
Active tampering alarm: Yes

Operational conditions
Operating temperature (T-T): -40 - 60 °C
Operating relative humidity (H-H): 0 - 95%

Management features
Web browser: Yes
Smartphone/tablet remote support: Yes
Management software: Smart PSS, Smart PSS Lite, DSS, DMSS, P2P

Weight & dimensions
Weight: 310 g
Width: 80.2 mm
Height: 76.2 mm
Depth: 197.9 mm

Network
Streaming method: Multicast
Supported network protocols: IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; NTP; Multicast; ICMP; IGMP; P2P
Wi-Fi: No
Ethernet LAN: Yes
Ethernet interface type: Fast Ethernet

System requirements
Mobile operating systems supported: Android, iOS

Performance
Connectivity technology: Wired
Placement supported: Indoor & outdoor
Wide Dynamic Range (WDR): 120 dB
Type: IP security camera
Day/night mode: Yes

Packaging content
Number of cameras: 1

Audio
Built-in microphone: Yes
Audio codecs: G.711a, G.711Mu, G.726, PCM
Signal-to-Noise Ratio (SNR): 56 dB

Storage
ROM capacity: 128 MB
Internal memory: 128 MB

Ports & interfaces
Ethernet LAN (RJ-45) ports: 1

Camera
Lens viewing angle, horizontal: 94°
Lens viewing angle, diagonal: 111°
Tilt angle range: 0 - 90°
Lens viewing angle, vertical: 52°
White balance: Outdoor, Regional custom, Natural, Street lamp, Manual, Auto
Camera shutter type: Mechanical, Auto
Pan range: 0 - 360°
Camera shutter speed: 1/3 -1/100000 s

Image sensor
Sensor type: HD CMOS
Number of effective pixels (H x V): 2560 x 1440 pixels
Optical sensor size: 25.4 / 2.9 mm (1 / 2.9")
Progressive scan: Yes
Number of sensors: 1

Video
Supported graphics resolutions: 1920 x 1080 (HD 1080), 704 x 480, 352 x 288, 640 x 480 (VGA), 704 x 576, 1280 x 960, 2560 x 1440, 352 x 240, 2304 x 1296, 1280 x 720 (HD 720)
Maximum resolution: 2560 x 1440 pixels
Video compression formats: H.264+, H.265+, H.264, H.264H, H.265, H.264B
Gain control type: Auto/Manual
Noise reduction: Yes
Supported video modes: 1080p, 960p, 720p
Bit rate: H.264: 32 - 4096Kbps; H.265: 12 - 4096Kbps
Frame rate: 30 fps
Region of Interest (ROI) encoding: Yes
Total megapixels: 4 MP
Noise reduction technology: 3D NR
Smart IR: Yes
Bit rate control: Constant Bit Rate (CBR), Variable Bit Rate (VBR)
Video streaming: Yes

Night vision
Night vision: Yes
Night vision distance: 30 m
LED type: IR / White light LED
Number of illumination LEDs: 2 / 2

Lens system
Closest focusing distance: 1.1 m
Number of lenses: 1
Recognize distance: 12.8 m
Detect distance: 64 m
Focal length range: 2.8 mm
Observe distance: 25.6 m
Identify distance: 6.4 m

Safety warning
Warnings: The product contains electronic components; do not dispose of with the normal household waste., Avoid direct contact with water to prevent electrical damage., Ensure that the product is properly installed and protected against falling.


Warranty: Manufacturer warranty 24 months
