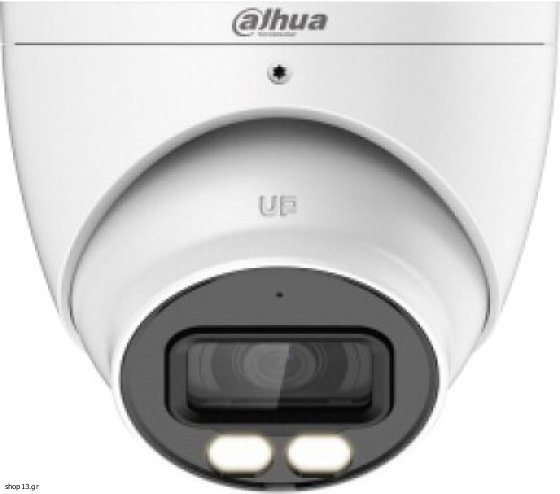

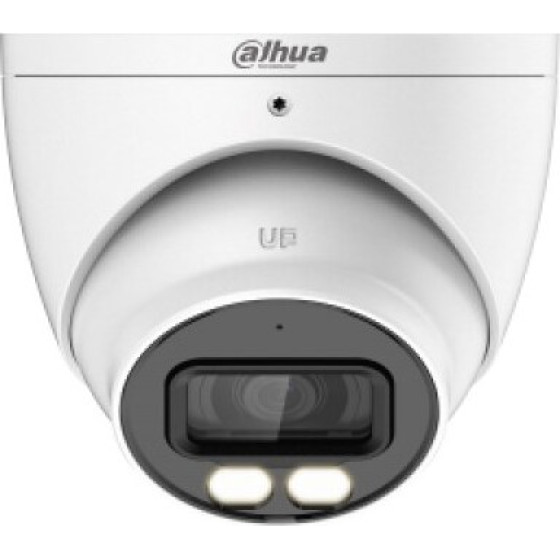

Dahua Ip Camera - (IPC-HDW1239V-A-IL-0280B)

Design
Mounting type: M12
Housing material: Metal, Plastic
International Protection (IP) code: IP67
Form factor: Dome
Product colour: White

Power
Power consumption (Power over Ethernet (PoE)): 2.3 W
DC output voltage: 12
Power consumption (max): 5.6 W
Power source type: DC, PoE

Operational conditions
Storage temperature (T-T): -40 - 60 °C
Operating relative humidity (H-H): 0 - 95%
Operating temperature (T-T): -40 - 60 °C

Management features
Web browser: Yes
Web-based management: Yes

Weight & dimensions
Height: 100.9 mm
Weight: 330 g

Network
Number of users: 6 user(s)
Wi-Fi: No
Ethernet interface type: Fast Ethernet
Bluetooth: No
Networking standards: IEEE 802.3af

System requirements
Mobile operating systems supported: Android, iOS

Performance
Placement supported: External / Internal
Signal-to-Noise Ratio (SNR): 56 dB
Connectivity technology: Wired
Type: IP security camera

Packaging content
Number of cameras: 1

Audio
Audio formats supported: PCM, G.711a, G.726, G.711Mu
Built-in microphone: Yes

Storage
ROM capacity: 128 MB
Internal memory: 128 MB
Built-in HDD: No

Camera
Lens viewing angle, vertical: 55°
Lens viewing angle, diagonal: 124°
Lens viewing angle, horizontal: 104°
White balance: Natural, Outdoor, Regional custom, Manual, Auto, Street lamp
Camera shutter speed: 1/3 - 1/100000 s
Adjustment shutter speed: Auto/Manual
Pan range: 0 - 360°
Tilt angle range: 0 - 78°

Image sensor
Sensor type: CMOS
Number of sensors: 1
Progressive scan: Yes

Video
Video compression formats: H.264, H.265, H.264B, M-JPEG, H.264H
Gain control type: Auto/Manual
Mirror function: Yes
Video streaming: Yes
Region of Interest (ROI) encoding: Yes
Frame rate: 30 fps
Bit rate: H.264: 32kbps ~ 4096kbps H.265: 12kbps ~ 4096kbps
Noise reduction: Yes
Total megapixels: 2 MP
Noise reduction technology: 3D NR
Maximum resolution: 1920 x 1080 pixels
Supported graphics resolutions: 704 x 576, 1280 x 960, 1280 x 720, 640 x 480 (VGA), 704 x 480, 1920 x 1080, 352 x 240, 352 x 288

Night vision
Night vision: Yes
Night vision distance: 30 m
Number of illumination LEDs: 2
LED type: IR / White light LED

Lens system
Closest focusing distance: 1.5 m
Maximum aperture number: 1.6
Lens type: Fixed focal length lens
Number of lenses: 1
Focal length range: 2.8 mm

Safety warning
Warnings: The product contains electronic components; do not dispose of with the normal household waste., Ensure that the product is properly installed and protected against falling., Avoid direct contact with water to prevent electrical damage.


Warranty: Manufacturer warranty 24 months
