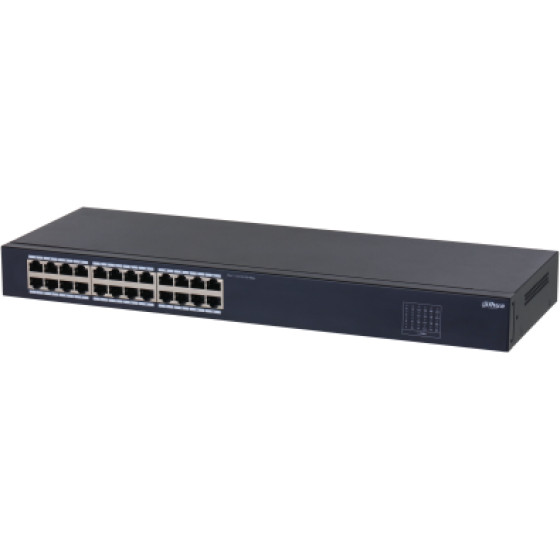

Dahua 24-Port Unmanaged Ethernet Switch - (DH-SF1024)

Hardware

Included Power Adapter

Yes

Ethernet Port

24

Ethernet Port Speed

10/100 Mbps

Description of Function Slots

Port 1-24: 24 x RJ-45 10/100 Mbps

Power Supply

Built-in power supply: 100-240 VAC, 50/60 Hz, max 0.7 A

Operating Temperature

-20 °C to +60 °C (-4 °F to +140 °F)

Operating Humidity

10%-90% (RH), non-condensing

Storage Temperature

-40 °C to +75 °C (-40 °F to +167 °F)

Power Consumption

Idling: 0.7 W Full load: 2.3 W

Performance

Layer

Layer 2

Switching Capacity

4.8 Gbps

Packet Forwarding Rate

3.57 Mpps

Packet Buffer Size

4 Mbit

Jumbo Frame

2048 Byte

MAC Table Size

8K Byte

Communication Standard

IEEE802.3; IEEE802.3u; IEEE802.3X

General

Statics Protection

Air discharge: 8 kV Contact discharge: 6 kV

Lighting Protection

Common mode: 2 kV Differential mode: 0.5 kV

Net Weight

1.64 kg (3.62 lb)

Gross Weight

2.55 kg (5.62 lb)

Product Dimensions

440 mm x 155 mm x 43.7 mm (17.32" x 6.10" x 1.72") (L x W x H)

Packaging Dimensions

523 mm x 273 mm x 109 mm (20.59" x 10.75" x 4.29") (L x W x H)

Casing Material

Iron

Installation

Desktop mount; rack mount

Certifications

CE



Κατασκευαστής : Dahua
Ports 10/100 fixed : 24
Manageable : Οχι
Part Number : DH-SF1024
Μεικτό βάρος : 2,55 kg
Καθαρό βάρος : 1,64 kg
EAN Number : 6923172597502
Εγγύηση : 3 έτη
