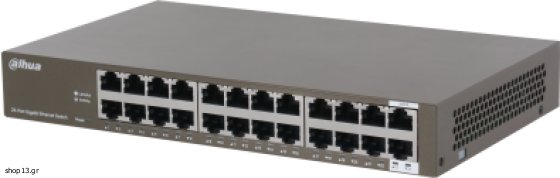

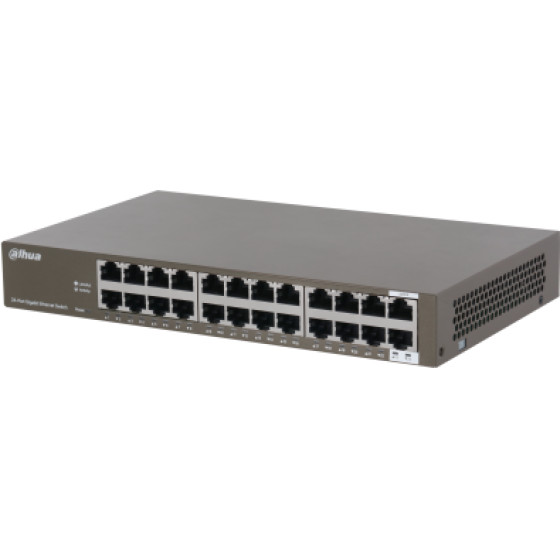

Dahua 24-Port Desktop Gigabit Switch - (DH-SG1024M)

Hardware

Included Power Adapter

Yes

PoE

No

Ethernet Port

22

Ethernet Port Speed

10/100/1000 Mbps

Ethernet Port Uplink Speed

10/100/1000 Mbps

Description of Function Slots

Port 1-22:22 x RJ-45 10/100/1000 Mbps Port 23-24:2 x RJ-45 10/100/1000 Mbps(Uplink)

Power Supply

External power supply: 12 VDC

Operating Temperature

-10 °C to +55 °C (+14 °F to +131 °F)

Operating Humidity

5%-95% (RH), non-condensing

Storage Temperature

-40 °C to +85 °C (-40 °F to +185 °F)

Storage Humidity

5%-95% (RH), non-condensing

Performance

Layer

Layer 2

Management Type

No

Smart Managed Switch

No

MTBF

5.7 years

Switching Capacity

48 Gbps

Packet Forwarding Rate

35.7 Mpps

Packet Buffer Size

2 Mbit

Jumbo Frame

10K Byte

MAC Table Size

8K

Communication Standard

IEEE 802.3; IEEE 802.3u; IEEE 802.3x; IEEE 802.3ab

General

Statics Protection

Air discharge: 8 kV Contact discharge: 6 kV

Lighting Protection

Common mode: 2 kV Differential mode: 1 kV

Net Weight

1.2 kg (2.65 lb)

Gross Weight

1.3 kg (2.67 lb)

Product Dimensions

247 mm x 150 mm x 37 mm (9.72" x 5.91" x 1.46")

Packaging Dimensions

505 mm x 310 mm x 345 mm (19.88" x 12.20" x 13.58")

Casing Material

Metal

Installation

Desktop mount

Certifications

CE



Κατασκευαστής : Dahua
Ports 100/1000 fixed : 24
Part Number : DH-SG1024M
Μεικτό βάρος : 1,3 kg
Καθαρό βάρος : 1,2 kg
EAN Number : 6923172599032
Εγγύηση : 3 έτη
