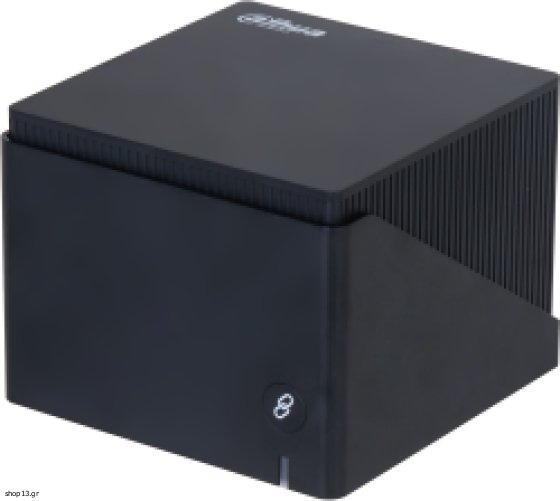

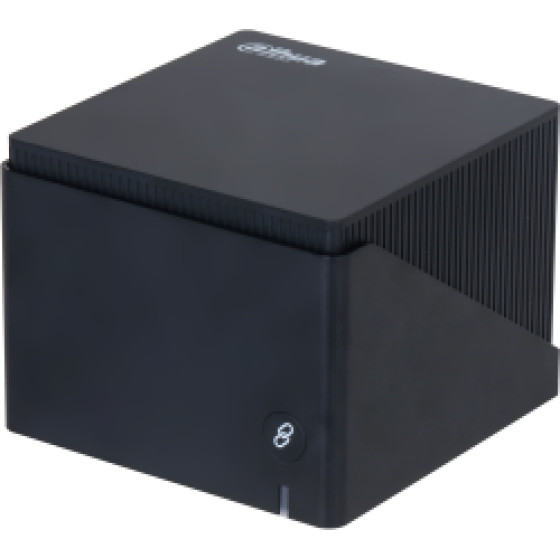

Dahua 11AX 1800MBps Mesh Router - (DH-MAX18-3)

Hardware

Ethernet Ports

1x10/100/1000 Mbps WAN port

2x10/100/1000 Mbps LAN port

Wireless Standard

IEEE 802.11b/g/a/n/ac/ax

Power Supply

12 VDC

Included Power Adapter

Yes

Reset Button

1

Power Consumption

<=12 W

Indicator Light

1 x status indicator

Performance

Terminal Communication Protocol

IEEE 802.3/802.3u/802.3ab@LAN;

IEEE 802.11b/g/a/n/ac/ax @WLAN

Operating Frequency

5.15-5.25 GHz; 5.725 GHz-5.850 GHz;

2.400 GHz-2.483 GHz

Wireless Speed

2.4 GHz Wi-Fi: 574 Mbps;

5 GHz Wi-Fi: 1,201Mbps

Antenna

2xBuilt-in 2.4 GHz Wi-Fi omnidirectional antenna;

2xBuilt-in 5 GHz Wi-Fi omnidirectional antenna

Polarization

Horizontal

Cross-polarization Isolation

2.4 GHz: <=3.5 dBi; 5.8 GHz: <=4.5 dBi

Antenna Gain

2.4 GHz-1: 2.9 dBm;

2.4 GHz-2: 3.52 dBm;

5.8 GHz-1: 3.65 dBm;

5.8 GHz-2: 4.45 dBm

Connected Wireless Terminals

2.4 GHz Wi-Fi: 32;

5 GHz Wi-Fi: 64

WAN Port Connection Mode

Static IP address;

DHCP;

PPPoE

Channel Width

20 MHz

40 MHz

80 MHz

General

Management and Log

Syslog;SSH;NTP

Firmware Update

Web/WiLynk App update

Wireless Certification

CE RED

Security Mechanism

IP/MAC filtering; WAP/WPA2-PSK/WPA3-PSK

Network Protocol

UDP; HTTPS; IPv6; IPv4; TCP/IP; HTTP; NTP; SSL; DHCP

Routing

Static routing

DHCP Server

Enable and disable DHCP Server;

Configure address pool of DHCP Server;

Configure the lease period;

Assign fixed IP addresses to clients

NAT

Port-based NAT configuration

VPN

L2TP; L2TP/IPsec VPN

APN

APN configuration

General

Operating Temperature

-10 °C to +55 °C (+14 °F to +131 °F)

Storage Temperature

-40 °C to +70 °C (-40 °F to +158 °F)

Operating Humidity

5%-95% (RH), non-condensing

Main Body Dimensions

94 mm x 94 mm x 72 mm (3.70" x 3.70" x 2.83")

Gross Weight

1-pack: 0.48 kg (1.06 lb)

3-pack: 1.2 kg (2.65 lb)

Net Weight

1-pack: 0.23 kg (0.51 lb)

3-pack: 0.69 kg (1.52 lb)

Product Dimensions

1-pack: 126.5 mm x 121.5 mm x 155.5 mm (4.98" x 4.78" x 6.10")

3-pack: 451 mm x 128 mm x 106 mm (17.76" x 5.04" x 4.17")

Memory

256 MB

Statics Protection

Air discharge: 8 kV;

Contact discharge: 6 kV

Lighting Protection

Common mode: 2 kV;

Differential mode: 1 kV

Installation

Desktop mount

Packing List

MAX18 (1-pack)

1xDevice

1xPower adapter

1xTwisted pair cable

1xUser manual

1xLaws and regulations manual

MAX18-3 (3-pack)

3xDevices

3xPower adapters

1xTwisted pair cable

1xUser manual

1xLaws and regulations manual



Κατασκευαστής : Dahua
Part Number : DH-MAX18-3
Μεικτό βάρος : 0,4 kg
Καθαρό βάρος : 0,23 kg
EAN Number : 6923172582171
Εγγύηση : 3 έτη
