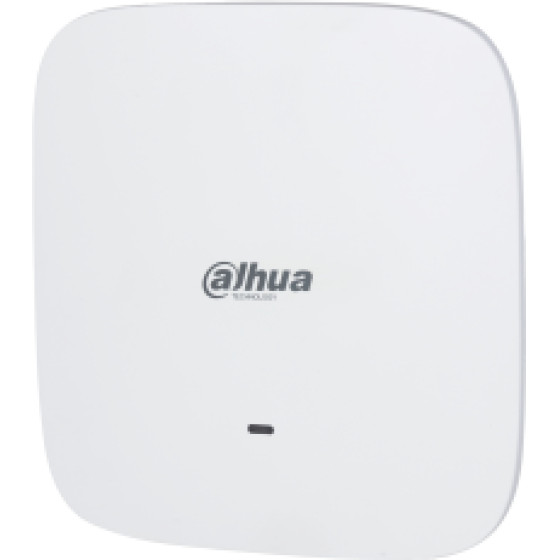

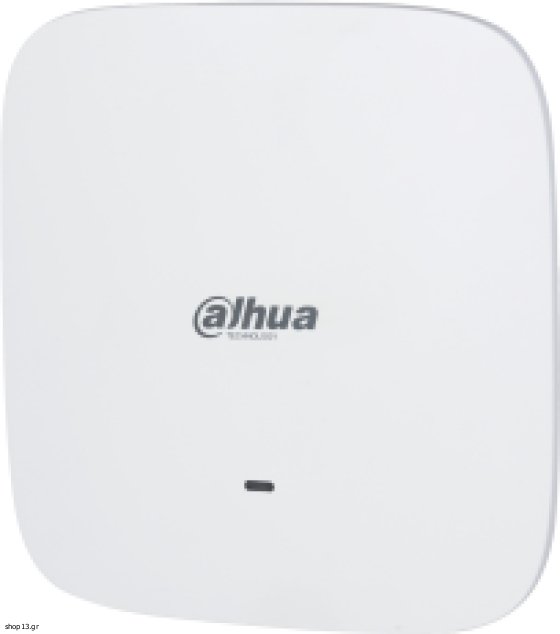

Dahua 11AX 1800MBps Ceiling Ap - (DH-EAP6218-C)
[Κωδικός : 428438]
*Το προϊόν δεν ειναι διαθέσιμο και δεν διατίθεται προς πώληση*
Περιγραφή
Hardware
Function Slots
1 x 10/100/1000 Mbps Base-T RJ-45
1 x 10/100/1000 Mbps Base-T RJ-45 (WAN, PoE)
Power Consumption
Full Load: 15 W
Memory
DDR: 256 MB
Flash: 16 MB
Indicator Light
SYS
WAN/PoE
LAN
Wireless Standard
2.4 GHz: IEEE 802.11b/g/n/ax
5 GHz: IEEE 802.11a/n/ac/ax
Performance
Operating Frequency
2.4 GHz-2.484 GHz
5.150 GHz-5.850GHz
Wireless Transmission Rate
2.4 GHz: 574 Mbps
5 GHz: 1201 Mbps
Channel Width
20/40/80 MHz
Max. Output Power
20 dBm
Antenna Gain
2.4 GHz: 4.6 dBi
5 GHz: 4.0 dBi
Antenna Direction Angle
360°
Optimal Transmission Distance
15 m (49.21 ft)
Function
Operating Mode
FIT AP
FAT AP
Encryption Mode
WPA-PSK/WPA2-PSK
WPA3-PSK
Management and Log
NTP; Syslog
Firmware Update
Web update
AC remote update
Security Mechanism
SSID hiding
MAC authentication
IP-MAC binding
User isolation
Max allowed clients per AP
URL filtering
IP address filtering
MAC address filtering
Network Protocol
HTTP; TCP/IP; IPv4; UDP; NTP; DHCP; DNS; DDNS; QoS; UPnP; ICMP; PPPoE; IP Filter
OFDMA
Yes
MU-MIMO
Yes
DHCP
Yes
NAT
NAT
Port Mapping
DMZ
QoS
IP-based speed limit
DDNS
Yes
Equipment Management
Local WEB management
Software
Independent AP
Configure VLAN based on SSID
Auto channel
Power adjustment
5G Precedence
SSID extender
WiFi Timer
Pass through on VPN connection
Configure information restore/back up
General
Power Supply
12 VDC,1 A
PoE (802.3 af)
Operating Temperature
-20 °C to 45 °C (-4 °F to +113 °F)
Storage Temperature
-40 °C to +70 °C (-40 °F to +158 °F)
Operating Humidity
5%-95% (RH)
Gross Weight
0.75 kg(1.65 lb)
Net Weight
0.41 kg (0.90 lb)
Packaging Dimensions
243 mm x 235 mm x 76 mm
(9.56" x 9.25" x 2.99")(L x W x H)
Product Dimensions
188 mm x 188 mm x 35 mm
(7.40" x 7.40" x 1.38")(L x W x H)
Statics Protection
Air discharge: 8 kV
Contact discharge: 6 kV
Lighting Protection
Common mode: 2 kV
Differential mode: 0.5 kV
Installation
In-ceiling mount
Certifications
CE
FCC
Κατασκευαστής : Dahua
Part Number : DH-EAP6218-C
Μεικτό βάρος : 0,75 kg
Καθαρό βάρος : 0,41 kg
EAN Number : 6923172522221
Εγγύηση : 3 έτη
