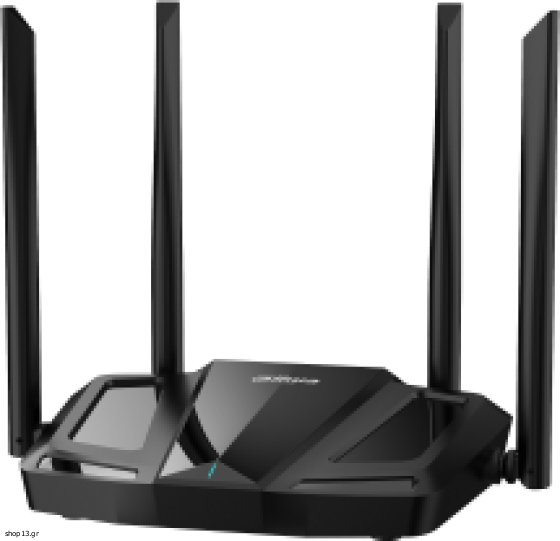

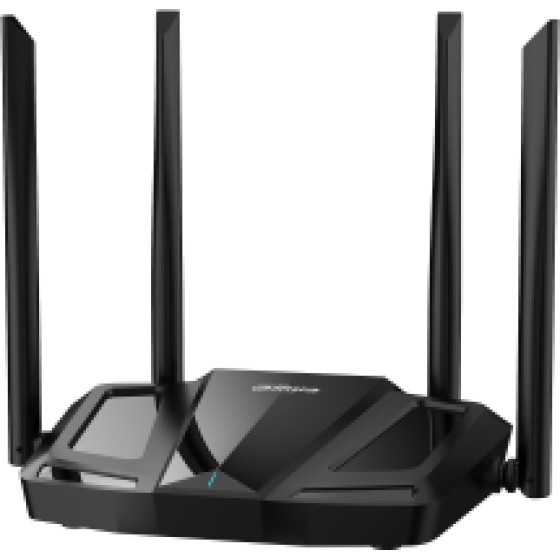

Dahua 11AC 1200MBps Wireless Router - (DH-AC12)

Hardware

External Port

1x10/100/1000 Mbps(WAN)

3x10/100/1000 Mbps(LAN)

Power Consumption

<12 W

Memory

64 MB RAM

Indicator Light

PWR

Wireless Standard

2.4 GHz: 802.11 b/g/n

5 GHz: 802.11 a/b/g/n/ac

Performance

Operating Frequency

2.412 GHz-2.484 GHz

5.150 GHz-5.850 GHz

Wireless Transmission Rate

2.4 GHz: 300 Mbps

5 GHz: 867 Mbps

Channel Width

20/40/80 MHz

Max. Output Power

20 dBm ± 2 dBm

Antenna Gain

2.4 GHz: 5 dBi (±0.5)

5 GHz: 5dBi (±0.5)

Receiver Sensitivity

5GHz

11ac VHT80_MCS0: -89dbm

11ac VHT80_MCS9:-62dbm

2.4GHz

11n HT20_MCS0: -95dbm

11n HT20_MCS7: -75dbm

11n HT40_MCS0: -92dbm

11n HT40_MCS7: -72dbm

Channel

2.4 GHz: 1-13

5 GHz: 36/40/44/48,52/56/60/64,149/151/153/157/161/165

Connected Wireless Terminals

2.4 GHz: 32

5 GHz: 32

Function

Encryption Mode

WPA

WPA2

Firmware Update

Web/WiLynk App update

OFDMA

Yes

MU-MIMO

2x2

DHCP

Yes

NAT

Mapping based on port

VPN

L2TP

PPTP

QoS

Yes

DDNS

Yes

Parental Controls

Yes

Equipment Management

Yes

General

Power Supply

12 VDC,1A

Operating Temperature

0 °C to 40 °C (32 °F to 104 °F)

Storage Temperature

20 °C to +70 °C (-4 °F to 158 °F)

Operating Humidity

0%-90% (RH), non-condensing

Net Weight

0.31 kg (0.68 lb)

Packaging Dimensions

300 mm x 260 mm x 70 mm (11.81" x 10.24" x 2.76")(L x W x H)

Product Dimensions

222 mm x 147.4 mm x 188.4 mm (8.74" x 5.80" x 7.42")(L x W x H)

Statics Protection

Air discharge: 8 kV

Contact discharge: 6 kV

Lighting Protection

Common mode: 2 kV

Differential mode: 0.5 kV

Installation

Desktop mount; wall mount

Packing List

1 x Device

1 x Power adapter

1 x Ethernet cable

1 x Quick Start Guide

1 x Legal and Regulatory Information



Κατασκευαστής : Dahua
Part Number : DH-AC12
Μεικτό βάρος : 0,52 kg
Καθαρό βάρος : 0,31 kg
EAN Number : 6923172557315
Εγγύηση : 3 έτη
