Περιγραφή
Design
Antenna design: External
Antenna: Yes
Antenna direction type: Omni-directional
Antenna gain level (max): 5 dBi
Component for: PC
Internal: Yes
Operational conditions
Operating temperature (T-T): 0 - 70 °C
Operating relative humidity (H-H): 10 - 90%
Storage relative humidity (H-H): 5 - 90%
Storage temperature (T-T): -10 - 80 °C
Weight & dimensions
Height: 1.6 mm
Width: 65 mm
Depth: 44.5 mm
Network
Wi-Fi band: Tri-band (2.4 GHz / 5 GHz / 6 GHz)
Bluetooth version: 5.2
Networking standards: IEEE 802.11a, IEEE 802.11ax, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11b
Wi-Fi standards: 802.11b, 802.11a, Wi-Fi 6 (802.11ax), 802.11g, Wi-Fi 5 (802.11ac), Wi-Fi 4 (802.11n)
Spread spectrum method: OFDMA
LAN controller: Intel AX210
Bluetooth: Yes
WLAN data transfer rates supported: 574, 2402
Maximum data transfer rate: 2400 Mbit/s
Security algorithms: WPA3
Wi-Fi: Yes
System requirements
Windows operating systems supported: Windows 10, Windows 11

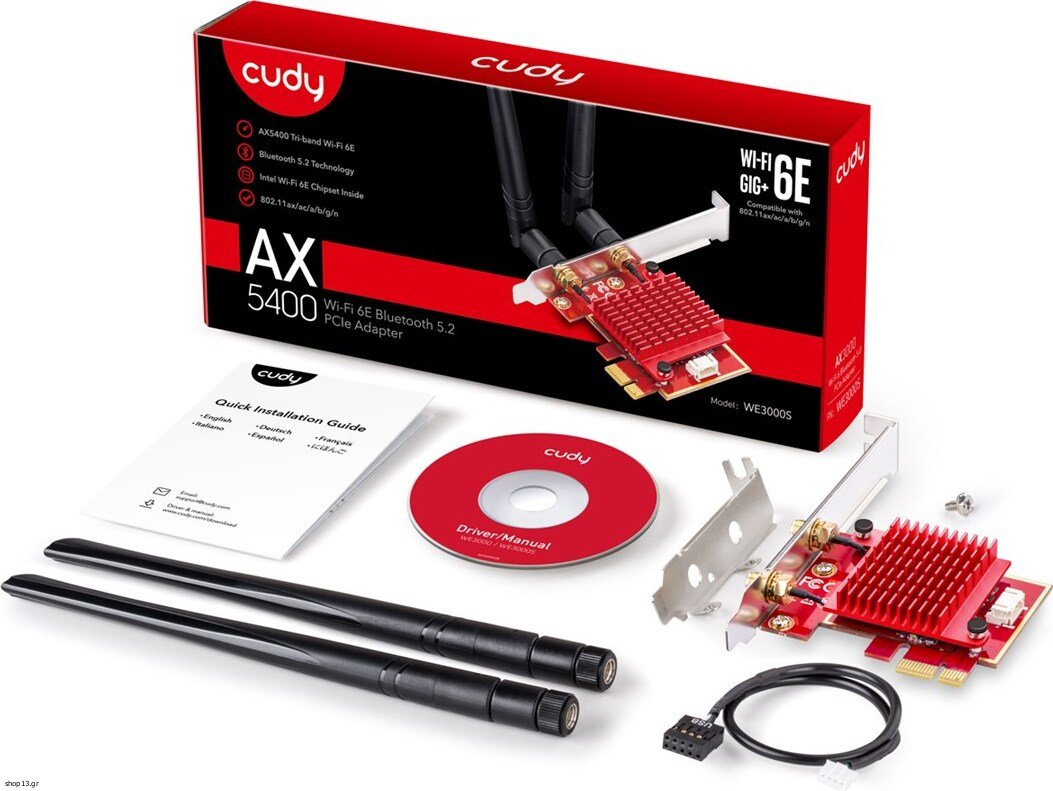

Packaging content
Bluetooth header cable: Yes
Mounting brackets included: Yes
Resource CD: Yes
Quick installation guide: Yes
Ports & interfaces
Host interface: PCI Express
Interface: WLAN / Bluetooth
PCI Card form factor: Full-height (low-profile)
Connectivity technology: Wireless
Other features

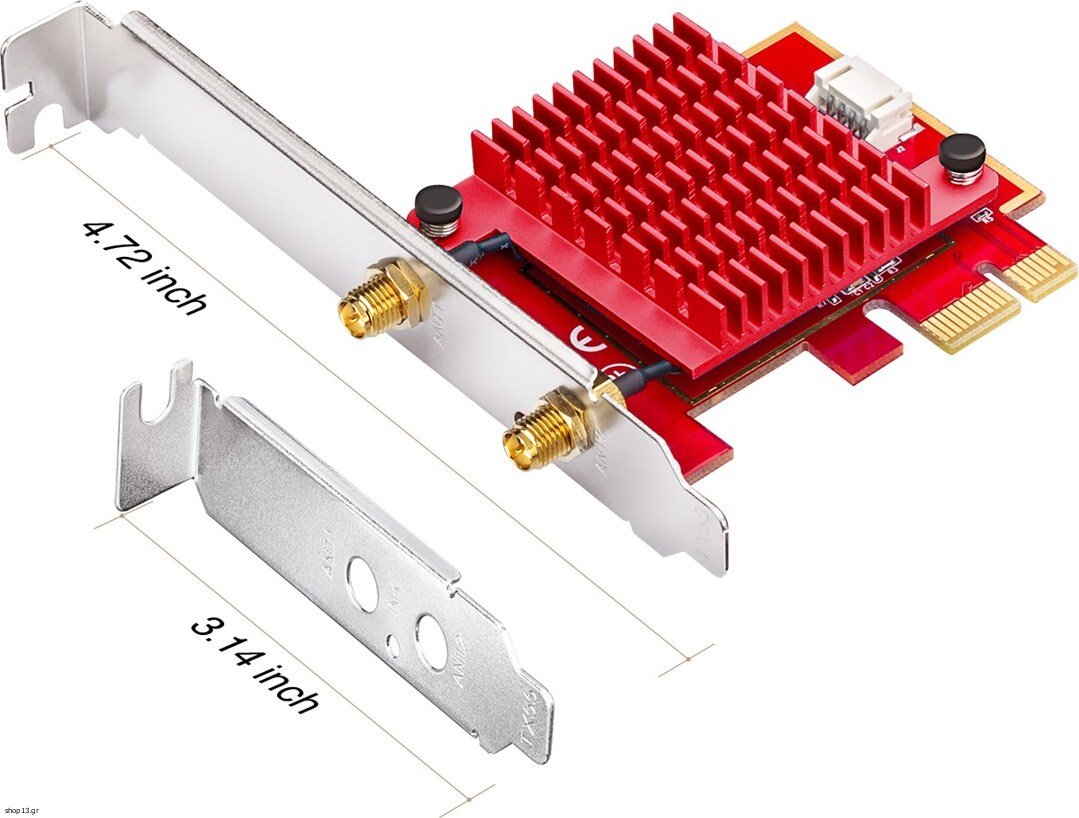

Bracket height: Low-Profile (LP) / Full-Height (FH)
Safety warning
Warnings: Avoid contact with liquids. If spilled, the product may be damaged., Please observe local regulations regarding the disposal of electronic waste., The product contains electronic components and should not be disposed of in the regular rubbish bin.
Warranty: warranty 24 months
