Περιγραφή
A 5G WiFi 6 router employing the 3GPP Release 16 standard, with a max 3.4 Gbps download speed. It features dual Qualcomm chipsets, one SIM slot, and a high-capacity AX3000 WiFi 6.
o 5G Rel. 16 with Max 3.4 Gbps DL
o UL/DL 4CA, 4x4 MIMO
o 4-Stream Dual-Band Wi-Fi 6
o 2402 Mbps + 574 Mbps Wi-Fi 1
o 3x Gigabit Ethernet Ports
o 1x Nano SIM Slot
o Cudy Mesh, VPN Server and Client
o Cudy App, Cloud Control
CPU
Chipset
IPQ5018
CPU Details
1.0 GHz Dual-core, ARM Cortex-A53
Memory/Storage
Flash/ROM
128 MB (1 Gbit) NAND
DDR/RAM
512 MB (4 Gbit) DDR3
Cellular
Cellular Standards
5G Rel. 16
DL 4G Cat. 19 / UL 4G Cat. 18
Cellular Antennas
6x Internal, 2x SMA Connectors for Customized Antennas
Detachable Cellular Antennas Connector
SMA Female
SIM Options
1x Nano SIM Slot, eSIM (optional)
Available Versions
EU
EU Version Cellular
Suitable Region
Europe, Middle East, Africa, Asia-Pacific (Exc. JP, CN), Brazil
Max DL Speed
3.4 Gbps (NSA), 2.4 Gbps (SA)
Max UL Speed
550 Mbps (NSA), 900 Mbps (SA)
Advanced
DL/UL 4CA, DL 4x4, UL 2x2 MIMO
Cellular Bands
5G Sub 6 GHz: n1/3/5/7/8/20/28/38/40/41/71/75/76/77/78
LTE-FDD: B1/3/5/7/8/20/28/32/71
LTE-TDD: B38/40/41/42/43/71
WCDMA: B1/5/8
Wireless
5 GHz Wi-Fi Speed
2402 Mbps
2.4 GHz Wi-Fi Speed
574 Mbps
5 GHz Wi-Fi Streams
2T2R (2x2 MIMO)
2.4 GHz Wi-Fi Streams
2T2R (2x2 MIMO)
Wi-Fi Antennas
Internal
5 GHz Antenna Gain Max
6.78 dBi
2.4 GHz Antenna Gain Max
4.19 dBi
Beamforming
TRUE
FEM or PA/LNA
5 GHz: 2x External
2.4 GHz: 2x External
Range Performance
Max: 170 m (558 ft)
Indoor WiFi range varies depending on the layout and wall materials. See Wall Performance spec for placement suggestions.
Wall Performance
Two wooden walls with thickness < 10 cm (4)
One concrete wall with thickness < 20 cm (7)
Interfaces
Physical Buttons
WPS Button
Reset Button

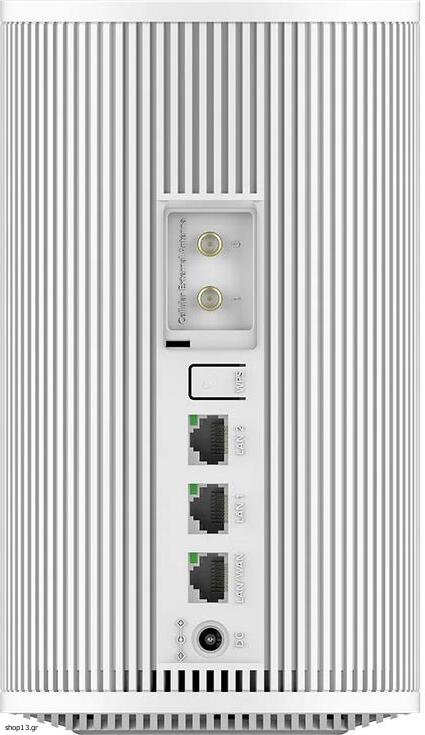

Gigabit RJ45 Ports
3
Ethernet Notes
One port supports WAN/LAN configuration, and the rest are LAN ports
LED
Power
Internet
Wi-Fi
Cellular
Power Input
DC Jack
Power
Power Methods
DC
DC
12V 2.5A
Power Adapter
Input: 100 ~ 240 V, 50/60 Hz AC
Output: 12V 2.5A DC
Max Power Consumption (W)
21.7W
Wireless
Wi-Fi Standards
Wi-Fi 6
Max Wi-Fi Modulation
1024-QAM
Wi-Fi Efficiency
OFDMA
MU-MIMO
BSS Color
Max Capacity
256
Recommended Client Upper Limit
100
Max Wi-Fi Channel Width
160 MHz
Wi-Fi Security
WPA/WPA2/WPA3
Guest Network
2.4 GHz, 5 GHz
WPS
TRUE
General
Operation Modes
Cellular Router
Wi-Fi Router
Mesh
Cudy Mesh Main
Mesh Backhaul
Wireless Backhaul
Wired Backhaul
Cellular APN
Band Select (Band Lock)
Cellular Mode Select
Data Roaming
APN Profile
Manual APN Profile
MBN
MTU Value
Cellular Mode
5G NSA Only
5G SA Only
4G Only
3G Only
Auto
WAN Mode
DHCP
Static IP
PPPOE
L2TP
PPTP
Internet Failover Sequence
WAN
Cellular
Network
QoS
Per-User Rate Limiting
DHCP
Address Reservation
DHCP Client List
Server
IP Versions
IPv4/IPv6
IPv6 Protocols
Relay
Dynamic (SLAAC/DHCPv6)
Static (Fixed IP)
Passthrough
464XLAT
MAP-E
DS-Lite
IPTV/VLAN
Bridge
Tag VLAN
TTL Customization
Extend
Spoof
Custom
IGMP
IGMP Proxy
IGMP Snooping
Forwarding
Port Forwarding
Port Triggering
UPnP
DMZ
Firewall
SPI Firewall
DoS Protection
Block PING
Application Layer Gateway
IPSec Passthrough
L2TP Passthrough
PPTP Passthrough
FTP Passthrough
TFTP Passthrough
H323 Passthrough
SIP Passthrough
RTSP Passthrough
Utilities
VPN Server
WireGuard
OpenVPN
IPsec
Zerotier
PPTP
L2TP
VPN Client
WireGuard
OpenVPN
IPsec
Zerotier
PPTP
L2TP
DNS Options
DNS over TLS
Manual DNS
Rebind Protection
Override Clients DNS
DNS over TLS Providers
Cloudflare
Google
Quad9
Custom
Wake on LAN
TRUE
Online Detection
TRUE
Management
All Devices Management
Wi-Fi Time Schedule
MAC Filter
IP/MAC Binding
Per-Devices Management
Internet On/Off
VPN On/Off
Online Time Schedule
Device Rename
Content Management
Domain Filter
IP Filter
System
LED Control
TRUE
Local Control Method
Config Web Page
App Control
Remote Control Method
Config Page via HTTPS
App Control
TR069/TR098/TR111/TR181
Firmware Upgrade
Local Update
App (Over the Air)
Online Update
Diagnostic Tools
Diagnosis
Ping
Traceroute
NSLookup
System Log
ΛΕΙΤΟΥΡΓΙΑ MESH
ΝΑΙ
ΣΥΧΝΟΤΗΤΑ
DUAL BAND (2.4 + 5 GHz)
ΥΠΟΣΤΗΡΙΞΗ POE
ΟΧΙ
ΕΙΔΟΣ
5G LTE ROUTER
ΡΥΘΜΟΣ ΜΕΤΑΔΟΣΗΣ ΔΕΔΟΜΕΝΩΝ
AX3000Mbps
ΚΕΡΑΙΑ
ΟΧΙ
