Περιγραφή

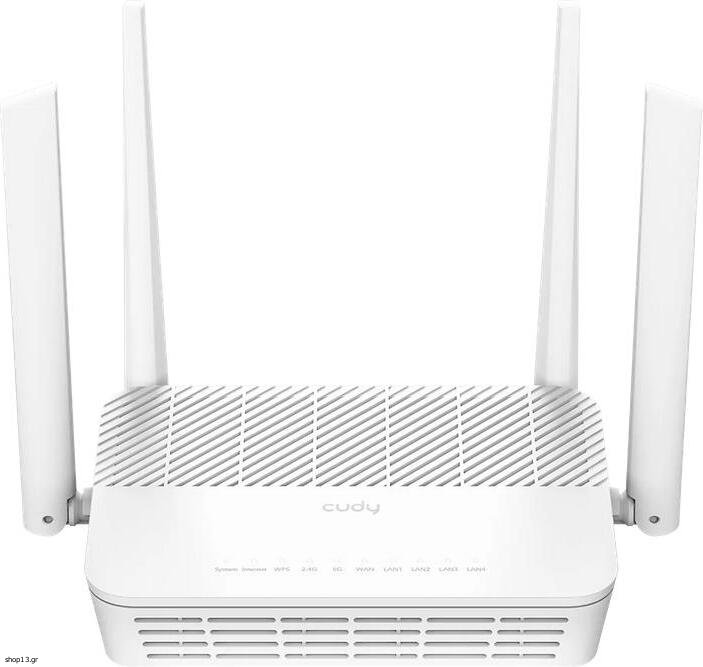

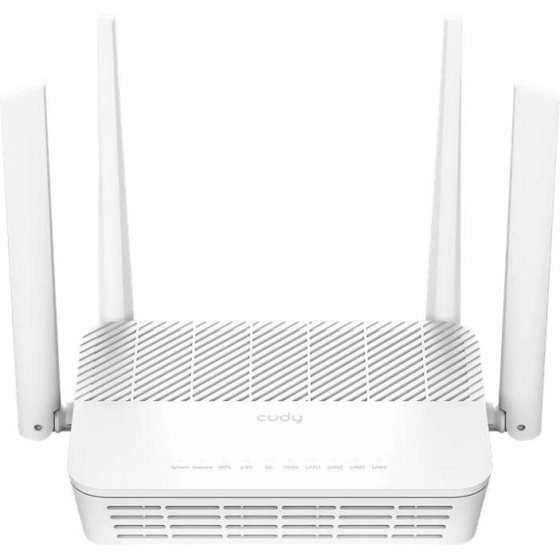

A PoE-powered WiFi 6 router with 2.5 Gbps internet connectivity, ideal for connecting a large number of devices and reducing latency. It features a USB ports, enabling fire sharing or third-party device powering.
o 1.3 GHz Dual-Core CPU
o 512 MB RAM
o 4-Stream Dual-Band Wi-Fi 6
o 2402 Mbps + 574 Mbps Wi-Fi 1
o 1x 2.5GbE and 4x GbE
o 1x USB 2.0
o 802.3at/af, Passive PoE, DC
o Covers 130 m² (1,400 ft²) 2
o 200 Connected Devices 3
o Cudy App, Cloud Control
CPU
Chipset
MT7981
CPU Details
1.3 GHz Dual-Core, ARM Cortex-A53
Memory/Storage
Flash/ROM
128 MB (1 Gbit) NAND
DDR/RAM
512 MB (4 Gbit) DDR4
Wireless
5 GHz Wi-Fi Speed
2402 Mbps
2.4 GHz Wi-Fi Speed
574 Mbps
5 GHz Wi-Fi Streams
2T2R (2x2 MIMO) with an Extra Stream
2.4 GHz Wi-Fi Streams
2T2R (2x2 MIMO)
Wi-Fi Antennas
4x Fixed
5 GHz Antenna Gain Max
5.3dBi
2.4 GHz Antenna Gain Max
5.3dBi
FEM or PA/LNA
5 GHz: 3x Internal
2.4 GHz: 2x Internal
Beamforming
TRUE
Range Performance
Max: 220 m (722 ft)
Indoor WiFi range varies depending on the layout and wall materials. See Wall Performance spec for placement suggestions.
Wall Performance
Two wooden walls with thickness < 10 cm (4)
One concrete wall with thickness < 20 cm (7) or two concrete walls with thickness < 10 cm (4)

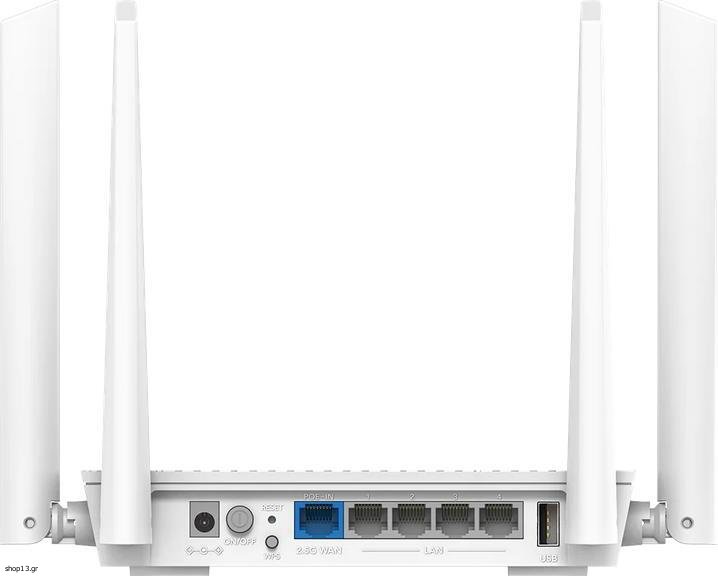

Interfaces
2.5G RJ45 Ports
1
Gigabit RJ45 Ports
4
Ethernet Notes
The 2.5G port is WAN port and accepts PoE powering, the Gigabit ports are LAN ports
USB-A 2.0 Ports
1
LED
System
Internet
2.4 GHz Wi-Fi
5 GHz Wi-Fi
WAN
LAN
USB
Physical Buttons
Power On/Off Button
WPS Button
Reset Button
Power Input
DC Jack
PoE via Ethernet Port
Power
Power Methods
DC
802.3at/af PoE
Passive PoE
DC
12V 1.5A
Passive PoE
48~57V
Power Adapter
Input: 100 ~ 240 V, 50/60 Hz AC
Output: 12V 1.5A DC
Max Power Consumption (W)
11.5w
Idle Power Consumption (W)
4.2w

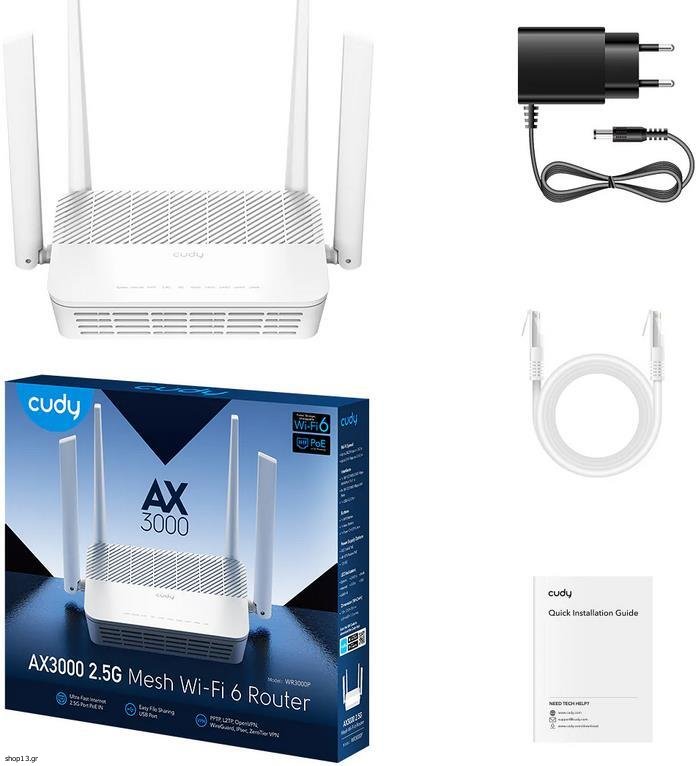

Package Content
WR3000P
Power Adapter
Ethernet Cable
Installation Guide
Wireless
Wi-Fi Standards
Wi-Fi 6
Max Wi-Fi Modulation
1024-QAM
Wi-Fi Efficiency
OFDMA
MU-MIMO
BSS Color
Max Capacity
512
Recommended Client Upper Limit
200
Max Wi-Fi Channel Width
160 MHz
Wi-Fi Security
WPA/WPA2/WPA3
Guest Network
2.4 GHz, 5 GHz
WPS
TRUE
General
Operation Modes
Wi-Fi Router
Access Point
Range Extender
WISP
Client
Mesh
Cudy Mesh
Mesh Backhaul
Wireless Backhaul
Wired Backhaul
Multi-Band Backhaul
TRUE
WAN Mode
DHCP
Static IP
PPPOE
PPTP
L2TP
Internet Failover Sequence
WAN
WISP
Network
QoS
Per-User Rate Limiting
DHCP
Address Reservation
DHCP Client List
Server
IP Versions
IPv4/IPv6
IPv6 Protocols
Relay
Dynamic (SLAAC/DHCPv6)
Static (Fixed IP)
Passthrough
464XLAT
MAP-E
DS-Lite
IPTV/VLAN
Bridge
Tag VLAN
VoIP VLAN
IPTV VLAN
TTL Customization
Extend
Spoof
Custom
IGMP
IGMP Proxy
IGMP Snooping
ΛΕΙΤΟΥΡΓΙΑ MESH
ΝΑΙ
ΣΥΧΝΟΤΗΤΑ
DUAL BAND (2.4 + 5 GHz)
ΥΠΟΣΤΗΡΙΞΗ POE
ΝΑΙ
ΕΙΔΟΣ
AP/ROUTER
ΡΥΘΜΟΣ ΜΕΤΑΔΟΣΗΣ ΔΕΔΟΜΕΝΩΝ
AX3000Mbps
ΚΕΡΑΙΑ
ΜΗ ΑΠΟΣΠΩΜΕΝΗ
