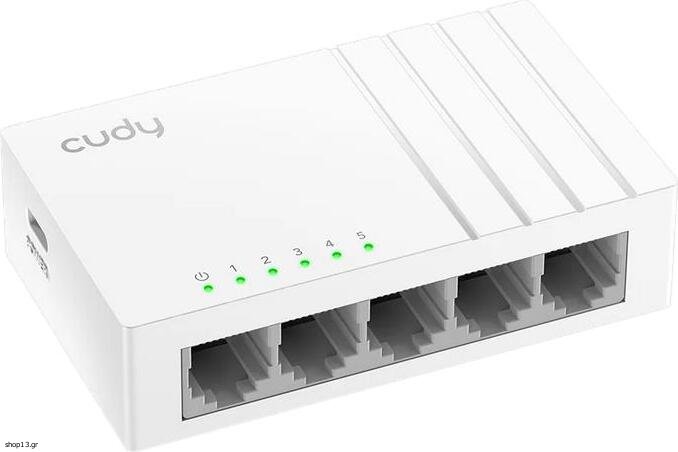

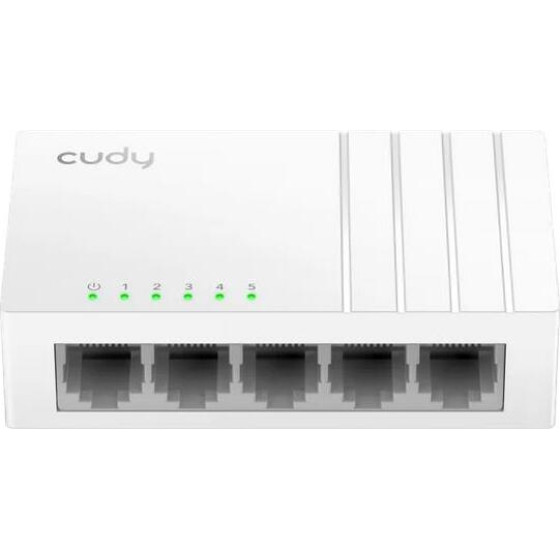

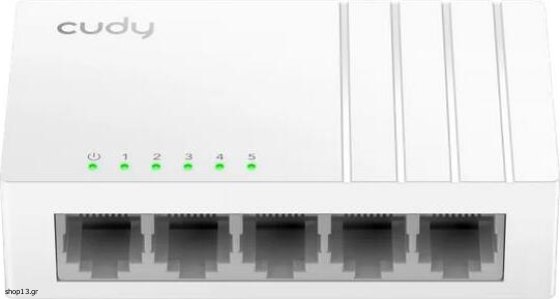

Cudy 5-Port Gigabit Splitter With Usb C - (GS105U)

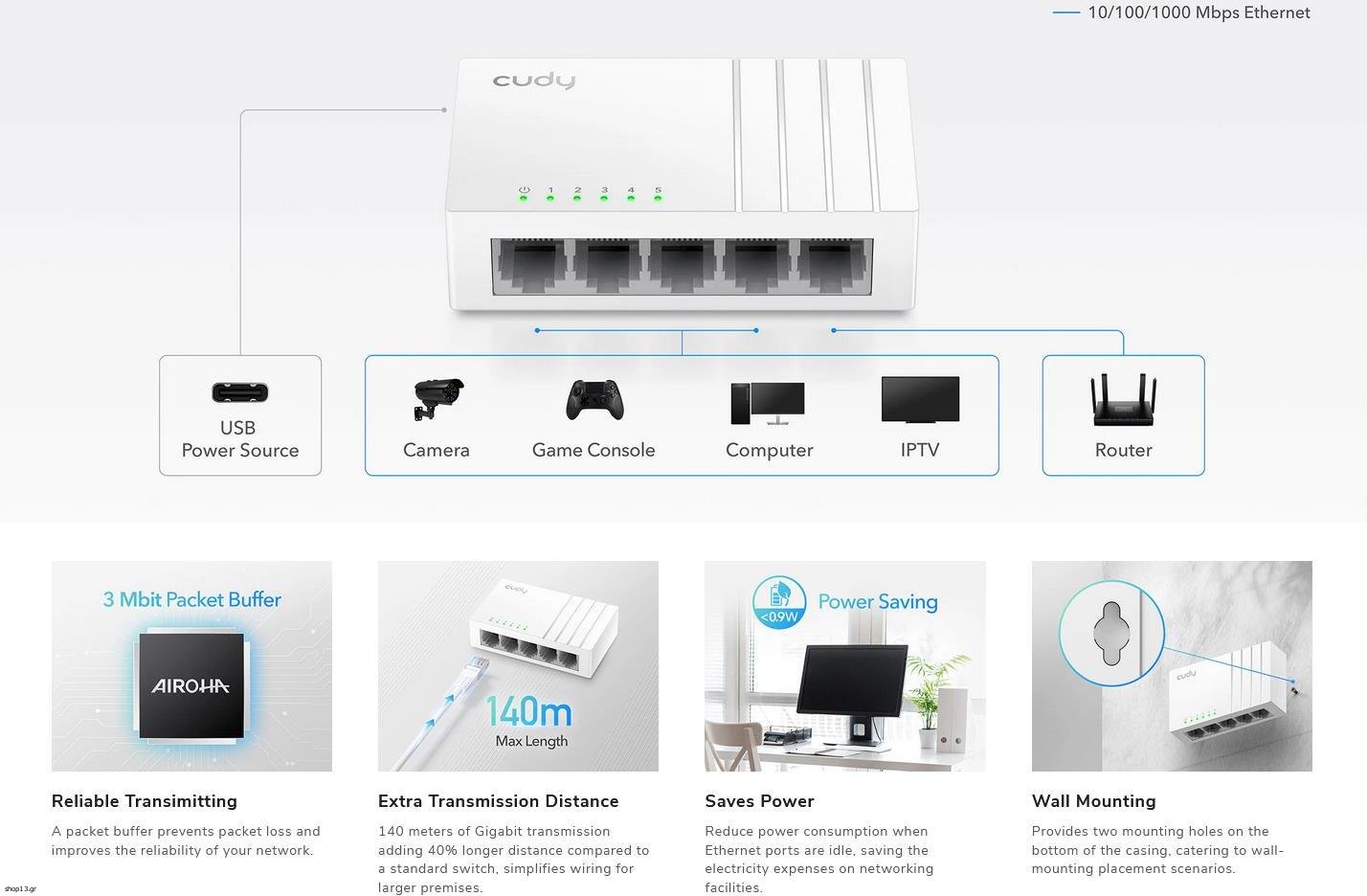

An Ethernet switch powered by USB-C, ideal for sharing a wired network on a desktop.
o Powering via USB-C
o 5x Gigabit Ethernet Ports
o 3 Mbit Packet Buffer
o Max 2W, Idle 1.4W
o Desktop, Wall-Mount

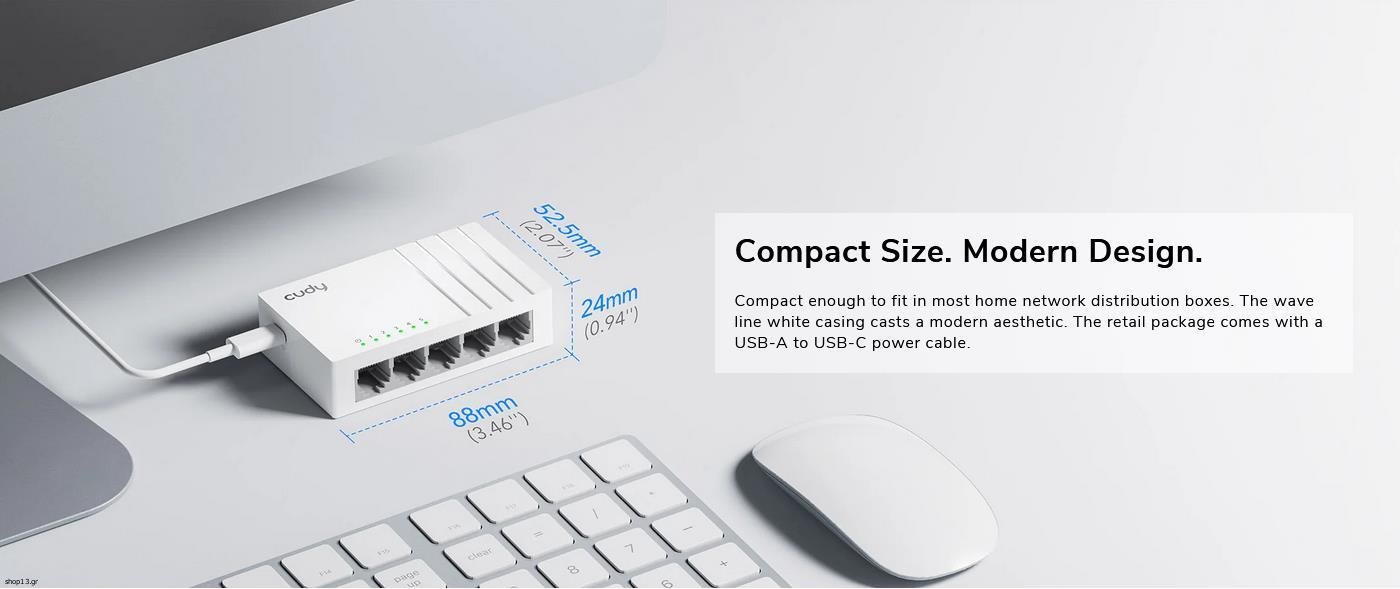

o 88x52.5x24 mm (3.46x2.07x0.94?)
Interfaces
Gigabit RJ45 Ports
5
LED
Power
Speed/Link/ACT of Each Ethernet Port
Power Input
USB-C Port
Performance
Copper Speed and Distance
Cat. 3 or higher cable: 100 meters at 10 Mbps
Cat. 5 or higher cable: 100 meters at 100 Mbps
Cat. 5e or higher cable: 140 meters at Gigabit
MAC Address Table
2048
Max Switching Capacity
10 Gbps
Max Forwarding Rate
7.44 Mpps
Jumbo Frame
15 KB
Packet Buffer
3 Mbit
Power
Basic Power Saving
TRUE
Power Methods
DC via USB-C Jack
DC
5V?0.55A
Power Adapter
Input: 100-240V~, 50/60Hz
Output: 5V?0.55A
Max Power Consumption
2W
Idle Power Consumption
1.4W
Switching
802.3 Protocols
802.3x Flow Control
802.3i 10BASE-T
802.3u 100BASE-TX
802.3ab 1000BASE-T
Reliability
EMS
IEC/EN 61000-4-2, Level 2 ESD: Contact: 4kV; Air: 8kV
IEC/EN 61000-4-5, Level 3 Surge: 2kV
Environment
Operating Temperature: 0 °C ~ 40 °C (32 °F ~104 °F)
Storage Temperature: -40 °C ~ 70 °C (-40 °F ~ 158 °F)
Operating Humidity: 10% ~ 90% non-condensing
Storage Humidity: 5% ~ 90% non-condensing
Mechanical
Dimension
88x52.5x24 mm
3.46x2.07x0.94 inches
Product Weight
53 g (1.87 oz.)
Casing Material
Plastic
Installation
Desktop
Wall-mount
Package Content
GS105U
Installation Guide
USB-A to USB-C Power Cable
PORTS
5
ΤΑΧΥΤΗΤΑ
1Gbps
ΤΥΠΟΣ SWITCH
DESKTOP LIGHT MANAGED
