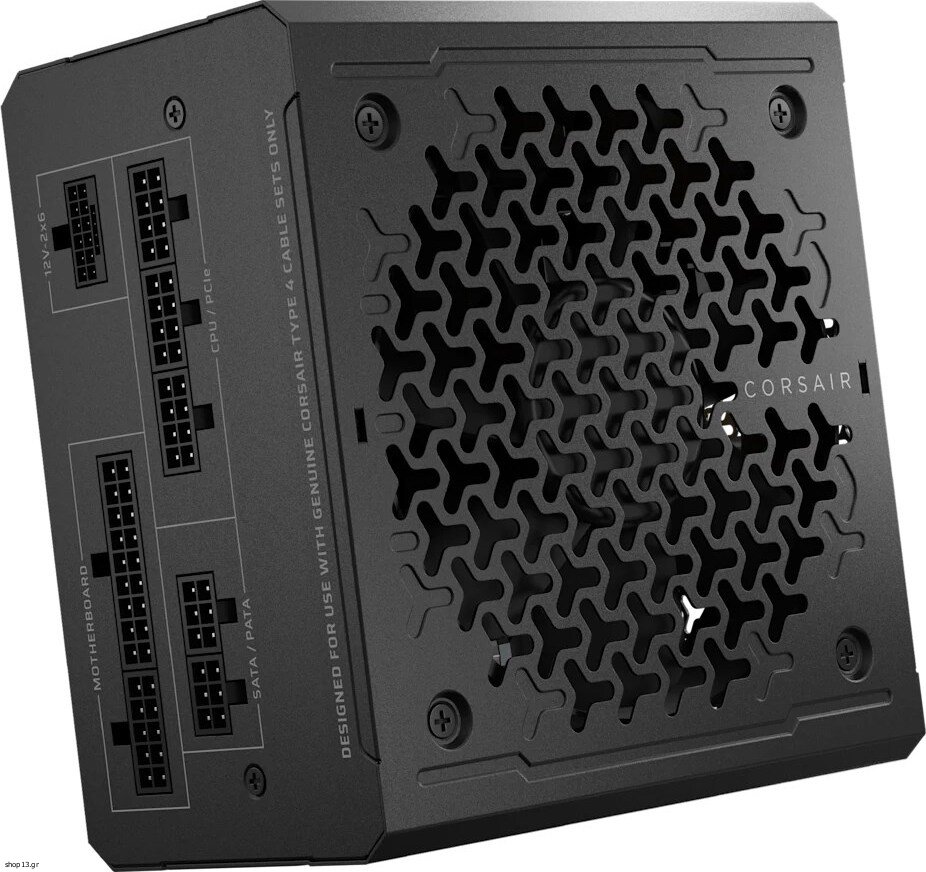

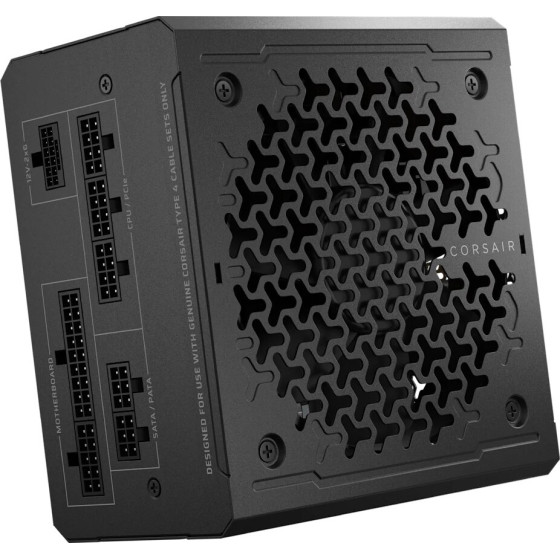

Corsair RMe Series RM850e power supply unit 850 W 24-pin ATX ATX Black - (CP-9020296-EU)

Design
Product colour: Black

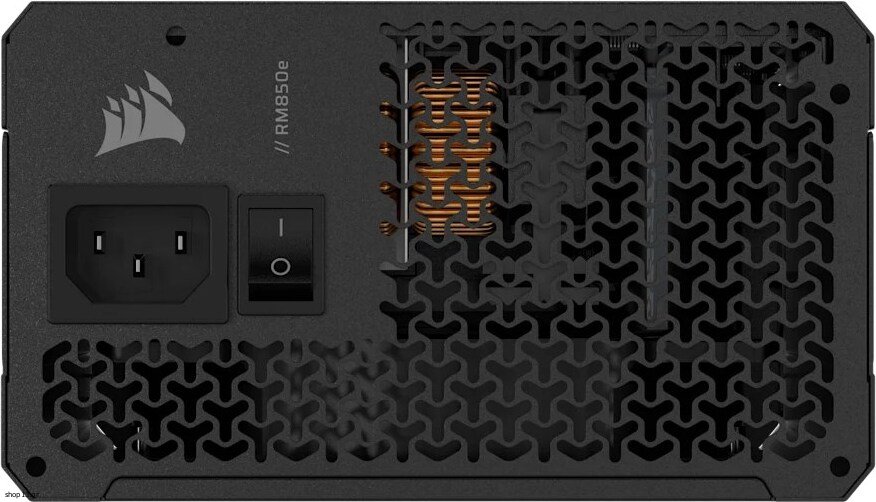

On/off switch: Yes
Cooling type: Active
Fan diameter: 12 cm
Fan location: Front
Number of fans: 1 fan(s)

Power
AC input frequency: 47 - 63 Hz
Combined power (+12V): 850 W
Max output current (+3.3V): 20 A
Max output current (+5Vsb): 3 A
AC input voltage: 100 - 240 V
Combined power (+5Vsb): 15 W
Max output current (+12V): 62.5 A
Input current: 10 - 5 A
Total power: 850 W
Max output current (+5V): 20 A
Combined power (+5V): 150 W
Combined power (+3.3V): 150 W

Weight & dimensions
Height: 140 mm
Depth: 86 mm
Weight: 2.93 kg
Width: 150 mm

Performance
Bearing technology: Rifle
Purpose: PC
Power supply unit (PSU) form factor: ATX
ATX version: 3.1
80 PLUS certification: 80 PLUS Gold
Mean time between failures (MTBF): 100000 h

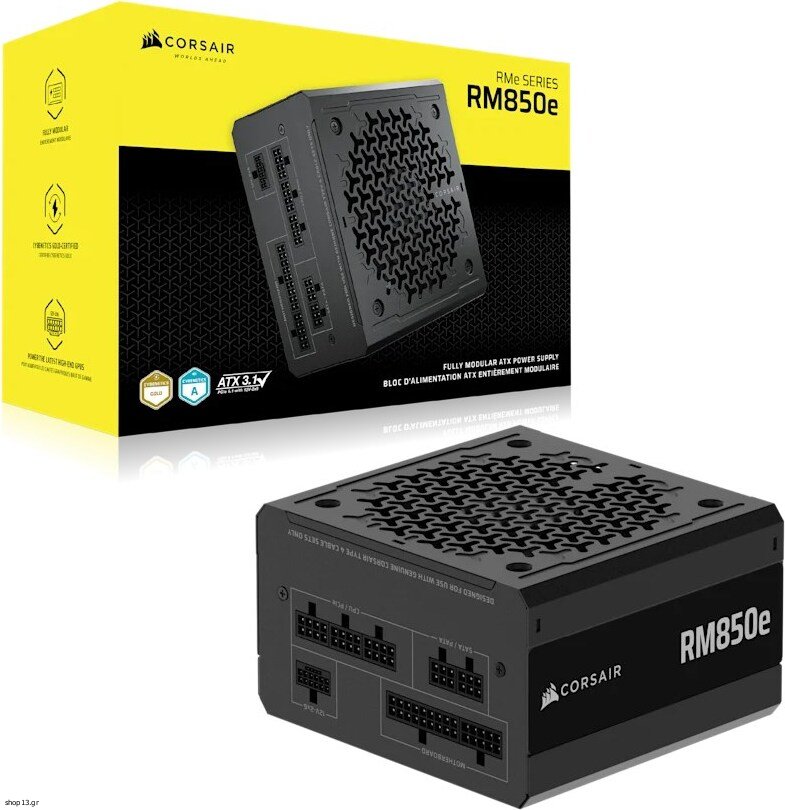

Packaging data
Package type: Box

Certificates
Compliance certificates: RoHS, CE, UKCA

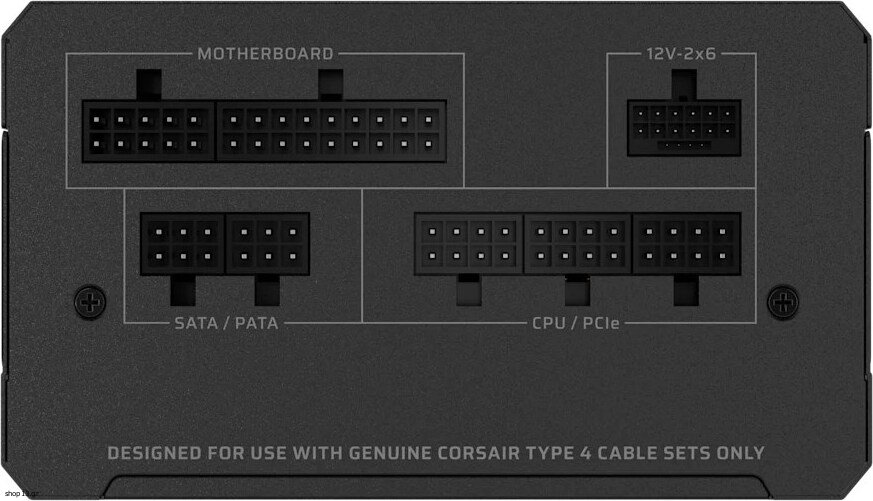

Ports & interfaces
Number of PATA power connectors: 2
PCI Express power connectors (6+2 pin): 2
Number of SATA power connectors: 6
Cabling type: Fully-Modular
PCI Express connector: Yes
EPS power connector (4+4 pin): Yes
Motherboard power connector: 24-pin ATX
PCI Express power connectors (12+4 pin): 1


Warranty: warranty 24 months
