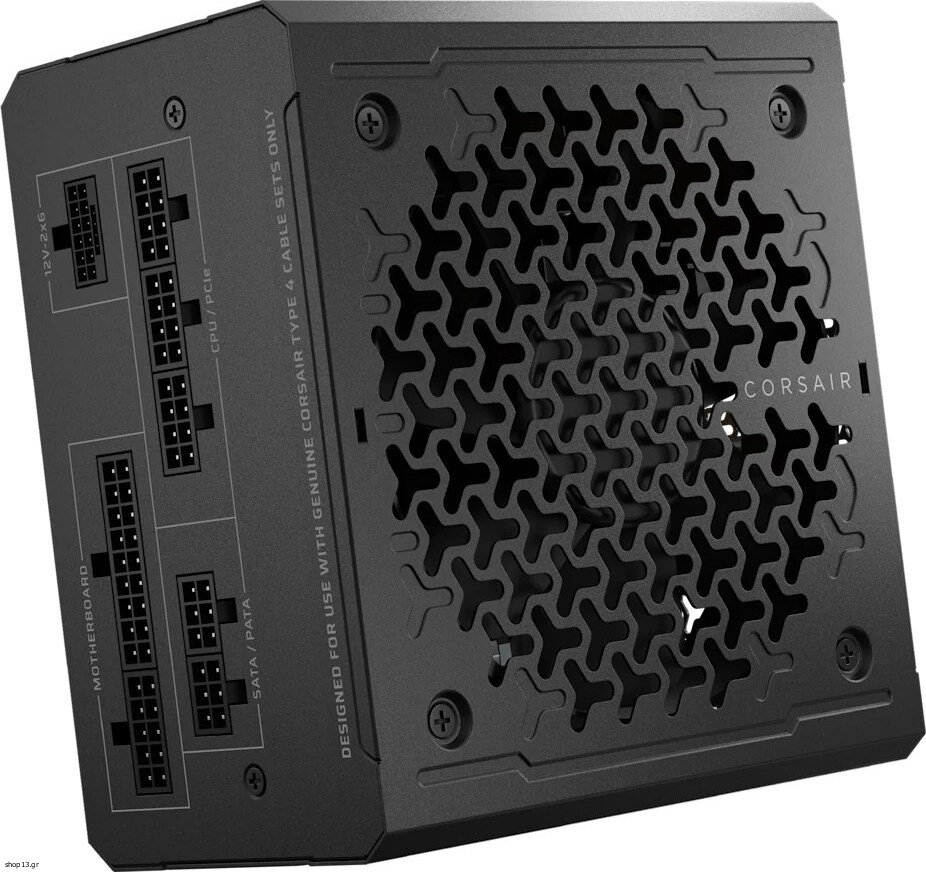

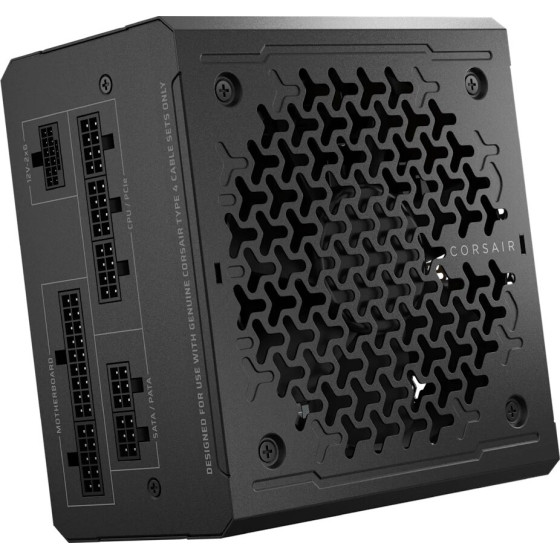

Corsair Rme Series RM750e Power Supply Unit 750 W 24-Pin Atx Atx Black - (CP-9020295-EU)

Design
On/off switch: Yes
Fan diameter: 12 cm
Fan location: Front
Product colour: Black
Cooling type: Active
Number of fans: 1 fan(s)

Power
AC input frequency: 47 - 63 Hz
Max output current (+5V): 20 A
Combined power (+5Vsb): 15 W
AC input voltage: 100 - 240 V
Total power: 750 W
Input current: 10 - 5 A
Max output current (+5Vsb): 3 A
Combined power (+5V): 110 W
Max output current (+3.3V): 20 A
Combined power (+12V): 750 W
Combined power (+3.3V): 110 W
Max output current (+12V): 54.2 A

Weight & dimensions
Depth: 86 mm
Weight: 2.9 kg
Width: 140 mm
Height: 150 mm

Performance
80 PLUS certification: 80 PLUS Gold
Mean time between failures (MTBF): 100000 h
ATX version: 3.1
Power supply unit (PSU) form factor: ATX
Bearing technology: Rifle
Purpose: PC

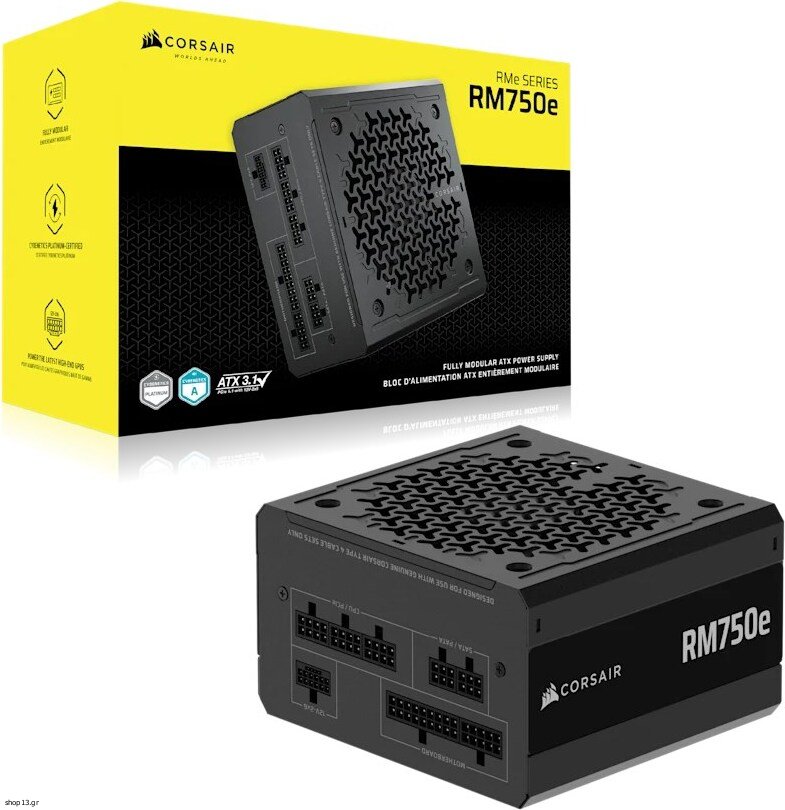

Packaging data
Package type: Box

Certificates
Compliance certificates: RoHS, CE, UKCA

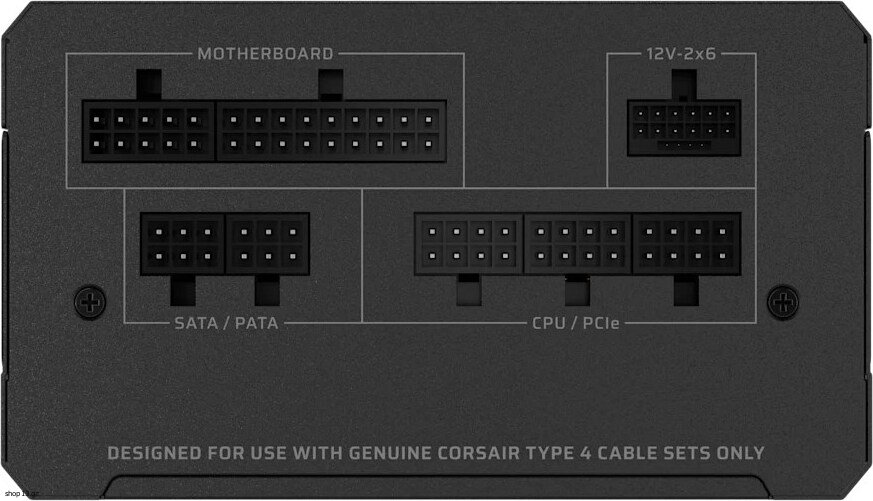

Ports & interfaces
ATX Power connector (24-pin): Yes
Cabling type: Fully-Modular
ATX power connector (12+4 pin): Yes
Motherboard power connector: 24-pin ATX
PCI Express power connectors (6+2 pin): 2
PCI Express connector: Yes
Number of SATA power connectors: 6
CPU power connector (4+4 pin): Yes
Number of PATA power connectors: 2


Warranty: warranty 24 months
