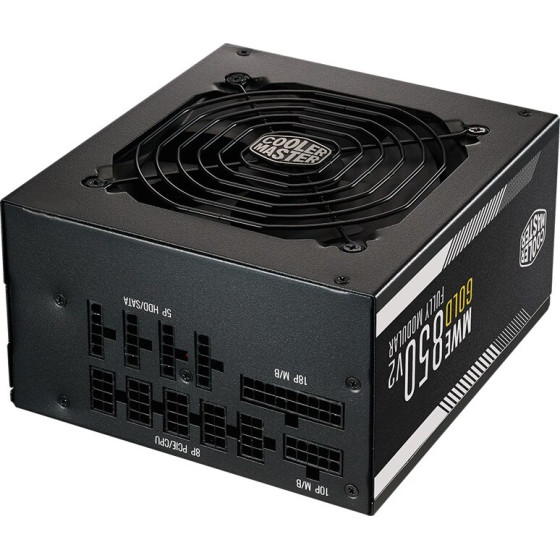

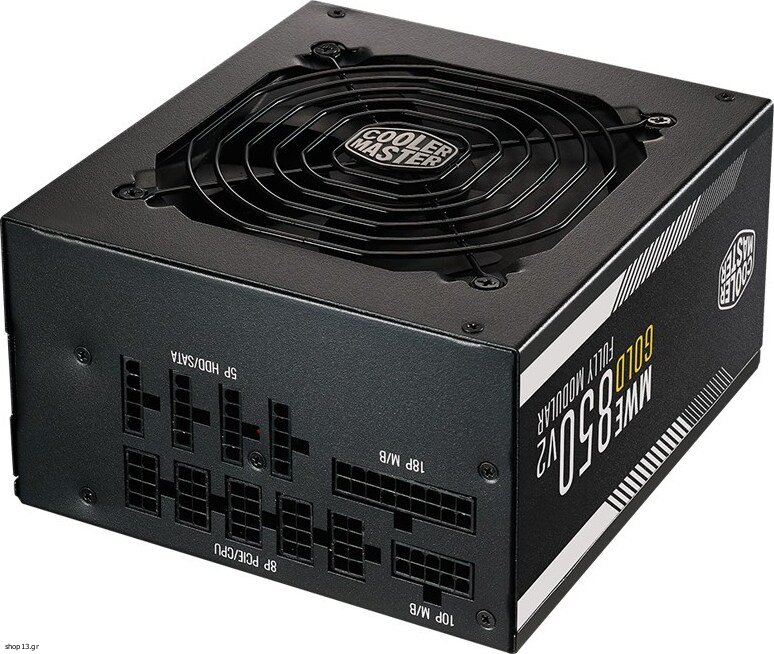

Cooler Master MWE Gold 850 V2 ATX 3.1 power supply unit 850 W 24-pin ATX Black - (MPE-8501-AFAAG-3EEU)

Technical details
Sustainability certificates: ErP

Design
Fan diameter: 12 cm
On/off switch: Yes
Cooling type: Active
Product colour: Black
Fan location: Top
Number of fans: 1 fan(s)

Power
Power protection features: Under voltage, Over current, Short circuit, Over voltage, Over total voltage, Over power
Combined power (+5V): 100 W
Combined power (+5Vsb): 15 W
Combined power (+3.3V): 100 W
AC input voltage: 100 - 240 V
AC input frequency: 50/60 Hz
Input current: 6 - 12 A
Max output current (+12V): 70.8 A
Max output current (+5Vsb): 3 A
Combined power (-12V): 3.6 W
Total power: 850 W
Power Factor Correction (PFC) type: Active
Hold time: 16 ms
Efficiency: 90%
Max output current (+5V): 20 A
Max output current (+3.3V): 20 A
Combined power (+12V): 849.6 W
Max output current (-12V): 0.3 A

Operational conditions
Operating temperature (T-T): 0 - 50 °C

Weight & dimensions
Height: 86 mm
Width: 150 mm
Weight: 2.62 kg
Depth: 160 mm

Performance
Mean time between failures (MTBF): 100000 h
80 PLUS certification: 80 PLUS Gold
Purpose: PC
ATX version: 3.1
Power supply unit (PSU) form factor: ATX
Bearing technology: HDB

Packaging data
Package height: 120 mm
Package type: Box
Package depth: 310 mm
Package weight: 2.9 kg
Package width: 194 mm

Ports & interfaces
Peripheral (Molex) power cable length: 740 mm, 860 mm, 500 mm, 620
SATA power cable length: 500 mm, 620, 740, 860 mm
Peripheral (Molex) power connectors (4-pin): 4
Number of SATA power connectors: 12
PCI Express power connectors (6+2 pin): 4
ATX Power connector (24-pin): Yes
EPS power connector (8-pin): Yes
EPS power connector (4+4 pin): Yes
Motherboard power cable length: 61 cm
Motherboard power connector: 24-pin ATX
Cabling type: Fully-Modular


Warranty: warranty 24 months
