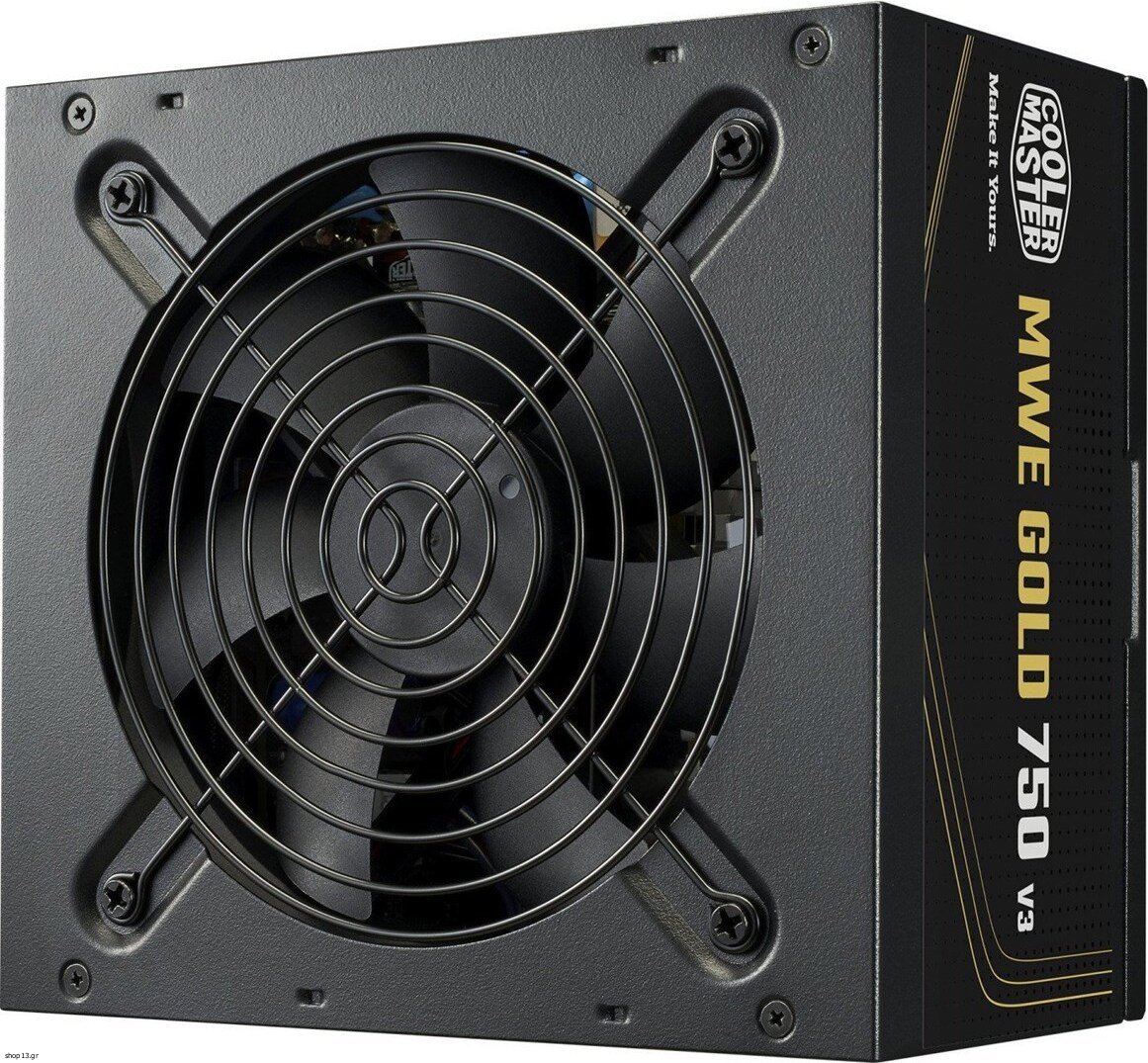

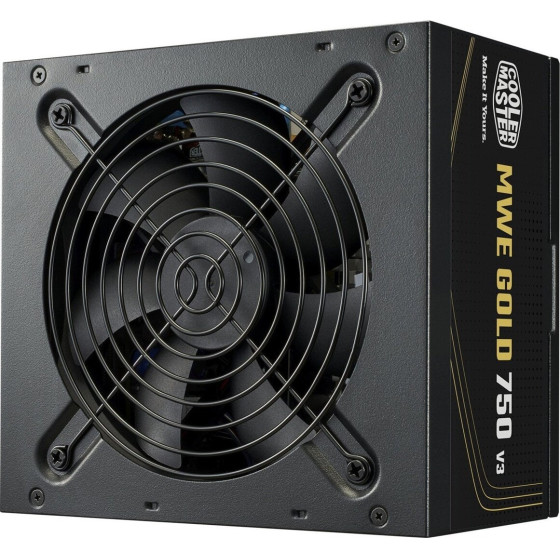

Cooler Master MWE Gold 750 V3 ATX 3.1 power supply unit 750 W 24-pin ATX Black - (MPE-7506-ACAG-BEU)

Design
Cooling type: Active
On/off switch: Yes
Fan location: Top
Product colour: Black
Fan diameter: 12 cm
Number of fans: 1 fan(s)

Power
AC input frequency: 50/60 Hz
Combined power (+3.3V): 100 W
Efficiency: 90%
Combined power (+5V): 100 W
Max output current (+12V): 62.5 A
Power protection features: UVP (undervoltage protection), OVP (overvoltage protection), OPP (overload protection), OTP (overheat protection), OCP (overcurrent protection), SCP (short circuit protection)
AC input voltage: 100 - 240 V
Input current: 6 - 10 A
Max output current (+5V): 20 A
Total power: 750 W
Power Factor Correction (PFC) type: Active
Max output current (-12V): 0.3 A
Combined power (+12V): 750 W
Max output current (+5Vsb): 3 A
Max output current (+3.3V): 20 A
Combined power (+5Vsb): 15 W
Combined power (-12V): 3.6 W

Operational conditions
Operating temperature (T-T): 0 - 50 °C

Weight & dimensions
Weight: 1.8 kg
Width: 150 mm
Depth: 140 mm
Height: 86 mm

Performance
Power supply unit (PSU) form factor: ATX
Bearing technology: HDB
Purpose: PC
Mean time between failures (MTBF): 100000 h
80 PLUS certification: 80 PLUS Gold
ATX version: 3.1

Packaging data
Package type: Box

Ports & interfaces
PCI Express power connectors (12+4 pin): 1
Number of SATA power connectors: 6
PCI Express power connectors (6+2 pin): 4
Cabling type: Non-Modular
EPS power connector (4+4 pin): 2
Peripheral (Molex) power connectors (4-pin): 3
Motherboard power connector: 24-pin ATX
ATX Power connector (24-pin): Yes

Safety warning
Warnings: Avoid contact of the product with water or other liquids., Do not open the case - risk of electric shock., The product is not suitable for disposal with municipal waste - dispose of in accordance with local regulations.


Warranty: warranty 60 months
