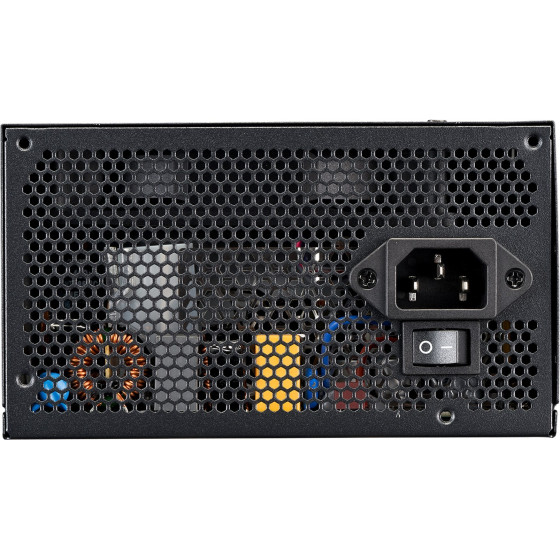

Cooler Master MWE Bronze 750 V3 230V power supply unit 750 W 24-pin ATX ATX Black - (MPE-7501-ACABW-3BEU)

Technical details
Compliance certificates: KC, RoHS, CE, China Compulsory Certification (CCC), TUV mark, UKCA, EAC, Federal Communications Commission (FCC), RCM, BIS

Design
On/off switch: Yes
Cooling type: Active
Product colour: Black
Fan diameter: 12 cm
Number of fans: 1 fan(s)

Power
Efficiency: 88%
Power Factor Correction (PFC) type: Active
Input current: 6 A
Power protection features: Short circuit, Over voltage, Over power, Under voltage
AC input frequency: 50/60 Hz
Combined power (+5Vsb): 15 W
Combined power (-12V): 3.6 W
Combined power (+3.3V): 120 W
Combined power (+12V): 744 W
AC input voltage: 220 - 240 V
Combined power (+5V): 120 W
Max output current (+3.3V): 20 A
Hold time: 16 ms
Max output current (+5Vsb): 3 A
Max output current (+12V): 62 A
Power Good signal delay range: 100 - 500 ms
Max output current (+5V): 20 A
Total power: 750 W
Max output current (-12V): 0.3 A

Weight & dimensions
Width: 150 mm
Depth: 140 mm
Height: 86 mm
Weight: 1.75 kg

Performance
80 PLUS certification: 80 PLUS Bronze
Mean time between failures (MTBF): 100000 h
Power supply unit (PSU) form factor: ATX
Bearing technology: HDB
ATX version: 3.1
Purpose: PC

Packaging data
Package weight: 2.15 kg
Package width: 245 mm
Package type: Box
Package depth: 190 mm
Package height: 110 mm

Ports & interfaces
EPS power connector (4+4 pin): Yes
SATA power cable length: 400 mm, 700, 550
ATX Power connector (24-pin): Yes
EPS power connector (8-pin): Yes
Peripheral (Molex) power cable length: 550 mm, 400 mm, 700 mm
Peripheral (Molex) power connectors (4-pin): 3
Number of SATA power connectors: 6
Motherboard power cable length: 50 cm
PCI Express power connectors (6+2 pin): 4
Motherboard power connector: 24-pin ATX
Cabling type: Non-Modular


Warranty: warranty 24 months
