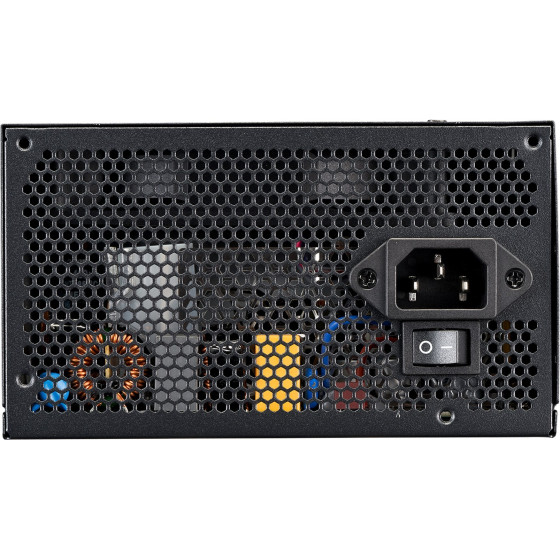

Cooler Master MWE Bronze 550 V3 230V power supply unit 550 W 24-pin ATX ATX Black - (MPE-5501-ACABW-3BEU)

Design
Cooling type: Active
Fan diameter: 12 cm
Product colour: Black
Number of fans: 1 fan(s)

Power
Max output current (+5Vsb): 3 A
Power Good signal delay range: 100 - 500 ms
Hold time: 16 ms
AC input voltage: 200 - 240 V
Combined power (+5Vsb): 15 W
Combined power (+5V): 110 W
Total power: 550 W
AC input frequency: 50/60 Hz
Power protection features: Over power, Under voltage, Short circuit, Over voltage
Combined power (+3.3V): 110 W
Max output current (+3.3V): 17 A
Combined power (+12V): 540 W
Efficiency: 88%
Power Factor Correction (PFC) type: Active
Max output current (+12V): 45 A
Combined power (-12V): 3.6 W
Max output current (-12V): 0.3 A
Input current: 5 A

Operational conditions
Operating temperature (T-T): 0 - 40 °C

Weight & dimensions
Weight: 1.45 kg
Height: 86 mm
Width: 150 mm
Depth: 140 mm

Performance
ATX version: 3.1
Power supply unit (PSU) form factor: ATX
Bearing technology: HDB
80 PLUS certification: 80 PLUS Bronze
Mean time between failures (MTBF): 100000 h
Purpose: PC

Packaging data
Package width: 245 mm
Package weight: 1.85 kg
Package type: Box
Package depth: 190 mm
Package height: 110 mm

Certificates
Compliance certificates: RoHS, CE, China Compulsory Certification (CCC), TUV mark, KC, Federal Communications Commission (FCC), EAC, UKCA, RCM, BIS

Ports & interfaces
Peripheral (Molex) power cable length: 550 mm, 700 mm, 400 mm
EPS power connector (4+4 pin): Yes
Motherboard power connector: 24-pin ATX
Number of SATA power connectors: 6
SATA power cable length: 400 mm, 700, 550
ATX Power connector (24-pin): Yes
Cabling type: Non-Modular
Motherboard power cable length: 50 cm
Peripheral (Molex) power connectors (4-pin): 3
PCI Express power connectors (6+2 pin): 2


Warranty: warranty 60 months
