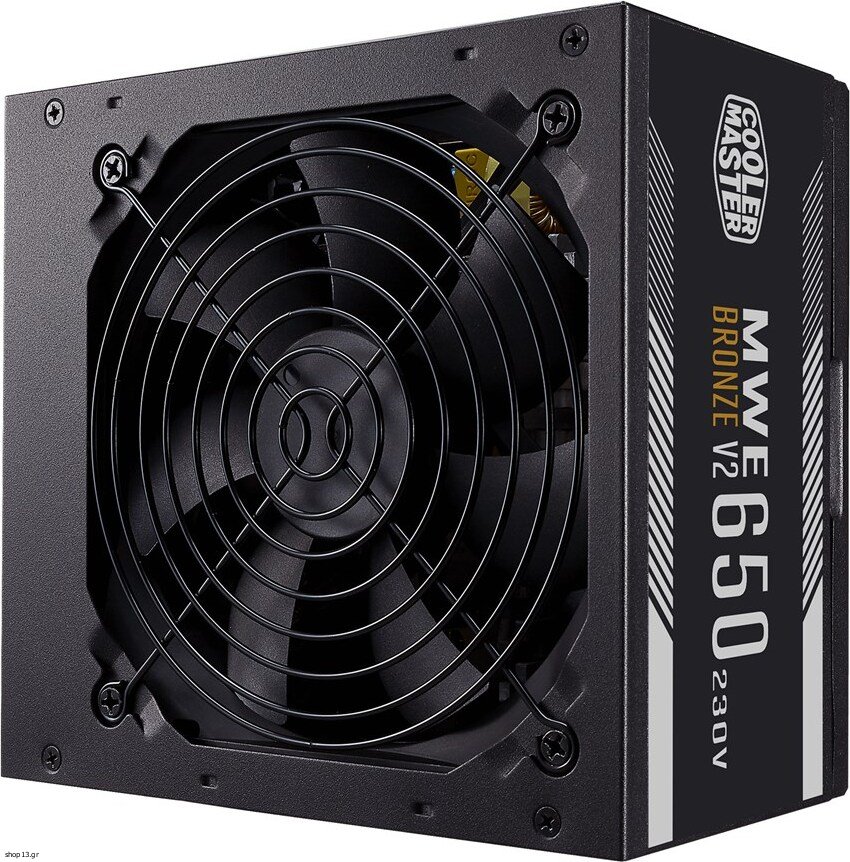

Cooler Master MWE 650 Bronze 230V V2 power supply unit 650 W 24-pin ATX ATX Black - (MPE-6501-ACABW-BEU)

Design
On/off switch: Yes
Cooling type: Active
Fan diameter: 12 cm
Number of fans: 1 fan(s)
Product colour: Black

Power
Combined power (+3.3V): 120 W
AC input voltage: 220 - 240 V
Combined power (+5V): 120 W
Max output current (+3.3V): 19 A
Power protection features: Under voltage, Over power, Short circuit, Over voltage
Power Good signal delay range: 100 - 500 ms
AC input frequency: 50 - 60 Hz
Max output current (+5Vsb): 3 A
Max output current (+5V): 19 A
Total power: 650 W
Input current: 5 A
Max output current (+12V): 54 A
Combined power (-12V): 3.6 W
Max output current (-12V): 0.3 A
Combined power (+12V): 648 W
Combined power (+5Vsb): 15 W
Hold time: 14 ms
Power Factor Correction (PFC) type: Active
Efficiency: 88%

Weight & dimensions
Height: 86 mm
Depth: 140 mm
Weight: 1.27 kg
Width: 150 mm

Performance
Power supply unit (PSU) form factor: ATX
Purpose: PC
ATX version: 2.52
Bearing technology: HDB
80 PLUS certification: 80 PLUS Bronze
Mean time between failures (MTBF): 100000 h

Packaging data
Package width: 190 mm
Package depth: 245 mm
Package weight: 1.67 kg
Package height: 110 mm

Ports & interfaces
PCI Express power connectors (6+2 pin): 4
Cabling type: Non-Modular
Number of SATA power connectors: 6
EPS power connector (4+4 pin): Yes
EPS power connector (8-pin): Yes
ATX Power connector (24-pin): Yes
Motherboard power connector: 24-pin ATX
Peripheral (Molex) power connectors (4-pin): 3

Other features
Noise level (full-load mode, 100%): 42.5 dB
Noise level (quiet mode, 50%): 26.5 dB

Logistics data
Harmonized System (HS) code: 84733020


Warranty: warranty 24 months
