Περιγραφή

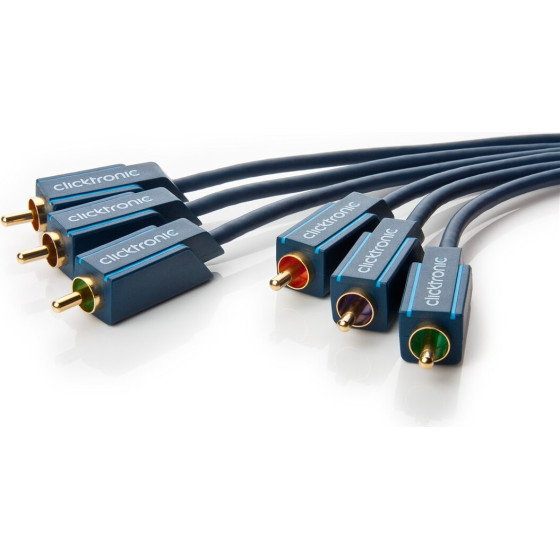

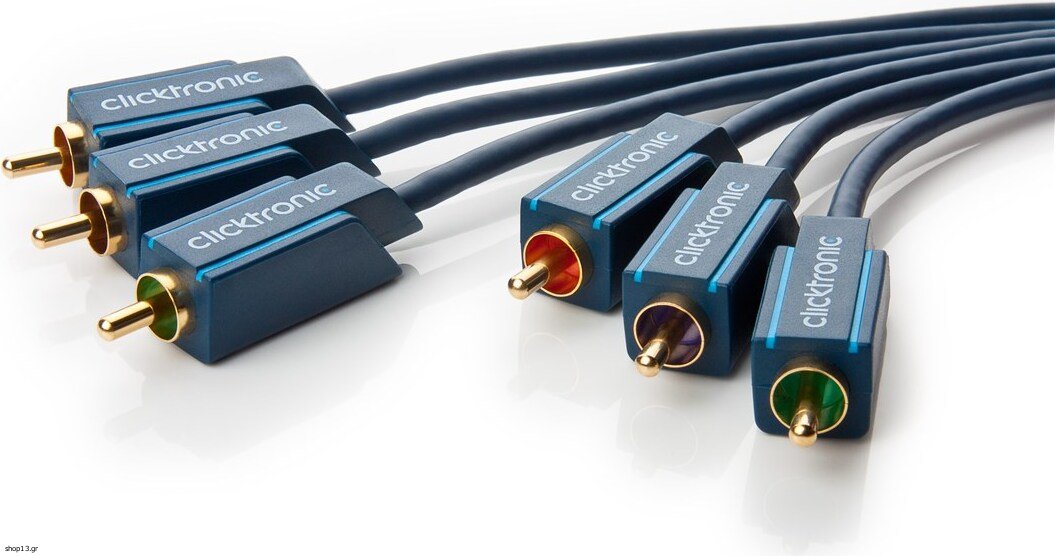

Maximize the potential of your display screen. The YUV component cable separates each piece of color information into two components which are luminance (luminous intensity, luma), and chrominance (color component, chroma). Due to multiple signal shielding, pure materials, and precise workmanship this cable transmits any analog video signal picture for picture with low noise, color fidelity, and clarity.
AWG: 24
Connection, length: 39.8 mm
Operating temperature up to: 80 °C
Operating temperature from: -10 °C
Warranty: 10 years
Capacity: 60 pF
Impedance: 75 Ω
max. bandwidth: 10 MHz
Kink protection: both sides
Cable type: round cable
Ferrite core: no
Material cable sheath: PVC
Inner conductor material: CU (copper)
Type 2, shielding: braid (copper) 64x
Connection type: RCA Female
Connection, housing material: ABS, PVC
Connection, contact material: gold (24 kt)
Connection, shielding: yes
Connection, type: 3 RCA male (YUV/RGB)
Connection 2, type: 3 RCA male (YUV/RGB)
Latch protection: no
Consumption Unit: 1 pc. in cardboard box
Signal amplification: no
Cable length: 10 m
Markings: WEEE, CE
