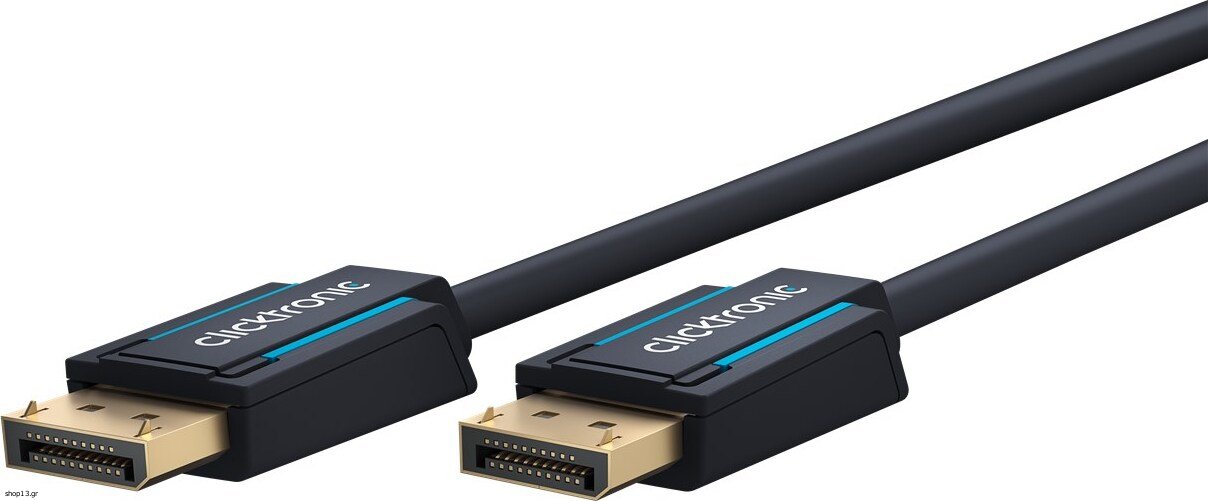

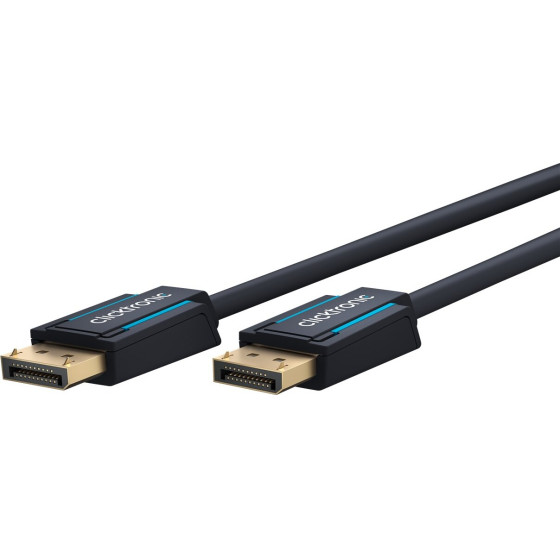

Clicktronic attaches great importance to durability and stability. Our quality promise: 10-year warranty on our DisplayPort(TM) cables. The proprietary construction of our connection cables makes them extremely robust. The three-part connector construction made of PVC and ABS components compensates for jerky pulling on the cable, making it ideally protected against cable breaks. High-quality, gold-plated contacts and pure copper conductors transmit audio and video signals in maximum quality for a perfect home cinema and gaming experience. The Clicktronic DisplayPort(TM) cable enables a razor-sharp image and has a very fast transmission speed.
AWG: 28
Cable sheath diameter (approx.): 7.3 mm
Inner conductor cross-section: 0.32 mm²
Number of shieldings: 3 x
Markings: WEEE, CE
Operating temperature up to: 80 °C
Operating temperature from: -10 °C
Warranty: 10 years
Impedance: 100 Ω
Max. resolution: 8K/60Hz (7680x4320) Full UHD
Transmission modes: HBR3
max. transmission rate: 32.4 Gbit/s
Supported video standards: 8K/60Hz (7680x4320) DSC, 8K/30Hz (7680x4320) Full UHD, 4K/240Hz (3840x2160) DSC, 4K/120Hz (3840x2160) UHD
Kink protection: both sides
Cable type: round cable
Ferrite core: no
Material cable sheath: PVC
Inner conductor material: CU (copper)
LSZH compliant: no
Type 1, shielding: braid (copper) 160x
Type 2, shielding: foil (aluminium)
Type 3, shielding: foil (aluminium)
Connection type: DisplayPort(TM) connector
Connection, housing material: ABS, PVC
Connection, contact material: gold (24 kt)
Connection, shielding: yes
Connection, type: DisplayPort(TM) male
Connection 2, type: DisplayPort(TM) male
Consumption Unit: 1 pc. in cardboard box
Special feature: flexible
Signal amplification: no
Cable length: 3 m
