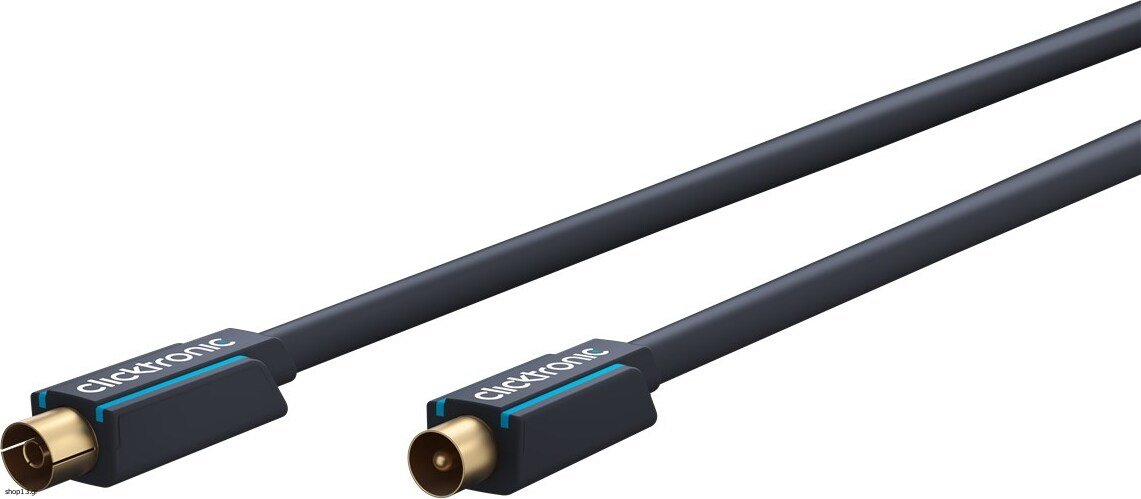

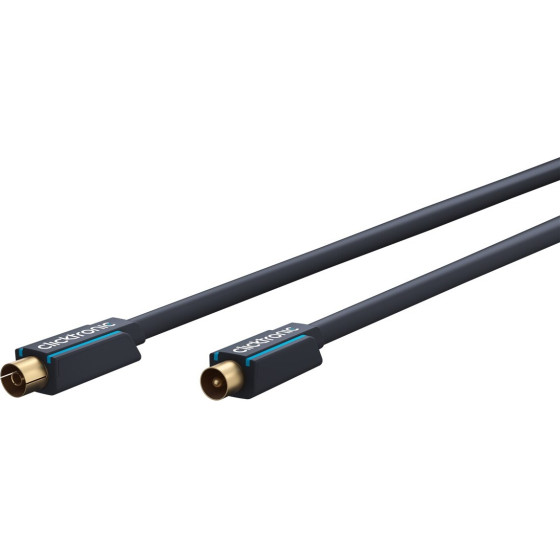

Clicktronic attaches great importance to durability and stability. Our quality promise: 10-year warranty on our antenna cables. The proprietary construction of our connection cables makes them extremely robust. The three-part connector construction made of PVC and ABS components compensates for jerky pulling on the cable, making it ideally protected against cable breaks. High-quality, gold-plated contacts and pure copper conductors guarantee fast data transmission. The durable PVC jacket protects the coaxial cable and ensures a long-lasting, stable connection.
AWG: 22
Cable sheath diameter (approx.): 6 mm
Diameter ferrite core: 14 mm
Number of shieldings: 2 x
Markings: WEEE, CE
Operating temperature up to: 80 °C
Operating temperature from: -10 °C
Warranty: 10 years
CAS no.: 7439-92-1
chemical substance: Pb
Impedance: 75 Ω
Shielding efficiency: 95 dB
Cable type: round cable
Ferrite core: yes
Material cable sheath: PVC
Inner conductor material: CU (copper)
Type 1, shielding: braid (copper) 96x
Type 2, shielding: foil (aluminium)
Connection type: Koax male, Koax female
Connection, housing material: ABS, PVC
Connection, contact material: gold (24 kt)
Connection, shielding: yes
Connection, type: Coaxial male (plug)
Connection 2, type: Coaxial female (socket)
Latch protection: no
Consumption Unit: 1 pc. in cardboard box
Signal amplification: no
Cable length: 5 m
SCIP no.: 735ecbed-62e7-4080-8321-9e3ef75d7cce
