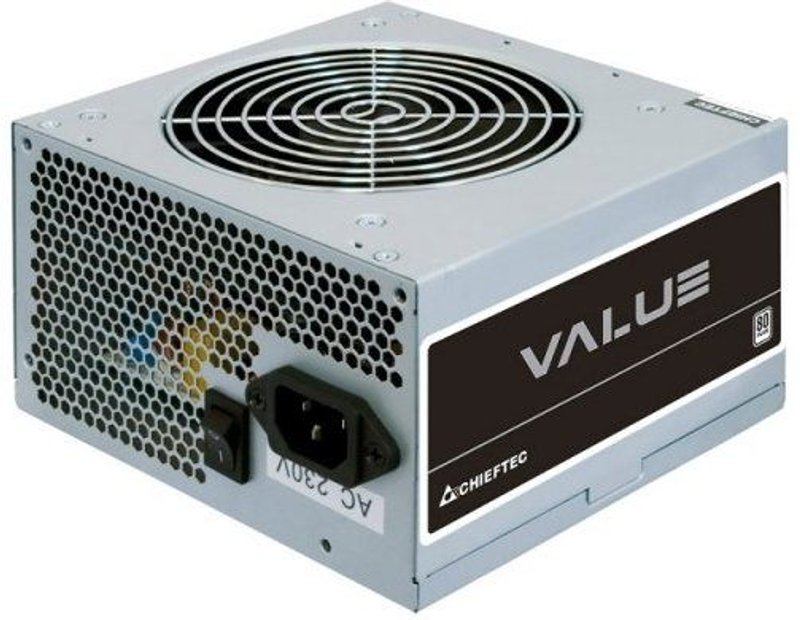

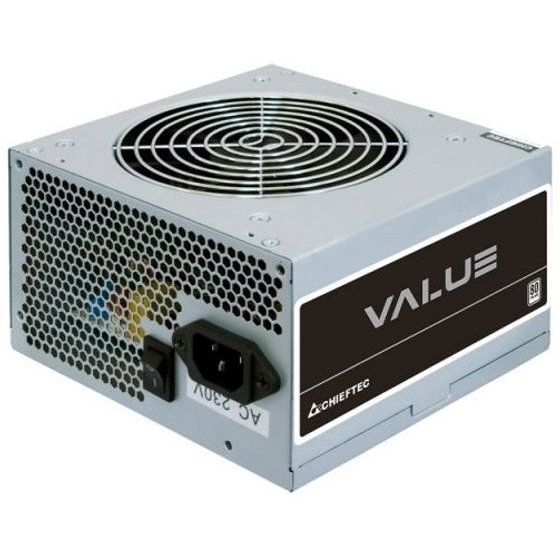

Chieftec Value Power Supply Unit 600 W 20+4 Pin Atx Atx Steel - (APB-600B8)

Technical details
Sustainability certificates: CE, RoHS

Design
Cooling type: Active
Product colour: Steel
On/off switch: Yes
Fan location: Top
Number of fans: 1 fan(s)
Fan diameter: 12 cm

Power
Combined power (-12V): 3.6 W
Maximum input current (@220V): 4.5 A
AC input frequency: 47 - 63 Hz
Combined power (+12V): 552 W
Combined power (+3.3V): 120 W
Max output current (+12V1): 46 A
Max output current (+5Vsb): 2.5 A
Combined power (+5Vsb): 12.5 W
Max output current (+5V): 20 A
Peak power: 600 W
Total power: 600 W
AC input voltage: 200 - 240 V
Max output current (-12V): 0.3 A
Max output current (+3.3V): 20 A
Combined power (+5V): 120 W

Weight & dimensions
Weight: 1.42 kg
Height: 87 mm
Depth: 140 mm
Width: 150 mm

Performance
Purpose: PC
Power supply unit (PSU) form factor: ATX
80 PLUS certification: 80 PLUS
ATX version: 2.3

Packaging data
Package weight: 1.56 kg

Ports & interfaces
Peripheral (Molex) power connectors (4-pin): 2
Peripheral (Molex) power cable length: 150, 500 mm
PCI Express power connectors (6+2 pin): 2
Motherboard power cable length: 55 cm
EPS power connector (4+4 pin): Yes
Cabling type: Non-Modular
Floppy disk drive cable length: 15 cm
Motherboard power connector: 20+4 pin ATX
SATA power cable length: 150, 500 mm
EPS power connector (8-pin): No
Number of SATA power connectors: 4
Floppy disk drive connector: Yes

Logistics data
Harmonized System (HS) code: 84733020


Warranty: warranty 24 months
