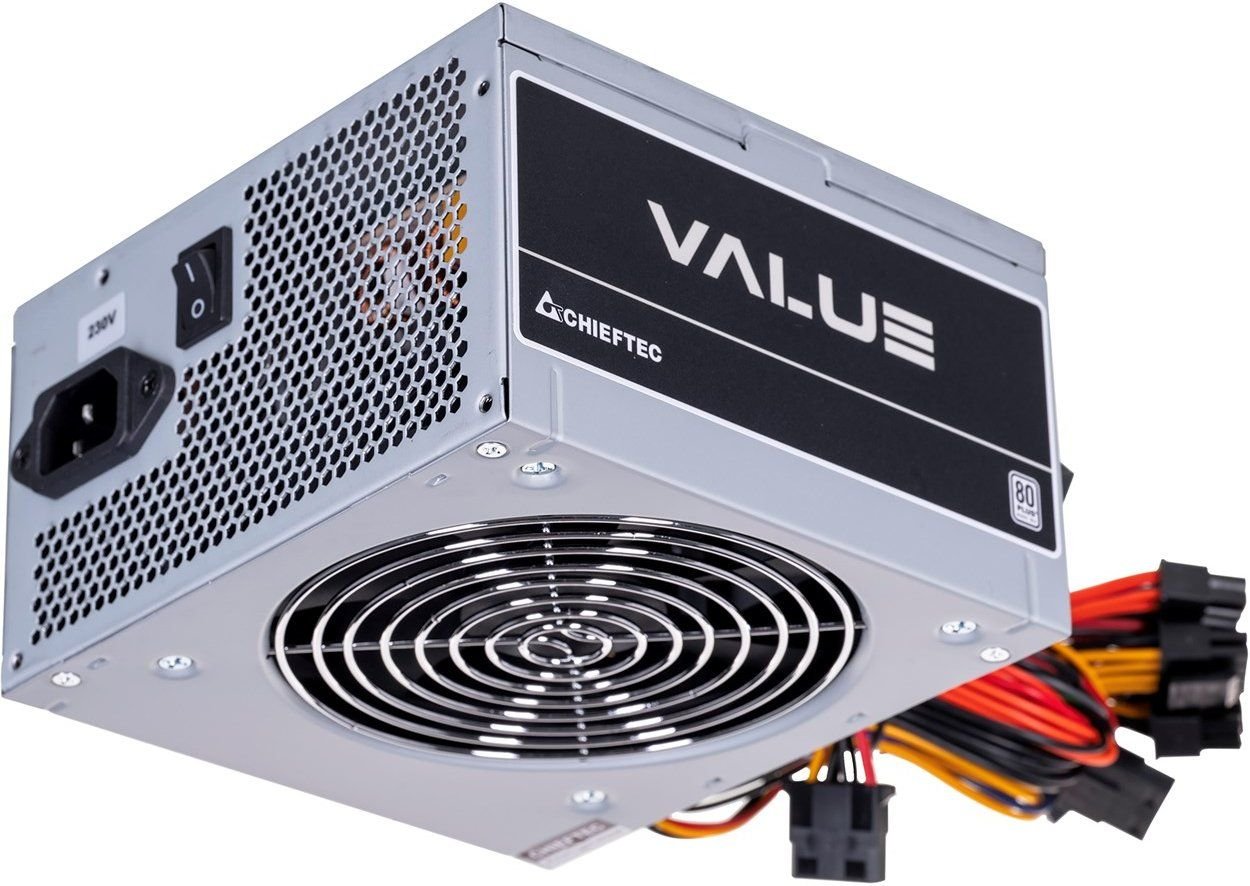

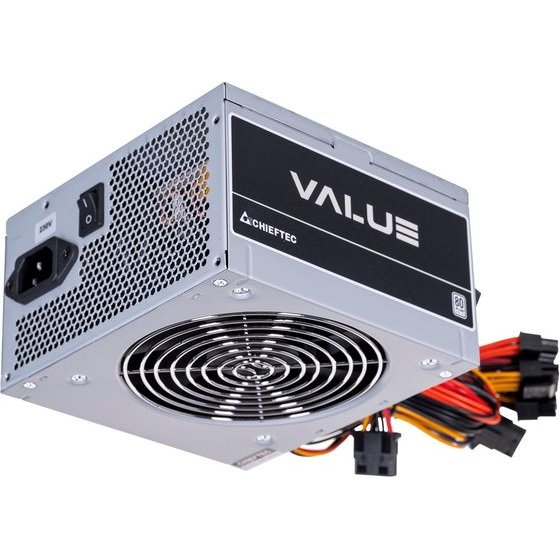

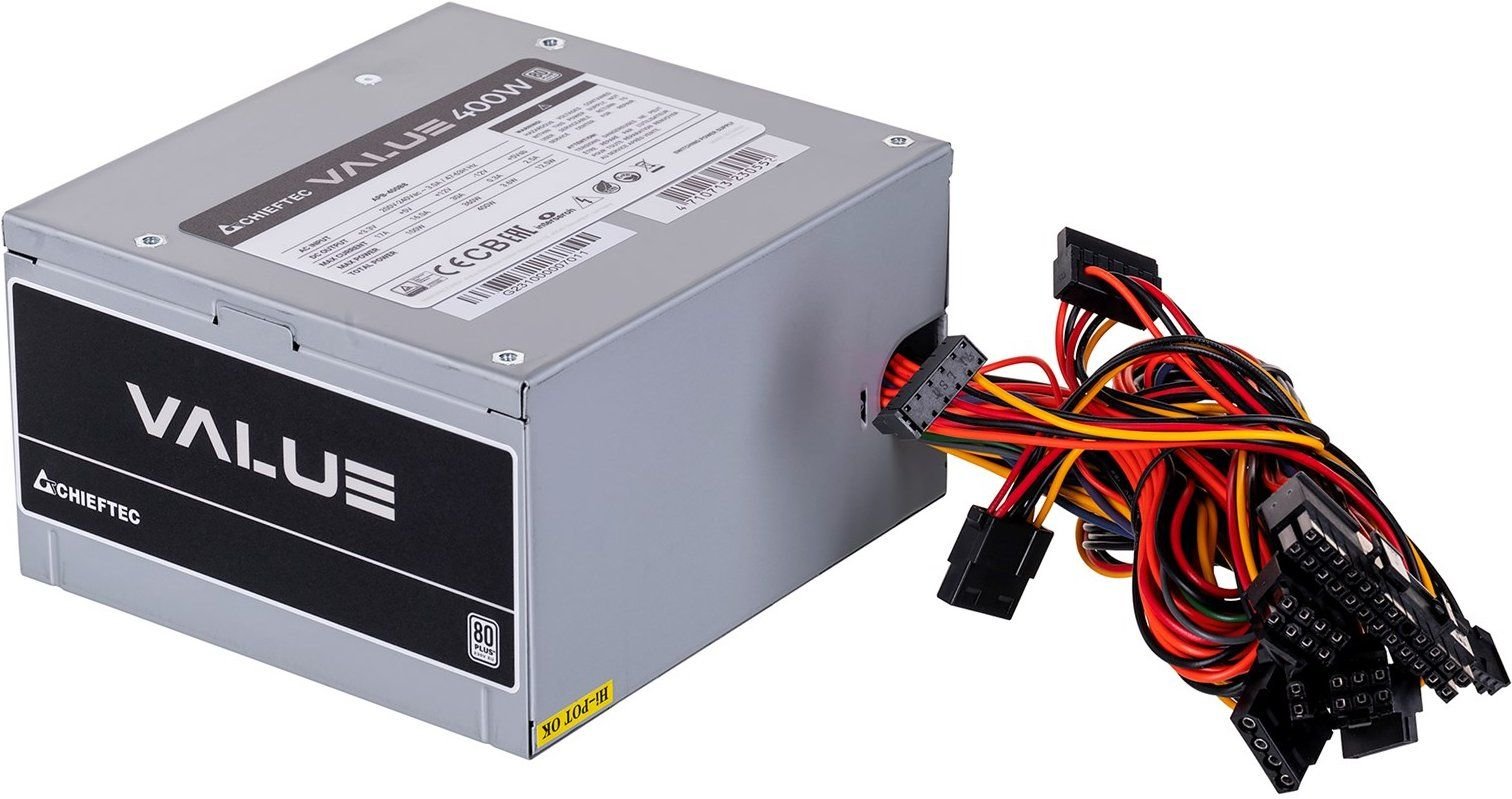

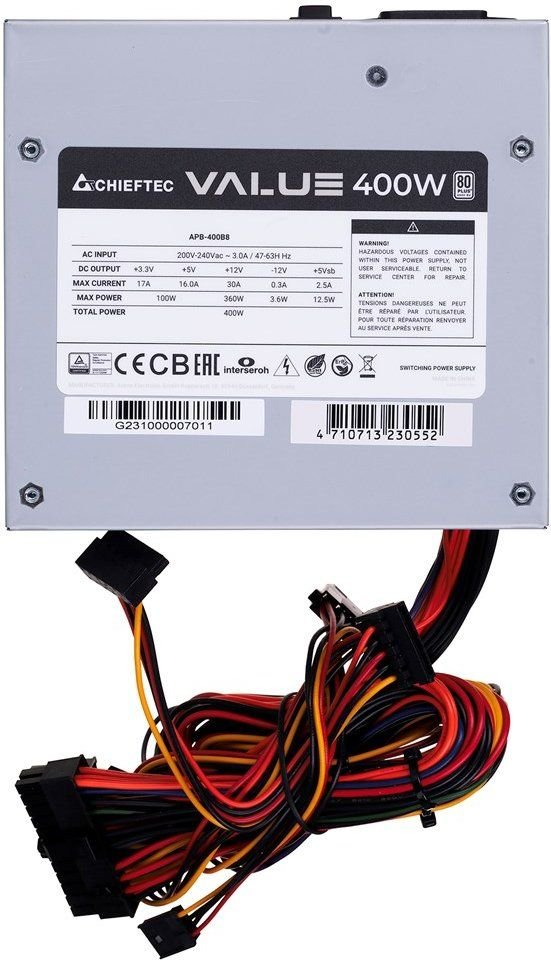

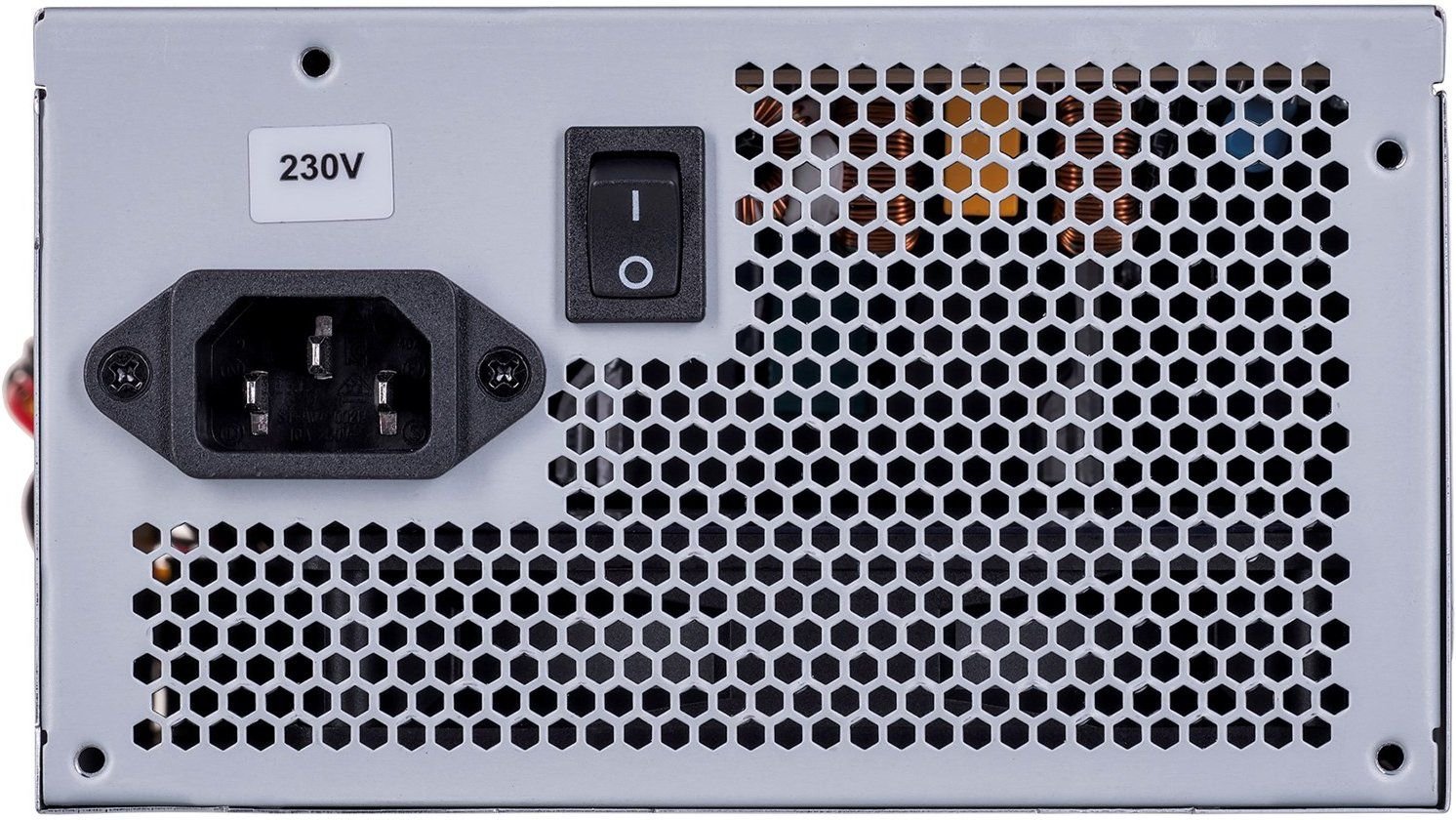

Chieftec Value Power Supply Unit 400 W 20+4 Pin Atx PS/2 Silver - (APB-400B8)

Design
Fan diameter: 12 cm
Number of fans: 1 fan(s)
Product colour: Silver

Power
Max output current (+5V): 16 A
AC input frequency: 47 - 63 Hz
Power factor: 0.9
Input current: 3 A
Power protection features: Under voltage, Overload, Short circuit, Over voltage
Power Factor Correction (PFC) type: Active
Combined power (-12V): 3.6 W
AC input voltage: 200 - 240 V
Total power: 400 W
Max output current (+5Vsb): 2.5 A
Combined power (+3.3V): 100 W
Max output current (+12V): 30 A
Max output current (-12V): 0.3 A
Combined power (+12V): 360 W
Combined power (+5Vsb): 12.5 W
Combined power (+5V): 100 W
Max output current (+3.3V): 17 A

Weight & dimensions
Height: 87 mm
Depth: 150 mm
Width: 140 mm

Performance
ATX version: 2.3
Purpose: PC/Server
80 PLUS certification: 80 PLUS
Power supply unit (PSU) form factor: PS/2

Ports & interfaces
Motherboard power connector: 20+4 pin ATX
Cabling type: Non-Modular
CPU power connector (4+4 pin): Yes
Motherboard power cable length: 35 cm
Peripheral (Molex) power cable length: 150, 350 mm
CPU power cable length: 35 cm
SATA power cable length: 350, 150
EPS power connector (4+4 pin): Yes
Peripheral (Molex) power connectors (4-pin): 2
PCI Express power connectors (6+2 pin): 1
PCI Express power cable length: 35 cm
Floppy drive power connector: 1
Number of SATA power connectors: 3
Floppy disk drive connector: Yes

Logistics data
Harmonized System (HS) code: 84733020


Warranty: warranty 24 months
