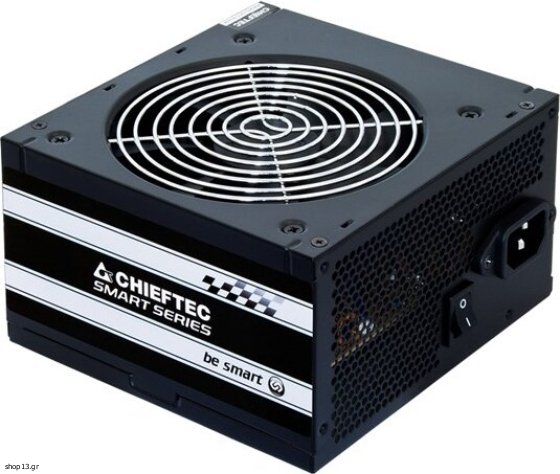

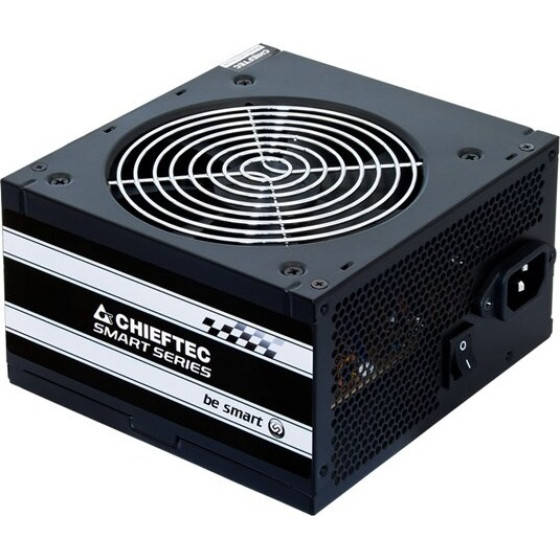

Chieftec Smart power supply unit 700 W 20+4 pin ATX PS/2 Black - (GPS-700A8)

Design
Product colour: Black
Cooling type: Active
Number of fans: 1 fan(s)
Fan diameter: 12 cm

Power
AC input voltage: 230 V
Max output current (+5V): 22 A
Power protection features: Short circuit, Over voltage, Overload, Under voltage
Efficiency: 80%
Power factor: 0.9
Max output current (+12V1): 54 A
Combined power (-12V): 3.6 W
Max output current (-12V): 0.3 A
Total power: 700 W
Max output current (+3.3V): 22 A
Max output current (+5Vsb): 2.5 A
Combined power (+5Vsb): 12.5 W
Power Factor Correction (PFC) type: Active

Weight & dimensions
Weight: 1.62 kg
Width: 150 mm
Height: 87 mm
Depth: 140 mm

Performance
80 PLUS certification: No
Purpose: PC
Power supply unit (PSU) form factor: PS/2
ATX version: 2.3

Ports & interfaces
Peripheral (Molex) power connectors (4-pin): 2
EPS power connector (8-pin): Yes
Floppy drive power connector: 1
PCI Express power connectors (6+2 pin): 2
Motherboard power connector: 20+4 pin ATX
Cabling type: Non-Modular
Number of SATA power connectors: 6

Safety warning
Warnings: Do not open the case - risk of electric shock., The product is not suitable for disposal with municipal waste - dispose of in accordance with local regulations.


Warranty: guarantee 24 months
