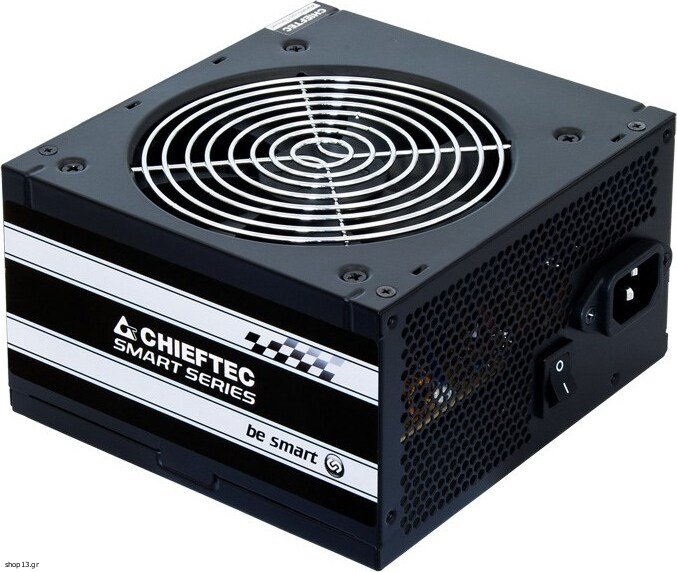

Chieftec Smart power supply unit 600 W 20+4 pin ATX ATX Black - (GPS-600A8)

Design
Fan diameter: 12 cm
Product colour: Black

Power
AC input frequency: 47 - 63 Hz
Power protection features: Overload, Short circuit, Over voltage, Under voltage
Max output current (+12V1): 46 A
Combined power (-12V): 3.6 W
Max output current (+5Vsb): 2.5 A
Combined power (+3.3V): 120 W
Max output current (+5V): 20 A
Combined power (+5V): 120 W
Total power: 600 W
Max output current (+3.3V): 20 A
Power Factor Correction (PFC) type: Active
AC input voltage: 230 V
Input current: 4.5 A
Combined power (+5Vsb): 12.5 W
Max output current (-12V): 0.3 A

Weight & dimensions
Height: 87 mm
Depth: 140 mm
Width: 150 mm

Performance
Purpose: PC
Power supply unit (PSU) form factor: ATX
ATX version: 2.3
80 PLUS certification: No

Ports & interfaces
Number of SATA power connectors: 4
Floppy drive power connector: 1
PCI Express power connectors (6+2 pin): 2
Peripheral (Molex) power connectors (4-pin): 2
Motherboard power connector: 20+4 pin ATX
Cabling type: Non-Modular


Warranty: guarantee 24 months
