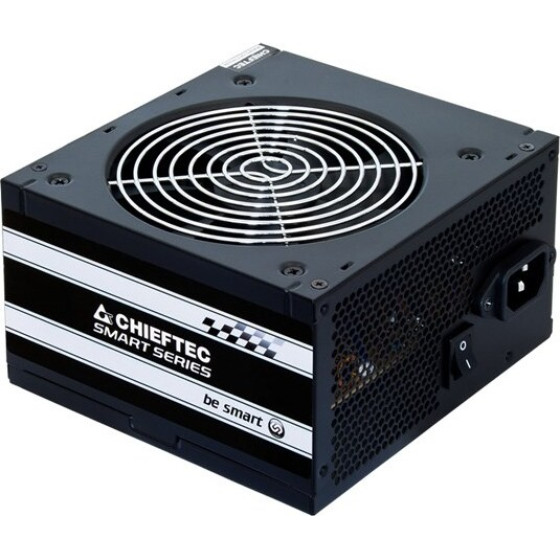

Chieftec Smart power supply unit 500 W 20+4 pin ATX ATX Black - (GPS-500A8)

Design
Cooling type: Active
Product colour: Black
Fan diameter: 12 cm

Power
Power protection features: Short circuit, Over voltage, Overload, Under voltage, Over current, Overheating
AC input frequency: 47 - 63 Hz
Total power: 500 W
Efficiency: 80%
Max output current (-12V): 0.3 A
Max output current (+12V2): 21 A
Combined power (-12V): 3.6 W
Combined power (+3.3V): 130 W
Max output current (+12V1): 24 A
Max output current (+12V): 12.5 A
Max output current (+5Vsb): 3 A
Combined power (+5V): 130 W
Max output current (+3.3V): 22 A
AC input voltage: 230 V
Max output current (+5V): 19 A
Combined power (+12V): 408 W

Weight & dimensions
Depth: 140 mm
Height: 87 mm
Width: 150 mm

Performance
Purpose: PC
80 PLUS certification: No
Power supply unit (PSU) form factor: ATX
ATX version: 2.3

Ports & interfaces
Number of SATA power connectors: 3
Peripheral (Molex) power connectors (4-pin): 2
Cabling type: Non-Modular
Floppy drive power connector: 1
PCI Express power connectors (6+2 pin): 1
Motherboard power connector: 20+4 pin ATX


Warranty: guarantee 24 months
