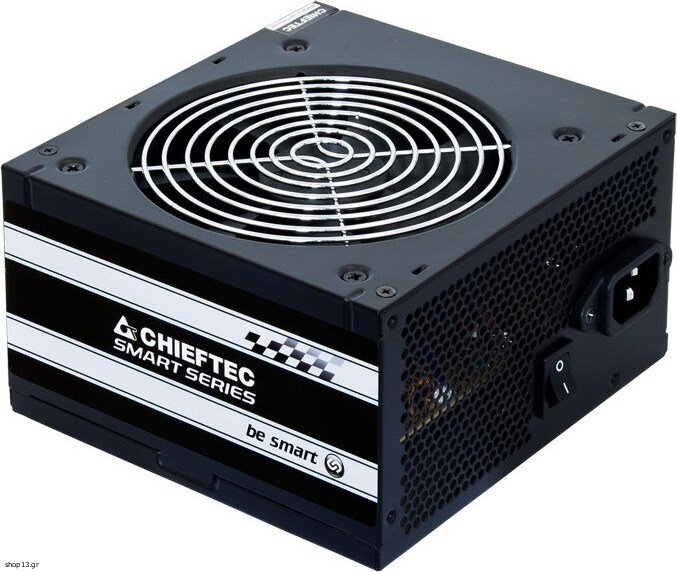

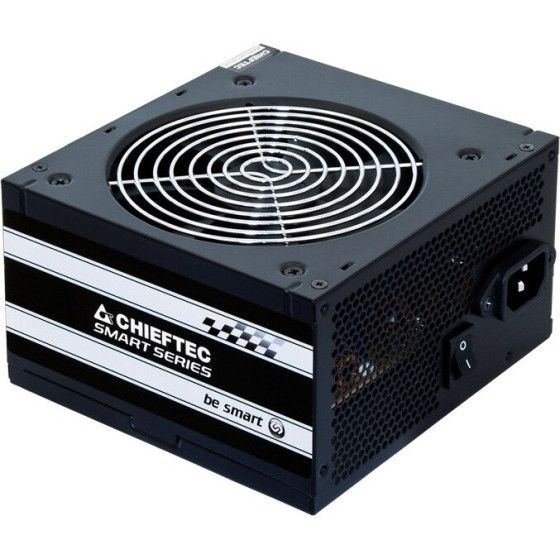

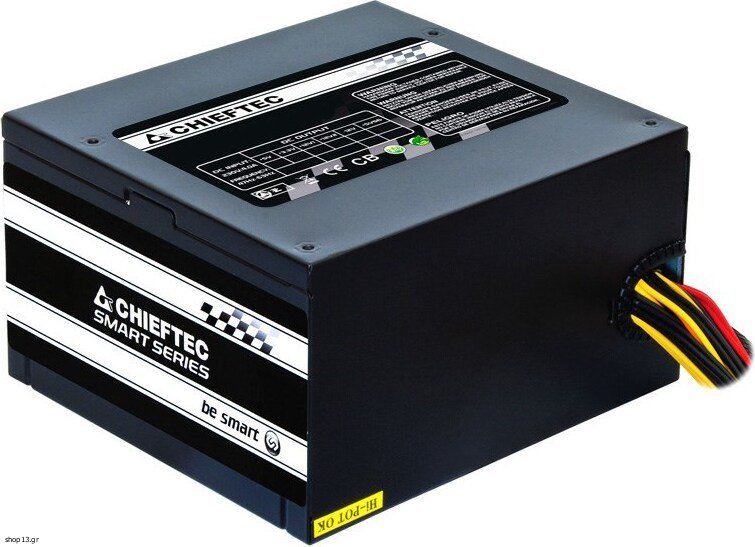

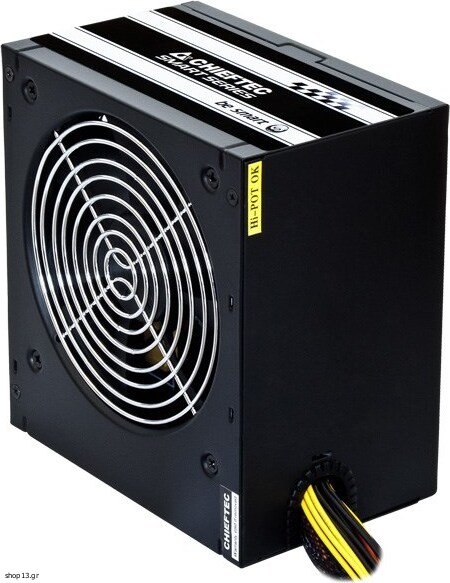

Chieftec Smart power supply unit 400 W 20+4 pin ATX ATX Black - (GPS-400A8)

Technical details
Sustainability certificates: RoHS

Design
Product colour: Black
Fan diameter: 12 cm

Power
AC input frequency: 47 - 63 Hz
Power protection features: Short circuit, Over voltage, Under voltage, Overload
AC input voltage: 230 V
Combined power (+5V): 120 W
Combined power (+3.3V): 120 W
Combined power (+5Vsb): 12.5 W
Max output current (+3.3V): 22 A
Max output current (+5Vsb): 3 A
Max output current (+12V1): 18 A
Combined power (-12V): 3.6 W
Total power: 400 W
Power Factor Correction (PFC) type: Active
Input current: 4 A
Max output current (+12V2): 17 A
Max output current (-12V): 0.3 A
Max output current (+5V): 18 A

Weight & dimensions
Depth: 140 mm
Height: 87 mm
Width: 150 mm

Performance
Purpose: PC
Power supply unit (PSU) form factor: ATX
80 PLUS certification: No
ATX version: 2.3

Ports & interfaces
Number of SATA power connectors: 3
Peripheral (Molex) power connectors (4-pin): 2
PCI Express power connectors (6+2 pin): 1
CPU P4 connector (4-pin): 1
Motherboard power connector: 20+4 pin ATX
Cabling type: Non-Modular


Warranty: guarantee 24 months
