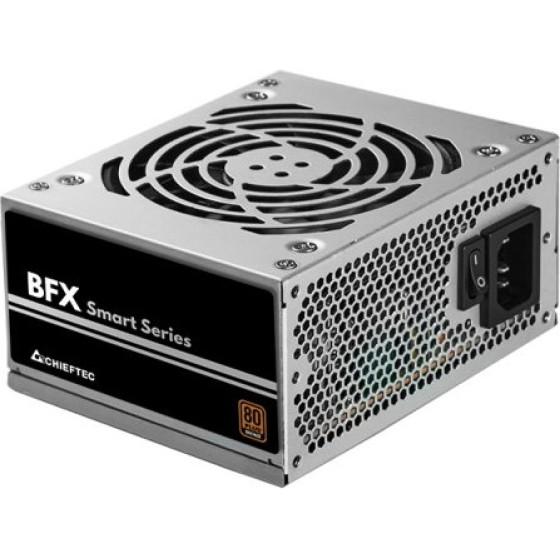

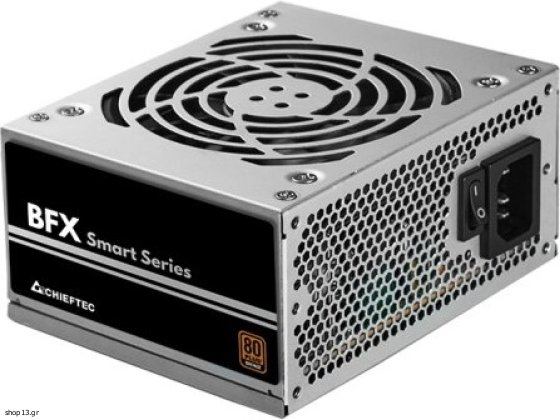

Chieftec Smart 350W power supply unit 20+4 pin ATX ATX Black, Silver - (BFX-350BS)

Design
Cooling type: Active
Product colour: Silver, Black
Fan diameter: 9 cm

Power
Combined power (+3.3V): 110 W
Power protection features: Under voltage, Over current, Overload, Short circuit, Over voltage, Overheating
AC input voltage: 100 - 240 V
Combined power (+5Vsb): 12.5 W
Max output current (+5Vsb): 2.5 A
Input current: 5 A
AC input frequency: 47 - 63 Hz
Combined power (-12V): 3.6 W
Max output current (+3.3V): 18 A
Combined power (+12V): 349.92 W
Combined power (+5V): 110 W
Power Factor Correction (PFC) type: Active
Max output current (+12V1): 29.16 A
Power factor: 0.9
Total power: 350 W
Max output current (+5V): 18 A
Max output current (-12V): 0.3 A

Weight & dimensions
Width: 125 mm
Height: 64 mm
Weight: 1.3 kg
Depth: 100 mm

Performance
80 PLUS certification: 80 PLUS Bronze
Power supply unit (PSU) form factor: ATX
ATX version: 2.3
Purpose: PC

Ports & interfaces
Floppy disk drive cable length: 15 cm
EPS power connector (4+4 pin): Yes
Number of SATA power connectors: 3
Floppy drive power connector: 1
Peripheral (Molex) power connectors (4-pin): 2
Motherboard power cable length: 35 cm
Peripheral (Molex) power cable length: 150
PCI Express power connectors (6+2 pin): 1
Motherboard power connector: 20+4 pin ATX
SATA power cable length: 250 mm
PCI Express power cable length: 35 cm
Cabling type: Non-Modular

Logistics data
Harmonized System (HS) code: 84733020


Warranty: warranty 24 months
