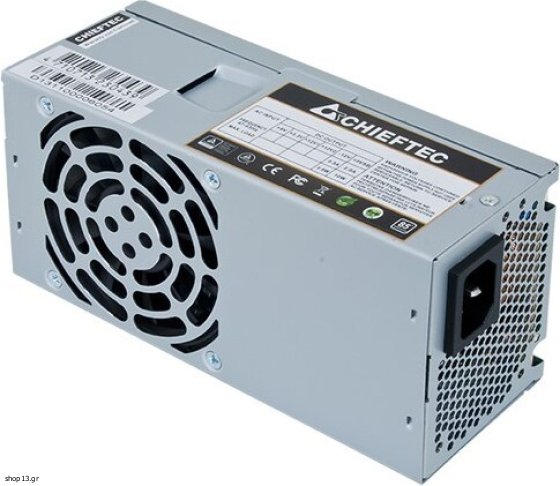

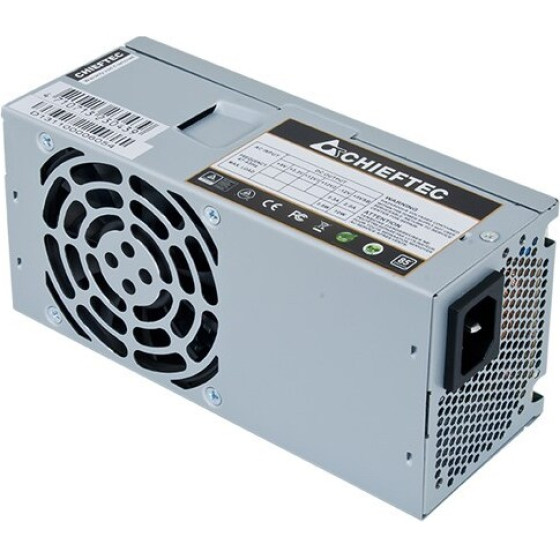

Chieftec Smart 300W power supply unit 20+4 pin ATX TFX Grey - (GPF-300P)

Technical details
Sustainability certificates: RoHS

Design
Cooling type: Active
Product colour: Grey
Fan diameter: 8 cm
Number of fans: 1 fan(s)

Power
Combined power (-12V): 3.6 W
Power factor: 0.9
Power protection features: Short circuit, Over voltage, Under voltage, Overload, Overheating
Max output current (+12V2): 15 A
AC input voltage: 115 - 230 V
Combined power (+5Vsb): 10 W
Max output current (+5V): 15 A
AC input frequency: 47 - 63 Hz
Max output current (+5Vsb): 2 A
Power Factor Correction (PFC) type: Active
Combined power (+5V): 95 W
Input current: 6.3 A
Max output current (-12V): 0.3 A
Max output current (+12V1): 14 A
Total power: 300 W
Combined power (+3.3V): 95 W
Max output current (+3.3V): 16 A

Weight & dimensions
Depth: 175 mm
Weight: 1.07 kg
Width: 85 mm
Height: 65 mm

Performance
Purpose: PC/Server
ATX version: 2.3
Power supply unit (PSU) form factor: TFX
80 PLUS certification: 80 PLUS Bronze

Packaging data
Package weight: 1.13 kg

Ports & interfaces
SATA power cable length: 150, 350 mm
Peripheral (Molex) power cable length: 350 mm, 150
EPS power connector (4+4 pin): Yes
Number of SATA power connectors: 4
CPU power cable length: 35 cm
Motherboard power cable length: 30 cm
Peripheral (Molex) power connectors (4-pin): 2
Motherboard power connector: 20+4 pin ATX
Cabling type: Non-Modular
Floppy disk drive cable length: 15 cm
Floppy drive power connector: 1

Logistics data
Harmonized System (HS) code: 84733020


Warranty: warranty 24 months
