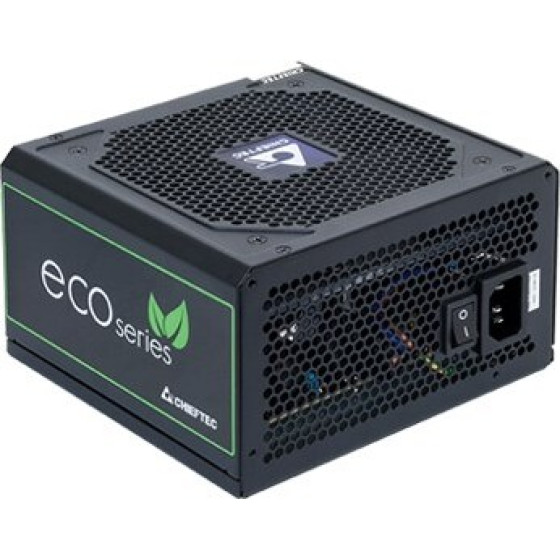

Chieftec power supply unit 700 W 24-pin ATX PS/2 Black - (GPE-700S)

Technical details
Sustainability certificates: RoHS, ENERGY STAR

Design
Cooling type: Active
Fan diameter: 12 cm
On/off switch: Yes
Product colour: Black
Number of fans: 1 fan(s)

Power
Input current: 6.3 A
Combined power (+5Vsb): 12.5 W
Max output current (+12V1): 52.5 A
Efficiency: 85%
Total power: 700 W
Combined power (+5V): 130 W
Max output current (+5V): 22 A
AC input voltage: 230 V
Power protection features: Under voltage, Overload, Short circuit, Over voltage
Power factor: 0.9
Combined power (-12V): 3.6 W
Combined power (+3.3V): 130 W
Power Factor Correction (PFC) type: Active
AC input frequency: 50 Hz
Max output current (+5Vsb): 2.5 A
Combined power (+12V): 630 W
Max output current (+3.3V): 22 A
Max output current (-12V): 0.3 A

Weight & dimensions
Width: 140 mm
Height: 86 mm
Depth: 150 mm

Performance
Purpose: PC
Power supply unit (PSU) form factor: PS/2
80 PLUS certification: 80 PLUS Bronze
ATX version: 2.3

Packaging data
Package type: Box

Ports & interfaces
Number of SATA power connectors: 6
Peripheral (Molex) power connectors (4-pin): 2
Motherboard power cable length: 40 cm
PCI Express power connectors (6+2 pin): 1
EPS power connector (8-pin): Yes
Motherboard power connector: 24-pin ATX
PCI Express connector: Yes

Other features
Housing colour: Black


Warranty: warranty 24 months
