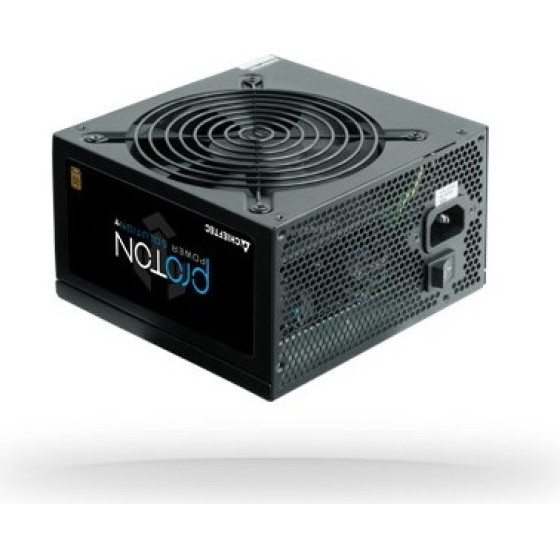

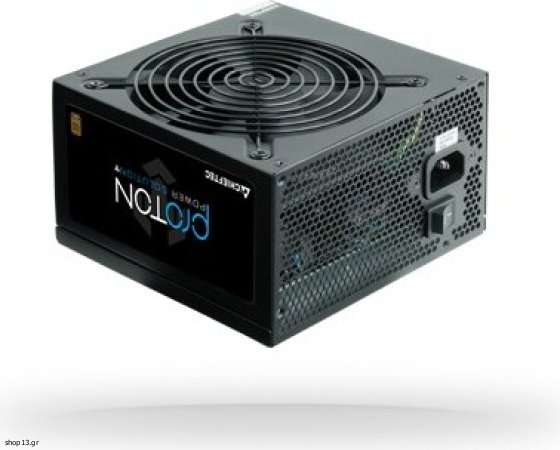

Chieftec power supply unit 500 W PS/2 Black - (BDF-500S)

Design
On/off switch: Yes
Cooling type: Active
Fan diameter: 12 cm
Product colour: Black
Fan location: Top
Number of fans: 1 fan(s)

Power
Combined power (+5V): 90 W
Power protection features: Overload, Under voltage, Short circuit, Over voltage
Total power: 500 W
Max output current (+12V): 41.68 A
Combined power (+3.3V): 90 W
Efficiency: 85%
Power factor: 0.9
Max output current (+5Vsb): 2.5 A
Max output current (+3.3V): 18 A
Max output current (+5V): 18 A
AC input frequency: 50 - 60 Hz
AC input voltage: 115 - 230 V
Power Factor Correction (PFC) type: Active
Max output current (-12V): 0.3 A

Weight & dimensions
Height: 87 mm
Width: 150 mm
Depth: 140 mm

Performance
Power supply unit (PSU) form factor: PS/2
80 PLUS certification: 80 PLUS Bronze
ATX version: 2.3

Packaging data
Manual: Yes
Warranty card: Yes

Ports & interfaces
Number of SATA power connectors: 6
Peripheral (Molex) power connectors (4-pin): 2
Motherboard power connector: 24-pin ATX
PCI Express power connectors (6+2 pin): 2
CPU power connector (4+4 pin): Yes


Warranty: guarantee 24 months
