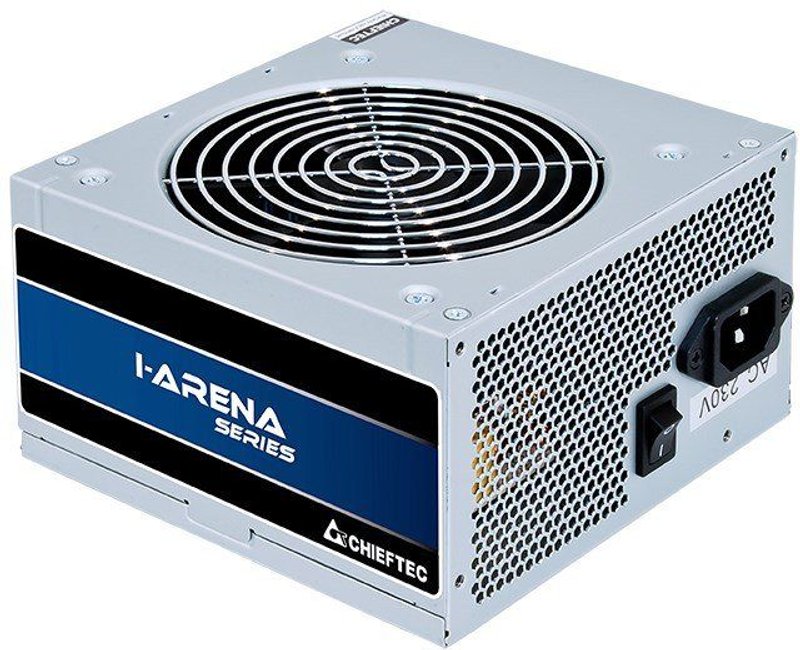

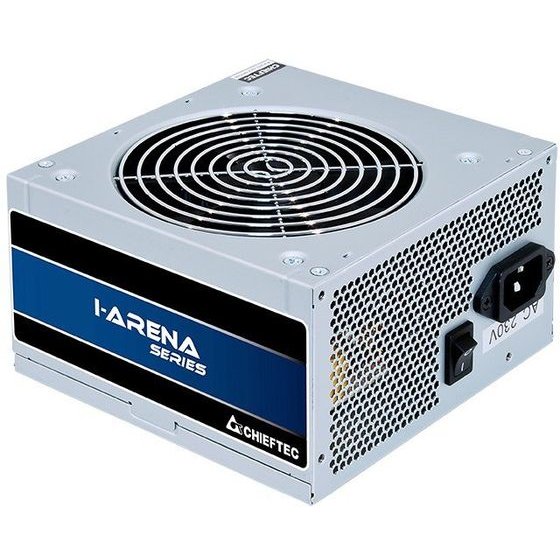

Chieftec Power Supply Unit 500 W 20+4 Pin Atx PS/2 Silver - (GPB-500S)

Design
Number of fans: 1 fan(s)
Fan diameter: 12 cm
Cooling type: Active
On/off switch: Yes
Product colour: Silver
Fan location: Top

Power
AC input voltage: 200 - 240 V
Combined power (+5Vsb): 12.5 W
Input current: 4 A
Max output current (+5Vsb): 2.5 A
Max output current (+12V1): 38 A
Power protection features: Overload, Under voltage, Short circuit, Over voltage
Combined power (+3.3V): 110 W
Total power: 500 W
Power Factor Correction (PFC) type: Active
Power factor: 0.9
Efficiency: 85%
Combined power (+12V): 456 W
Combined power (-12V): 3.6 W
Max output current (-12V): 0.3 A
Max output current (+5V): 17 A
AC input frequency: 47 - 63 Hz
Max output current (+3.3V): 18 A
Combined power (+5V): 110 W

Weight & dimensions
Height: 87 mm
Depth: 150 mm
Width: 140 mm

Performance
Power supply unit (PSU) form factor: PS/2
RoHS compliance: Y
ATX version: 2.3
Purpose: PC

Packaging data
Package type: Box

Ports & interfaces
Number of SATA power connectors: 5
PCI Express power connectors (6+2 pin): 1
Peripheral (Molex) power connectors (4-pin): 3
Motherboard power connector: 20+4 pin ATX

Other features
Warranty card: Yes
Manual: Yes


Warranty: guarantee 24 months
