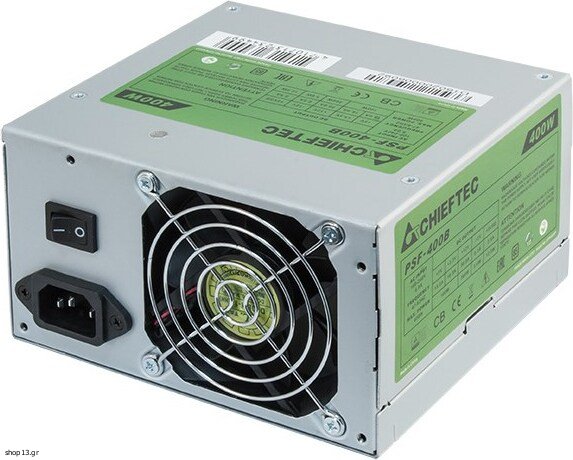

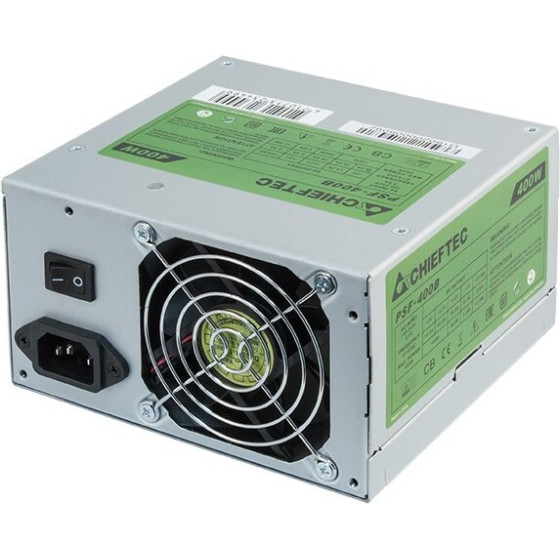

Chieftec power supply unit 400 W 24-pin ATX ATX Metallic - (PSF-400B)

Technical details
Sustainability certificates: ENERGY STAR
Compliance certificates: RoHS

Design
Number of fans: 1 fan(s)
Fan location: Side
Fan diameter: 8 cm
Product colour: Metallic
Cooling type: Active

Power
Max output current (+5Vsb): 2.5 A
Efficiency: 87%
Combined power (-12V): 3.6 W
Max output current (+12V1): 30 A
Max output current (+3.3V): 16 A
Power protection features: Overload, Short circuit
Combined power (+5V): 100 W
Combined power (+5Vsb): 12.5 W
Combined power (+3.3V): 100 W
AC input frequency: 47 - 63 Hz
Combined power (+12V): 360 W
AC input voltage: 100 - 240 V
Max output current (+5V): 15 A
Power Factor Correction (PFC) type: Active
Total power: 400 W
Max output current (-12V): 0.3 A

Weight & dimensions
Height: 87 mm
Width: 150 mm
Depth: 140 mm

Performance
Purpose: PC
Power supply unit (PSU) form factor: ATX
ATX version: 2.3
80 PLUS certification: 80 PLUS Bronze

Ports & interfaces
Cabling type: Non-Modular
EPS power connector (8-pin): Yes
Motherboard power cable length: 45 cm
Peripheral (Molex) power connectors (4-pin): 3
Floppy drive power connector: 1
PCI Express power connectors (6-pin): 1
Motherboard power connector: 24-pin ATX
Number of SATA power connectors: 4

Logistics data
Harmonized System (HS) code: 84733020


Warranty: guarantee 24 months
