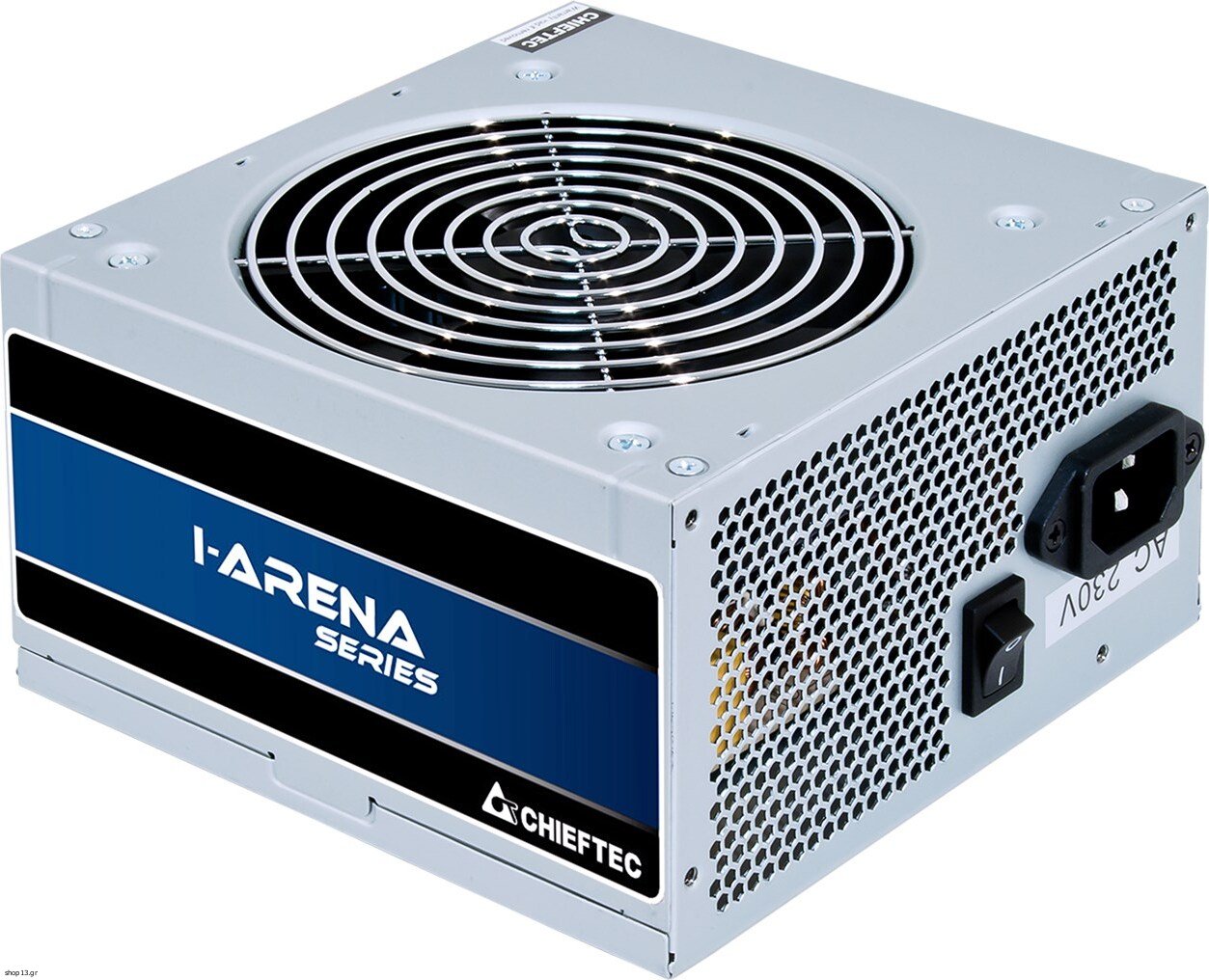

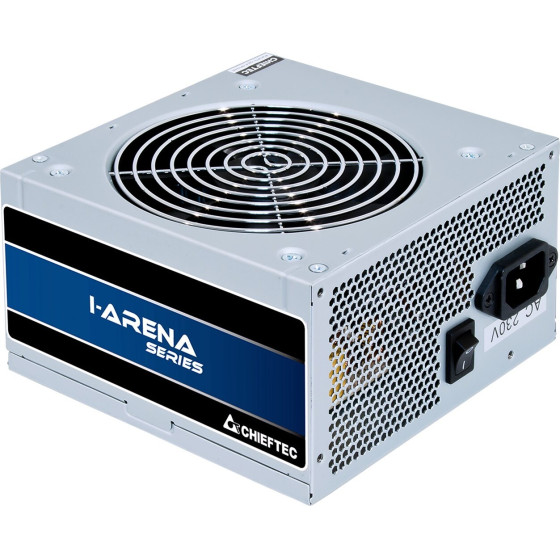

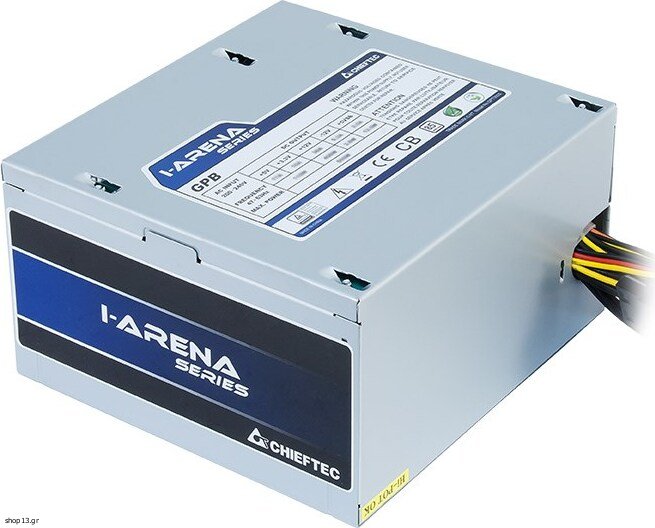

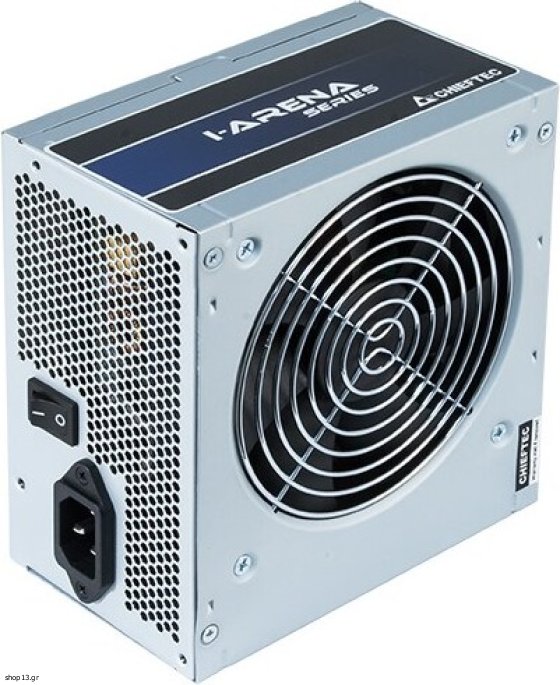

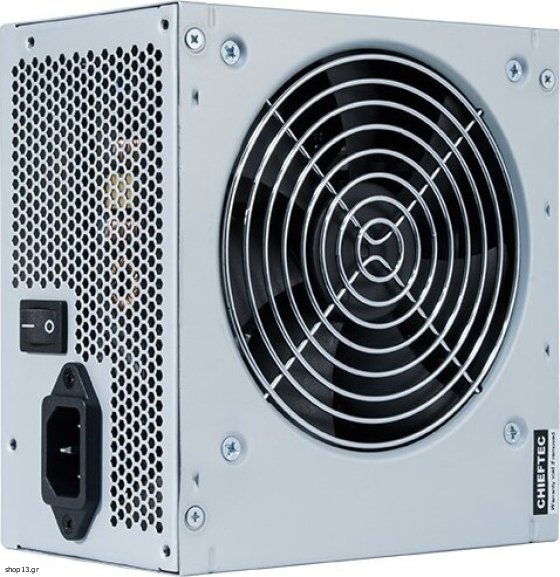

Chieftec power supply unit 400 W 20+4 pin ATX PS/2 Silver - (GPB-400S)

Design
Product colour: Silver
On/off switch: Yes
Fan diameter: 12 cm
Number of fans: 1 fan(s)

Power
AC input voltage: 200 - 240 V
Max output current (+5V): 16 A
Combined power (-12V): 3.6 W
AC input frequency: 47 - 63 Hz
Power protection features: Overload, Short circuit, Over voltage, Under voltage
Max output current (+12V1): 30 A
Power factor: 0.9
Efficiency: 85%
Combined power (+5V): 100 W
Combined power (+5Vsb): 12.5 W
Combined power (+3.3V): 100 W
Max output current (+5Vsb): 2.5 A
Max output current (+3.3V): 17 A
Total power: 400 W
Power Factor Correction (PFC) type: Active
Input current: 3 A
Max output current (-12V): 0.3 A

Weight & dimensions
Width: 150 mm
Height: 87 mm
Depth: 140 mm

Performance
ATX version: 2.3
Power supply unit (PSU) form factor: PS/2
Purpose: PC

Ports & interfaces
Peripheral (Molex) power connectors (4-pin): 3
Motherboard power connector: 20+4 pin ATX
ATX power connector (20+4 pin): Yes
PCI Express power connectors (6+2 pin): 1

Other features
Number of SATA connectors: 5


Warranty: guarantee 24 months
