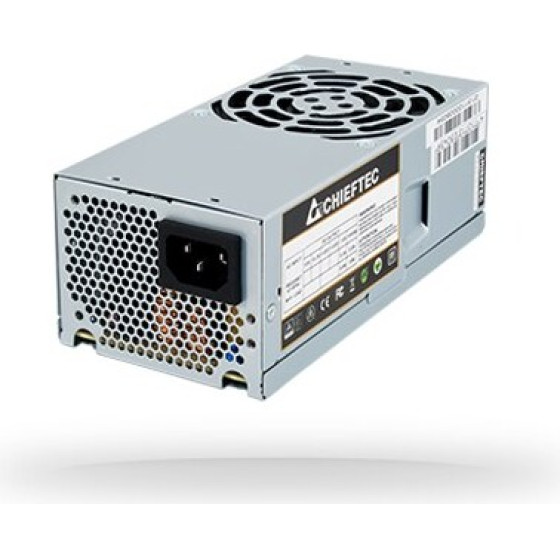

Chieftec power supply unit 350 W 20+4 pin ATX TFX Silver - (GPF-350P)

Technical details
Sustainability certificates: RoHS
Compliance certificates: RoHS

Design
On/off switch: No
Fan diameter: 8 cm
Product colour: Silver
Number of fans: 1 fan(s)

Power
Max output current (+5V): 16 A
Max output current (+12V2): 15 A
Power protection features: Short circuit, Over voltage, Overload
Max output current (+5Vsb): 2 A
AC input frequency: 47 - 63 Hz
Power Factor Correction (PFC) type: Active
Power factor: 0.9
Efficiency: 85%
Total power: 350 W
Combined power (+5V): 100 W
Input current: 6.3 A
Combined power (+3.3V): 100 W
Combined power (+12V): 300 W
Combined power (-12V): 3.6 W
Combined power (+5Vsb): 10 W
Max output current (+12V1): 15 A
AC input voltage: 115 - 230 V
Max output current (-12V): 0.3 A
Max output current (+3.3V): 16 A

Weight & dimensions
Height: 65 mm
Depth: 175 mm
Width: 86 mm

Performance
Purpose: PC
ATX version: 2.3
Bearing technology: Sleeve
Power supply unit (PSU) form factor: TFX

Ports & interfaces
Floppy disk drive connector: Yes
CPU P4 connector (4-pin): 1
Peripheral (Molex) power connectors (4-pin): 2
Number of SATA power connectors: 2
Motherboard power connector: 20+4 pin ATX
Cabling type: Non-Modular

Logistics data
Harmonized System (HS) code: 84733020


Warranty: guarantee 24 months
