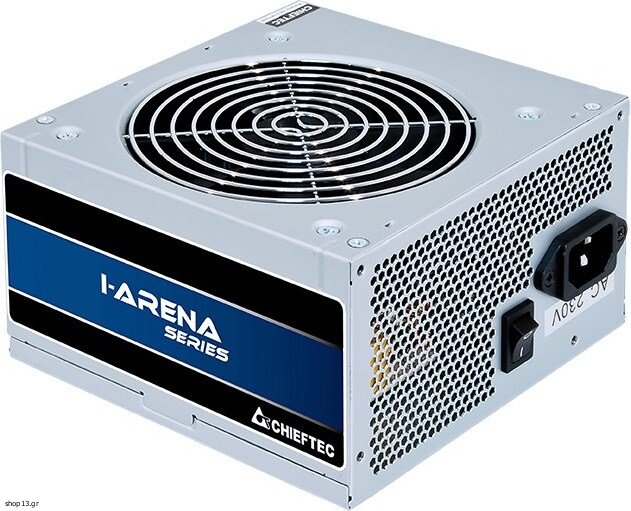

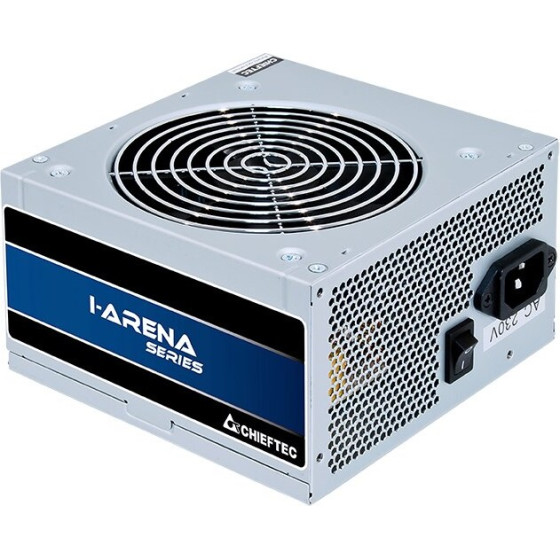

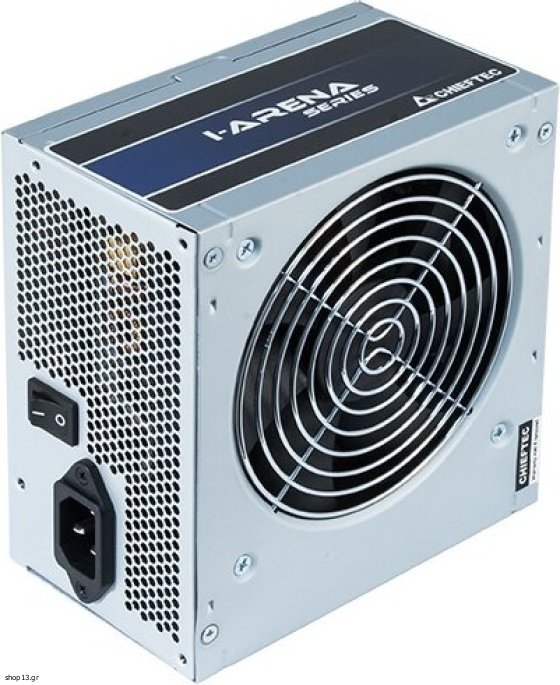

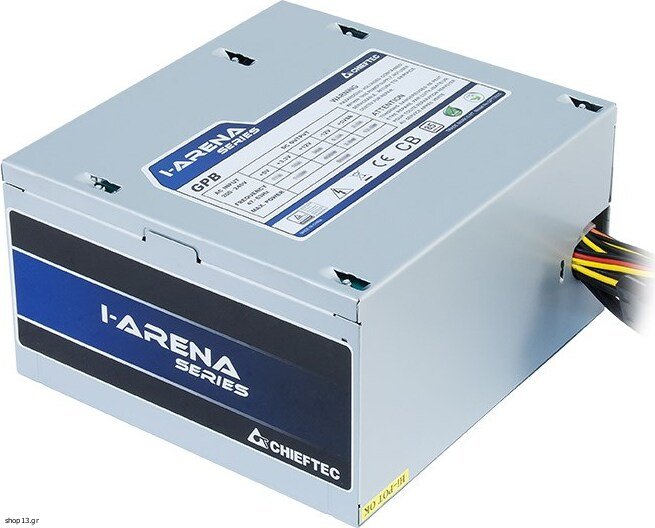

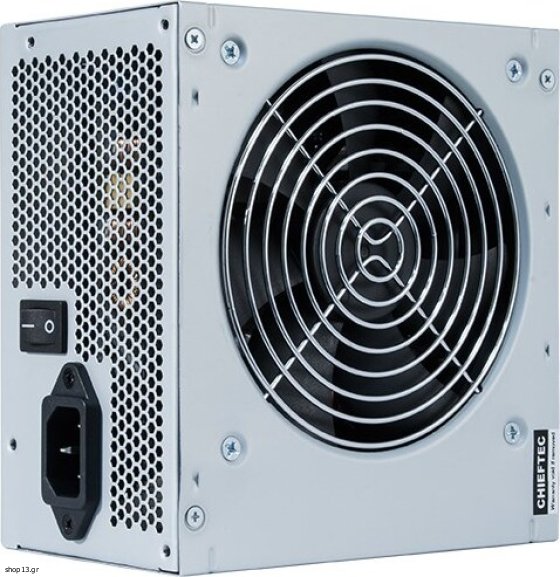

Chieftec power supply unit 350 W 20+4 pin ATX PS/2 Silver - (GPB-350S)

Design
Cooling type: Active
On/off switch: Yes
Fan diameter: 12 cm
Product colour: Silver
Fan location: Top
Number of fans: 1 fan(s)

Power
Combined power (+5Vsb): 12.5 W
AC input frequency: 47 - 63 Hz
Power protection features: Overload, Under voltage, Short circuit, Over voltage
Max output current (+12V1): 26 A
Efficiency: 85%
Combined power (+12V): 312 W
Max output current (+5Vsb): 2.5 A
Combined power (+5V): 90 W
Max output current (+5V): 15 A
Power factor: 0.9
Input current: 3 A
Total power: 350 W
Power Factor Correction (PFC) type: Active
Combined power (-12V): 3.6 W
AC input voltage: 200 - 240 V
Combined power (+3.3V): 90 W
Max output current (-12V): 0.3 A
Max output current (+3.3V): 16 A

Weight & dimensions
Width: 140 mm
Height: 87 mm
Depth: 150 mm

Performance
RoHS compliance: Y
Power supply unit (PSU) form factor: PS/2
ATX version: 2.3
Purpose: PC

Packaging data
Package type: Box

Ports & interfaces
PCI Express power connectors (6+2 pin): 1
Motherboard power connector: 20+4 pin ATX
Peripheral (Molex) power connectors (4-pin): 3
Number of SATA power connectors: 5

Other features
Manual: Yes
Warranty card: Yes


Warranty: warranty 24 months
