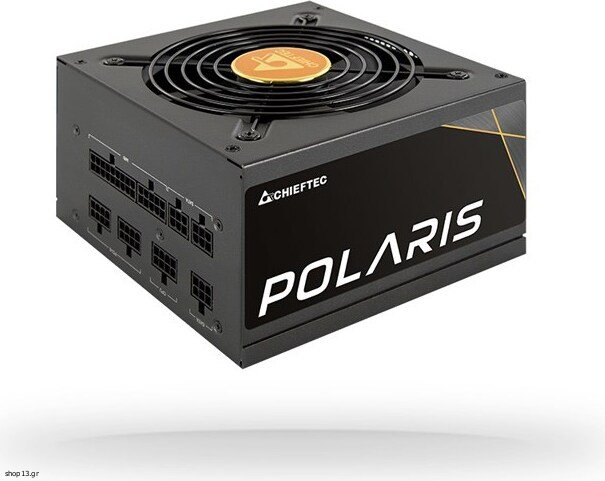

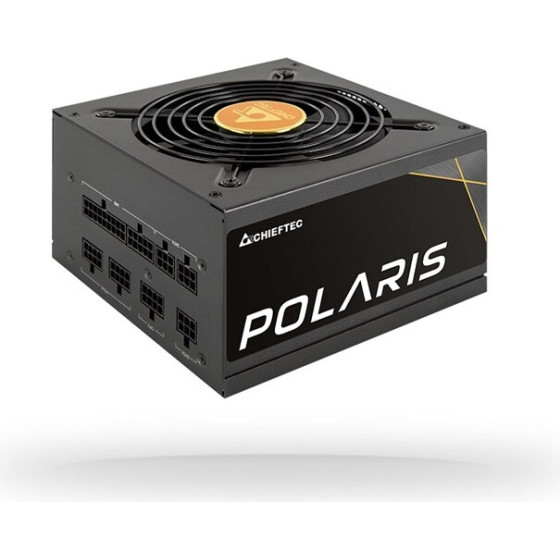

Chieftec Polaris Power Supply Unit 650 W 20+4 Pin Atx PS/2 Black - (PPS-650FC)
[Κωδικός : 759581]
*Το προϊόν δεν ειναι διαθέσιμο και δεν διατίθεται προς πώληση*
Περιγραφή
Design
Fan location: Top
Number of fans: 1 fan(s)
Cooling type: Active
Fan diameter: 12 cm
Product colour: Black
Power
Power protection features: Overheating, Short circuit, Over voltage, Under voltage, Over current, Overload
Total power: 650 W
Combined power (+5Vsb): 15 W
Max output current (+3.3V): 22 A
Combined power (+3.3V): 120 W
Max output current (+12V): 54.2 A
Combined power (+12V): 650 W
Max output current (-12V): 0.3 A
Max output current (+5Vsb): 3 A
Combined power (+5V): 120 W
Power Factor Correction (PFC) type: Active
AC input voltage: 100 - 240 V
Input current: 10 A
AC input frequency: 50 - 60 Hz
Combined power (-12V): 3.6 W
Max output current (+5V): 22 A
Weight & dimensions
Depth: 140 mm
Height: 87 mm
Width: 150 mm
Weight: 2.17 kg
Performance
80 PLUS certification: 80 PLUS Gold
ATX version: 2.4
Power supply unit (PSU) form factor: PS/2
Purpose: PC
Packaging data
Package type: Box
Package weight: 2.48 kg
Certificates
Compliance certificates: RoHS
Ports & interfaces
Motherboard power connector: 20+4 pin ATX
SATA power cable length: 450 mm, 150
Peripheral (Molex) power cable length: 450 mm, 150
Peripheral (Molex) power connectors (4-pin): 3
PCI Express power connectors (6+2 pin): 4
Floppy disk drive connector: Yes
Number of SATA power connectors: 6
PCI Express power cable length: 50 cm
CPU power connector (4+4 pin): Yes
CPU power cable length: 65 cm
Cabling type: Fully-Modular
Motherboard power cable length: 65 cm
Floppy drive power connector: 1
Logistics data
Harmonized System (HS) code: 84733020
Warranty: guarantee 24 months
Fan location: Top
Number of fans: 1 fan(s)
Cooling type: Active
Fan diameter: 12 cm
Product colour: Black
Power
Power protection features: Overheating, Short circuit, Over voltage, Under voltage, Over current, Overload
Total power: 650 W
Combined power (+5Vsb): 15 W
Max output current (+3.3V): 22 A
Combined power (+3.3V): 120 W
Max output current (+12V): 54.2 A
Combined power (+12V): 650 W
Max output current (-12V): 0.3 A
Max output current (+5Vsb): 3 A
Combined power (+5V): 120 W
Power Factor Correction (PFC) type: Active
AC input voltage: 100 - 240 V
Input current: 10 A
AC input frequency: 50 - 60 Hz
Combined power (-12V): 3.6 W
Max output current (+5V): 22 A
Weight & dimensions
Depth: 140 mm
Height: 87 mm
Width: 150 mm
Weight: 2.17 kg
Performance
80 PLUS certification: 80 PLUS Gold
ATX version: 2.4
Power supply unit (PSU) form factor: PS/2
Purpose: PC
Packaging data
Package type: Box
Package weight: 2.48 kg
Certificates
Compliance certificates: RoHS
Ports & interfaces
Motherboard power connector: 20+4 pin ATX
SATA power cable length: 450 mm, 150
Peripheral (Molex) power cable length: 450 mm, 150
Peripheral (Molex) power connectors (4-pin): 3
PCI Express power connectors (6+2 pin): 4
Floppy disk drive connector: Yes
Number of SATA power connectors: 6
PCI Express power cable length: 50 cm
CPU power connector (4+4 pin): Yes
CPU power cable length: 65 cm
Cabling type: Fully-Modular
Motherboard power cable length: 65 cm
Floppy drive power connector: 1
Logistics data
Harmonized System (HS) code: 84733020
Warranty: guarantee 24 months
Χαρακτηριστικά
Μοντέλο
Chieftec Polaris power supply unit 650 W 20+4 pin ATX PS/2 Black - (PPS-650FC)
