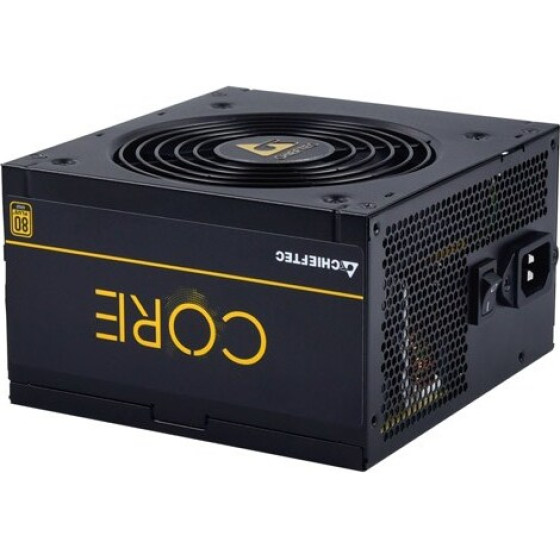

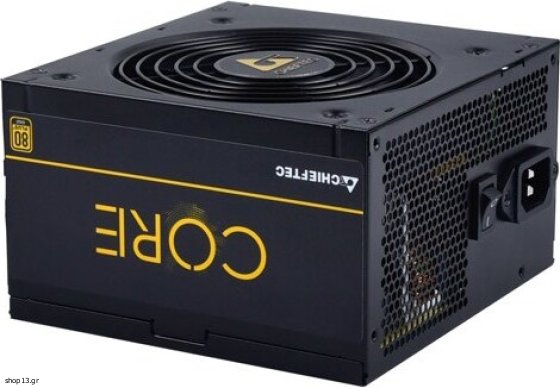

Chieftec Core Power Supply Unit 600 W 24-Pin Atx PS/2 Black - (BBS-600S)

Design
Cooling type: Active
Fan diameter: 12 cm
Product colour: Black
Number of fans: 1 fan(s)

Power
Combined power (-12V): 3.6 W
AC input frequency: 47 - 63 Hz
AC input voltage: 100 - 240 V
Input current: 9 A
Total power: 600 W
Power protection features: Overload, Short circuit, Over voltage
Max output current (+5V): 20 A
Max output current (+3.3V): 20 A
Power Factor Correction (PFC) type: Active
Combined power (+5Vsb): 12.5 W
Max output current (+12V1): 49 A
Max output current (-12V): 0.3 A
Max output current (+5Vsb): 2.5 A

Weight & dimensions
Depth: 150 mm
Height: 86 mm
Weight: 1.67 kg
Width: 140 mm

Performance
Purpose: PC
Power supply unit (PSU) form factor: PS/2
80 PLUS certification: 80 PLUS Gold

Packaging data
Package weight: 2.08 kg

Ports & interfaces
Motherboard power cable length: 65 cm
Peripheral (Molex) power connectors (4-pin): 3
PCI Express power connectors (6+2 pin): 2
SATA power cable length: 500 mm, 150
Cabling type: Non-Modular
Number of SATA power connectors: 6
Peripheral (Molex) power cable length: 150, 500 mm
Motherboard power connector: 24-pin ATX
Floppy drive power connector: 1
CPU power cable length: 65 cm
CPU power connector (4+4 pin): Yes
PCI Express power cable length: 50 cm

Logistics data
Harmonized System (HS) code: 84733020

Safety warning
Warnings: Do not open the case - risk of electric shock., Avoid contact of the product with water or other liquids., The product is not suitable for disposal with municipal waste - dispose of in accordance with local regulations.


Warranty: warranty 24 months
