Περιγραφή
Processor
Compatible processor series: Intel Core i9 13th Gen, Intel Core i5 12th Gen, Intel Core i7 14th Gen, Intel Core i5 13th Gen, Intel Core i9 12th Gen, Intel Core i7 12th Gen, Intel Core i5 14th Gen, Intel Core i3 14th Gen, Intel Core i3 12th Gen, Intel Core i3 13th Gen, Intel Core i7 13th Gen, Intel Core i9 14th Gen
Processor manufacturer: Intel
Processor socket: LGA 1700
Features
PC health monitoring: Temperature, CPU, Fan
Audio output channels: 7.1 channels
Motherboard chipset: Intel Z690
Audio chip: Realtek ALC897
Motherboard form factor: micro ATX
Windows operating systems supported: Windows 11 x64, Windows 10 x64
Motherboard chipset family: Intel
Memory
Supported memory clock speeds: 2933, 3600, 3800, 1866, 4400, 2400, 2133, 3200 MHz, 2666, 4000
Maximum internal memory: 64 GB
ECC ?ompatibility: Non-ECC
Memory channels: Dual-channel
Number of memory slots: 2
Memory slots type: DIMM
Supported memory types: DDR4-SDRAM
Weight & dimensions
Width: 208 mm
Depth: 236 mm
Network
LAN controller: Realtek RTL8125B
Wi-Fi: No
Ethernet LAN: Yes
Ethernet interface type: 2.5 Gigabit Ethernet
Internal I/O
Number of COM connectors: 1
TPM connector: Yes
EPS power connector (8-pin): Yes
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2
Number of SATA III connectors: 4
CPU fan connector: Yes
Front panel connector: Yes
ATX Power connector (24-pin): Yes
USB 2.0 connectors: 4
Number of chassis fan connectors: 1
BIOS
BIOS type: UEFI
Packaging content
Drivers included: Yes
Cables included: SATA
Storage controllers
Supported storage drive interfaces: M.2, SATA III
Supported storage drive types: HDD & SSD
RAID levels: 1, 10, 0, 5
Number of HDDs supported: 5
RAID support: Yes

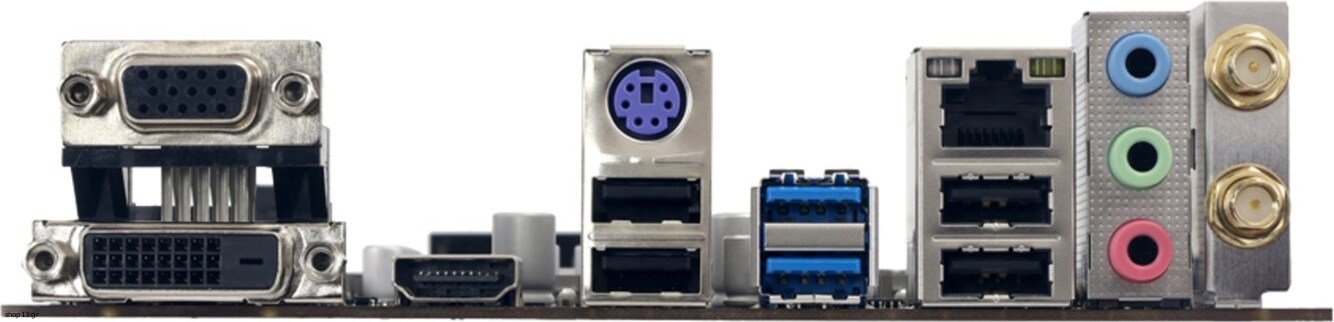

Rear panel I/O ports
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
Ethernet LAN (RJ-45) ports: 1
USB 2.0 ports quantity: 4
HDMI ports quantity: 1
VGA (D-Sub) ports quantity: 1
DVI-D ports quantity: 1
PS/2 ports quantity: 1
Expansion slots
Number of M.2 (M) slots: 1
PCI Express x16 (Gen 4.x) slots: 1
PCI Express x1 (Gen 3.x) slots: 1
Safety warning
Warnings: Avoid direct contact with electronics to prevent electrostatic damage., Before starting any maintenance or installation, disconnect the product from the power supply., Do not dispose of the motherboard in the ordinary rubbish bin; the product requires special disposal.
Warranty: warranty 36 months
