Processor
Compatible processor series: Intel(R) Core(TM) i5, Intel(R) Celeron(R), Intel(R) Core(TM) i7, Intel(R) Core(TM) i3, Intel(R) Pentium(R)
Processor socket: LGA 1155 (Socket H2)
Processor manufacturer: Intel
Supported processor sockets: LGA 1155 (Socket H2)
Features
Windows operating systems supported: Windows 10, Windows 7, Windows 8, Windows 8.1
PC health monitoring: Fan, CPU, Temperature, Voltage
Audio output channels: 7.1 channels
Audio chip: Realtek ALC897
Motherboard chipset: Intel(R) H61
Motherboard chipset family: Intel
Motherboard form factor: micro ATX
Memory
Supported memory module capacities: 8GB, 512MB, 1GB, 16GB, 2GB, 4GB
Supported memory types: DDR3-SDRAM
Supported memory clock speeds: 1066, 1600, 1333
Memory slots type: DIMM
Number of memory slots: 2
Memory channels: Dual-channel
ECC ?ompatibility: Non-ECC
Weight & dimensions
Height: 191 mm
Width: 170 mm
Network
LAN controller: Realtek RTL8111H
Ethernet LAN: Yes
Ethernet interface type: 10 Gigabit Ethernet, 100 Gigabit Ethernet
Internal I/O
Front panel audio connector: Yes
USB 2.0 connectors: 2
CPU fan connector: Yes
Audio connector: Yes
Number of chassis fan connectors: 2
Number of SATA II connectors: 4
Packaging content
User guide: Yes
Cables included: SATA
Drivers included: Yes
Storage controllers
Supported storage drive interfaces: SATA II
Number of storage drives supported: 4

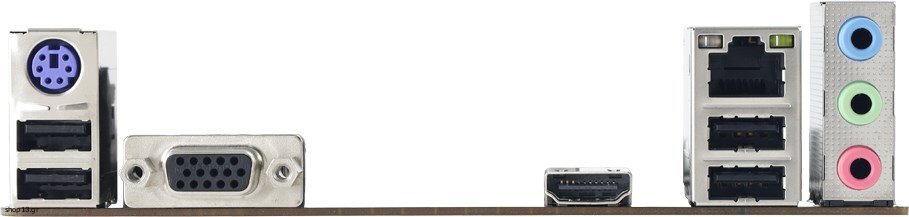

Rear panel I/O ports
PS/2 ports quantity: 1
USB 2.0 ports quantity: 4
HDMI ports quantity: 1
VGA (D-Sub) ports quantity: 1
Ethernet LAN (RJ-45) ports: 1
Headphone outputs: 3
Expansion slots
PCI Express slots version: 3.0, 2.0
PCI Express x16 (Gen 3.x) slots: 1
PCI Express x1 (Gen 2.x) slots: 1
Logistics data
Harmonized System (HS) code: 84733020
Warranty: warranty 24 months
