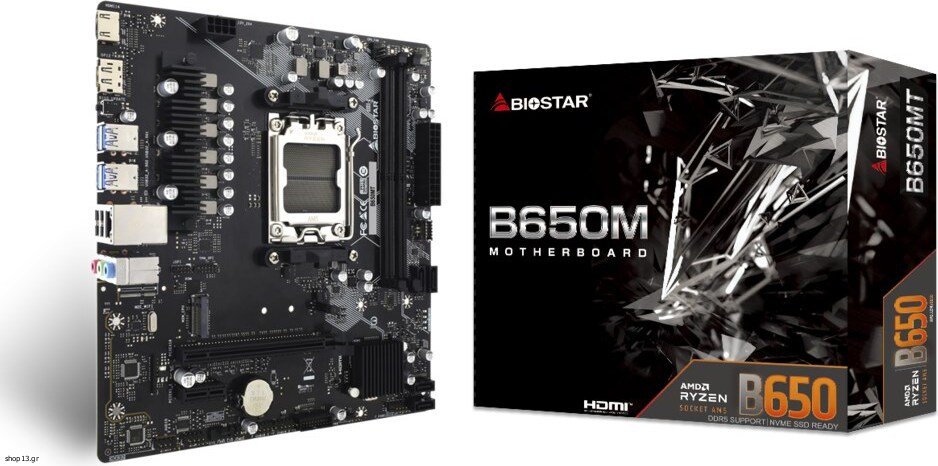

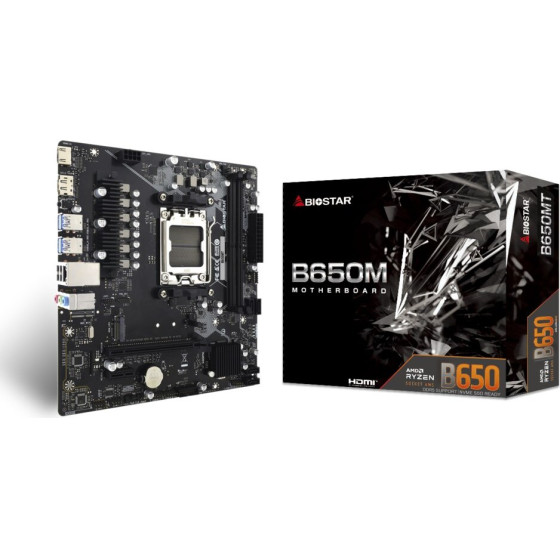

Biostar motherboard AMD B650 Socket AM5 micro ATX - (B650MT)

Processor
Processor manufacturer: AMD
Supported processor sockets: Socket AM5
Compatible processor series: AMD Ryzen(TM) 7
Processor socket: Socket AM5

Graphics
HDCP: Yes
DirectX version: 12.0
Maximum resolution: 4096 x 2160 pixels

Features
Motherboard chipset family: AMD
Product colour: Silver, Black
Motherboard form factor: micro ATX
PC health monitoring: CPU, Fan, Voltage, Temperature
Motherboard chipset: AMD B650
Audio chip: Realtek ALC897
Audio output channels: 7.1 channels
Windows operating systems supported: Windows 10 x64, Windows 11 x64

Memory
Supported memory clock speeds: 5600, 4800, 5200, 6000, 5400
Maximum internal memory: 96 GB
Memory channels: Dual-channel
Supported memory module capacities: 32GB, 48GB, 16GB, 8GB
ECC ?ompatibility: Non-ECC
Supported memory types: DDR5-SDRAM
Memory slots type: DIMM
Number of memory slots: 2

Weight & dimensions
Depth: 235 mm
Width: 221 mm

Network
LAN controller: Realtek RTL8111H
Ethernet LAN: Yes
Ethernet interface type: Gigabit Ethernet

Internal I/O
USB 3.2 Gen 2 (3.1 Gen 2) connectors: 1
Number of SATA III connectors: 4
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
ATX Power connector (24-pin): Yes
Front panel audio connector: Yes
CPU fan connector: Yes
USB 2.0 connectors: 2
TPM connector: Yes
Number of COM connectors: 1
Front panel connector: Yes
Number of chassis fan connectors: 1
12V power connector: Yes
Audio connector: Yes

BIOS
Clear CMOS jumper: Yes

Packaging content
Drivers included: Yes
Cables included: SATA

Storage controllers
Supported storage drive types: HDD & SSD
Supported storage drive interfaces: M.2, PCI Express 4.0, SATA III
RAID support: Yes
RAID levels: 1, 0, 10

Rear panel I/O ports
DisplayPorts quantity: 1
Ethernet LAN (RJ-45) ports: 1
HDMI ports quantity: 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4
DisplayPort version: 1.2
USB 2.0 ports quantity: 2
HDMI version: 1.4

Expansion slots
PCI Express x1 (Gen 3.x) slots: 1
Number of M.2 (M) slots: 1
PCI Express x16 (Gen 4.x) slots: 1

Safety warning
Warnings: Do not disassemble to avoid damage to internal components and loss of warranty., Avoid contact with liquids to prevent electronic damage., Dispose of in accordance with local regulations for electronic waste.


Warranty: warranty 24 months
