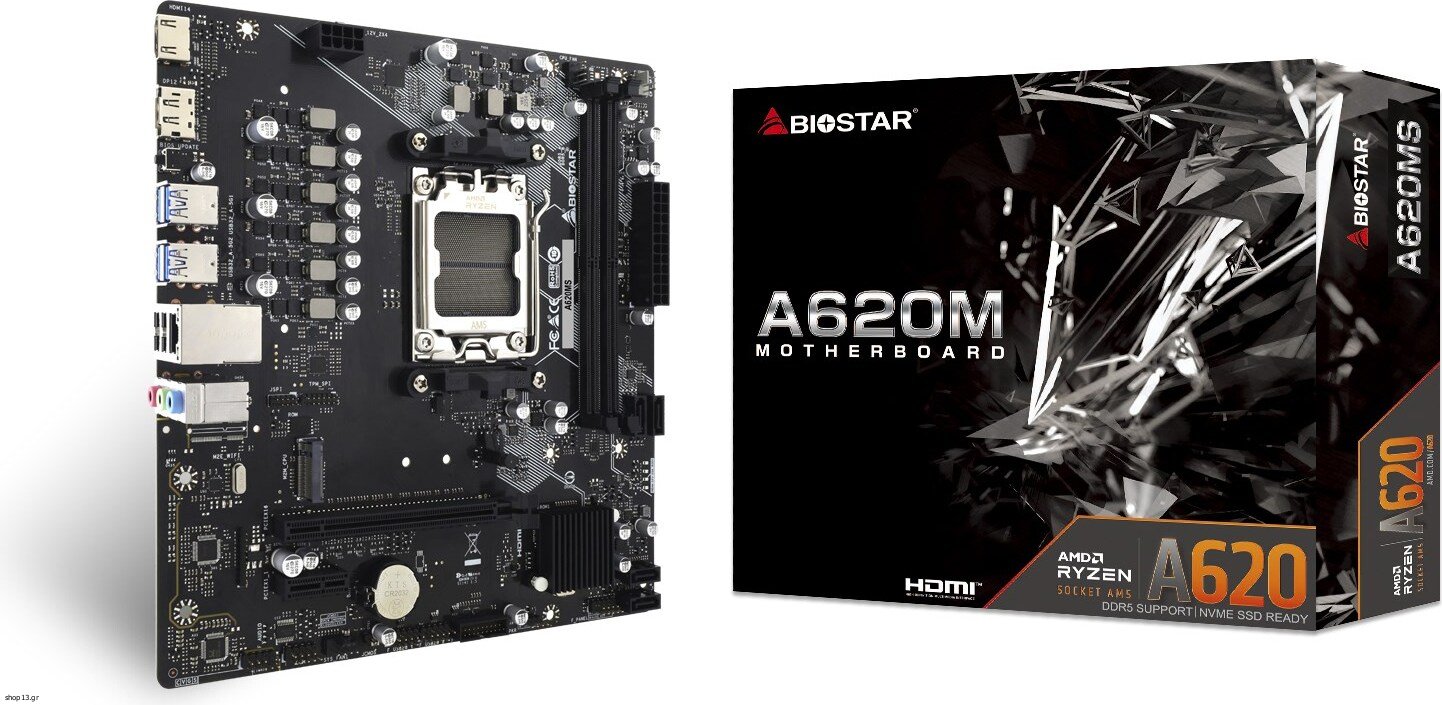

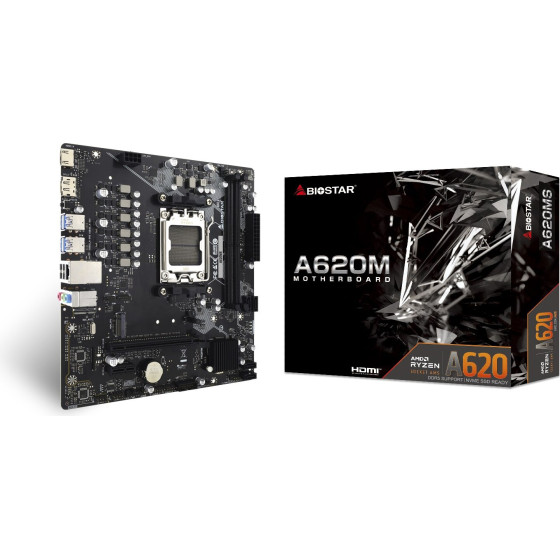

Biostar motherboard AMD A620 Socket AM5 micro ATX - (A620MS)

Processor
Compatible processor series: AMD Ryzen 9000 Series, AMD Ryzen 7000 Series, AMD Ryzen 8000 Series
Processor manufacturer: AMD
Processor socket: Socket AM5

Graphics
HDCP: Yes

Features
Motherboard chipset family: AMD
Audio chip: Realtek ALC897
Motherboard chipset: AMD A620
Audio output channels: 7.1 channels
Motherboard form factor: micro ATX

Memory
Maximum internal memory: 128 GB
Supported memory types: DDR5-SDRAM
Number of memory slots: 2
Memory slots type: DIMM

Weight & dimensions
Depth: 235 mm
Width: 221 mm

Network
LAN controller: Realtek RTL8111H
Wi-Fi: No
Ethernet LAN: Yes
Ethernet interface type: Gigabit Ethernet

Internal I/O
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
Number of SATA III connectors: 4
ATX Power connector (24-pin): Yes
USB 2.0 connectors: 2
CPU fan connector: Yes
EPS power connector (8-pin): Yes
TPM connector: Yes
Audio connector: Yes
Front panel connector: Yes
Number of EPS power connectors (8-pin): 1

Packaging content
Drivers included: Yes
Cables included: SATA

Storage controllers
Supported storage drive interfaces: SATA III

Rear panel I/O ports
DisplayPorts quantity: 1
Ethernet LAN (RJ-45) ports: 1
DisplayPort version: 1.2
USB 2.0 ports quantity: 2
HDMI version: 1.4
HDMI ports quantity: 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4

Expansion slots
PCI Express x1 (Gen 3.x) slots: 1
PCI Express x16 (Gen 4.x) slots: 1


Warranty: warranty 24 months
