Περιγραφή
Processor
Supported processor sockets: Socket AM4
Compatible processor series: AMD Ryzen 5000 Series, AMD Ryzen 3000 Series, AMD Ryzen 4000 Series
Processor socket: Socket AM4
Processor manufacturer: AMD
Graphics
HDCP: Yes
DirectX version: 12.0
Features
Motherboard chipset family: AMD
Motherboard chipset: AMD A520
Power source type: ATX
Audio chip: Realtek ALC897
Motherboard form factor: micro ATX
Audio output channels: 7.1 channels
Windows operating systems supported: Windows 11, Windows 10
Supported processor sockets (cooler): Socket AM4
Memory
Supported memory types: DDR4-SDRAM
Supported memory module capacities: 8GB, 32GB, 16GB
Supported memory clock speeds: 3800, 2667, 4400, 2933, 3600, 4133, 4000, 2400, 3200 MHz, 4266, 2133
Maximum internal memory: 64 GB
Number of memory slots: 2
Memory slots type: SO-DIMM
Memory channels: Dual-channel
ECC ?ompatibility: Non-ECC
Supported memory clock speed (max): 4400 MHz
Weight & dimensions
Depth: 190 mm
Width: 235 mm
Network
Bluetooth: No
Wi-Fi: No
LAN controller: Realtek RTL8111H
Ethernet LAN: Yes
Ethernet interface type: Gigabit Ethernet
Internal I/O
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
Power fan connector: Yes
USB 2.0 connectors: 2
Front panel connector: Yes
CPU fan connector: Yes
Number of SATA III connectors: 4
Audio connector: Yes
Front panel audio connector: Yes
ATX Power connector (24-pin): Yes
BIOS
BIOS type: UEFI
Storage controllers
Supported storage drive interfaces: M.2, PCI Express 3.0, SATA III
RAID levels: 1, 0, 10
Supported storage drive types: HDD & SSD
Number of storage drives supported: 1
RAID support: Yes
Number of HDDs supported: 4

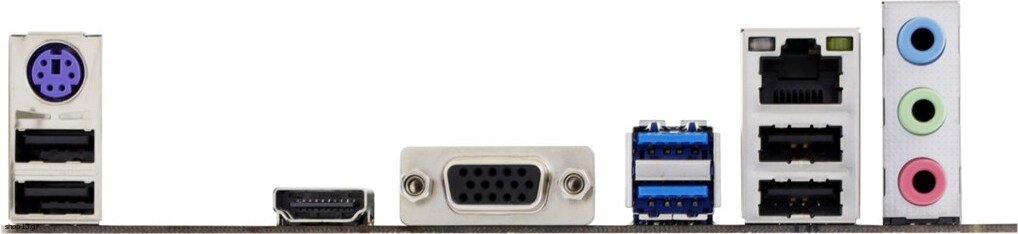

Rear panel I/O ports
Ethernet LAN (RJ-45) ports: 1
Line-in: Yes
PS/2 ports quantity: 1
Microphone in: Yes
VGA (D-Sub) ports quantity: 1
USB 2.0 ports quantity: 4
Headphone outputs: 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
HDMI ports quantity: 1
Expansion slots
PCI Express x1 (Gen 3.x) slots: 2
PCI Express x16 slots: 1
