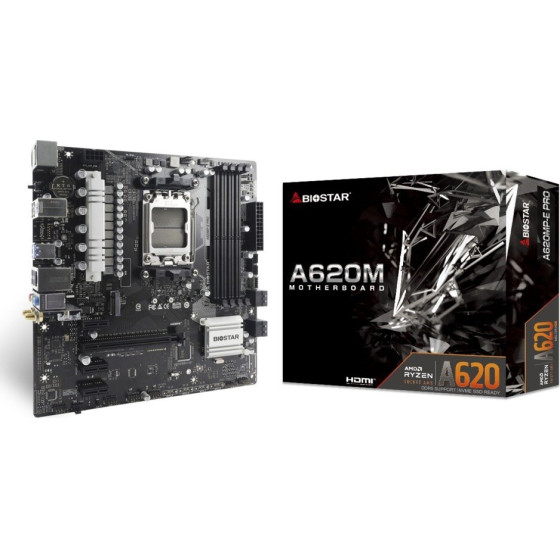

Biostar motherboard - (A620MP-E PRO)

Processor
Processor manufacturer: AMD
Supported processor sockets: Socket AM5
Processor socket: Socket AM5
Compatible processor series: AMD Ryzen

Features
Motherboard chipset: AMD A620
Windows operating systems supported: Yes
Power source type: ATX
Audio chip: Realtek ALC897
Cooling type: Passive
Hi-Fi: Yes
Audio output channels: 7.1 channels
Motherboard form factor: micro ATX
Motherboard chipset family: AMD

Memory
Supported memory clock speeds: 4800, 6000, 5200, 5600, 5400
Memory channels: Dual-channel
Memory slots type: DIMM
Maximum internal memory: 128 GB
Number of memory slots: 4
Supported memory types: DDR5-SDRAM

Weight & dimensions
Width: 244 mm
Depth: 244 mm

Network
Yes (no WiFi card included): Yes (no WiFi card included)
Ethernet LAN: Yes
Ethernet interface type: Gigabit Ethernet

Internal I/O
Number of SATA III connectors: 4
USB 3.2 Gen 2 (3.1 Gen 2) connectors: 1
EPS power connector (8-pin): Yes
TPM connector: Yes
Number of M.2 (E) slots: 1
Number of COM connectors: 1
Front panel connector: Yes
Front panel audio connector: Yes
USB 2.0 connectors: 2
USB Type-C connector: Yes
COM ports quantity: 1
ATX Power connector (24-pin): Yes
Number of chassis fan connectors: 1

Packaging content
Cables included: SATA
Drivers included: Yes
Set contents: WiFi antenna accessories

Storage controllers
Supported storage drive types: HDD & SSD
Supported storage drive interfaces: M.2, PCI Express 4.0, SATA III

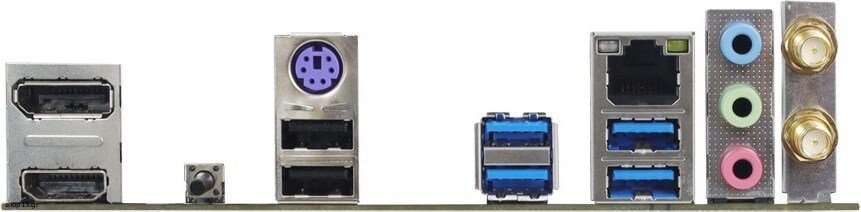

Rear panel I/O ports
USB 2.0 ports quantity: 2
HDMI ports quantity: 1
Audio ports quantity: 3
Ethernet LAN (RJ-45) ports: 1
WiFi-AP antenna jack: 2
PS/2 ports quantity: 1
DisplayPorts quantity: 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4


Warranty: warranty 24 months
