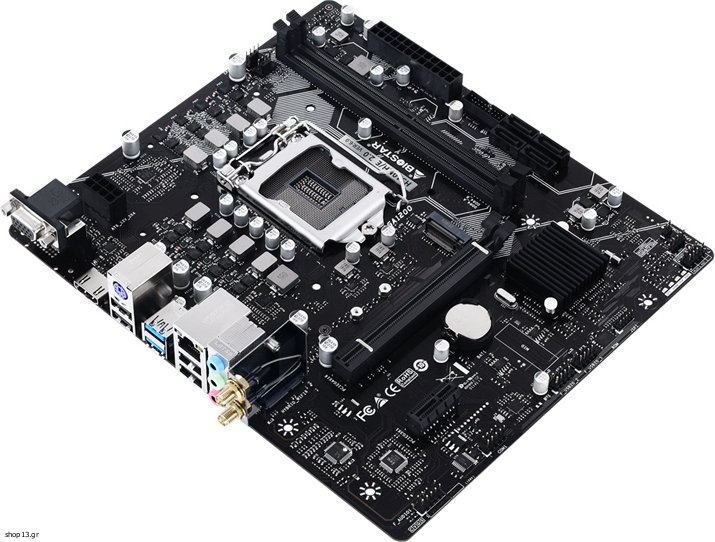

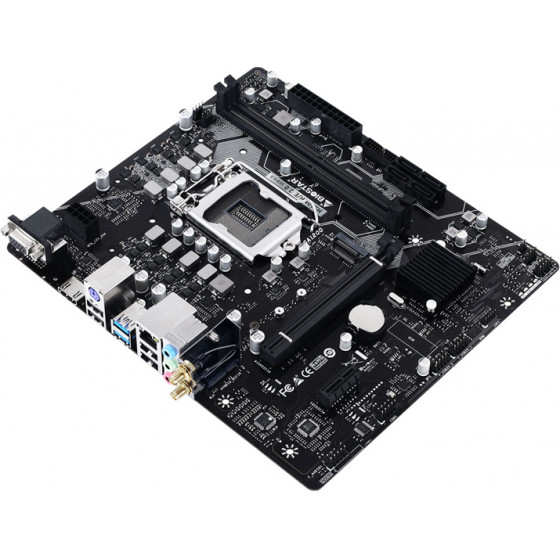

Biostar μητρική H510MH 2.0 2x DDR4 s1200 USB 3.2 uATX GbE Ver 6.2 - (H510MH-2)
[Κωδικός : 244660]
*Το προϊόν δεν ειναι διαθέσιμο και δεν διατίθεται προς πώληση*
Περιγραφή
BIOSTAR μητρική H510MH 2.0, 2x DDR4, s1200, USB 3.2, uATX, GbE, Ver 6.2Η H510MH 2.0 της Biostar είναι μια αξιόπιστη μητρική κάρτα, ιδανική για χρήση τόσο σε home PC όσο και σε bussiness PC. Κατασκευάζεται από αξιόπιστα components και εξοπλίζεται με όλες τις σύγχρονες τεχνολογίες που προσφέρουν αυξημένες ταχύτητες και σταθερή απόδοση. Υποστηρίζει επεξεργαστές οι οποίοι είναι συμβατοί με το socket s1200 και βασίζεται στο chipset H510 της Intel.
Διαθέτει δυο εξόδους γραφικών: D-Sub Port και HDMI.-Supports 10th/11th Generation Intel Core(TM) Processor
-Intel H510 single chip architecture
-Supports 2-DIMM DDR4- 3200/ 2933/ 2666/ 2400/2133/ 1866 up to 64 GB Memory
-Supports PCIe 4.0
-Supports PCIe M.2 3.0 (32Gb/s)
-Supports USB 3.2 Gen1
-Supports WiFi 6 module (No WiFi 6 card included)Τεχνικά χαρακτηριστικά
CPU: Support for 10th/11th Generation Intel Core i9/i7/i5/i3 processors and Intel Pentium processors/ Intel Celeron processors in the LGA1200 package
Chipset: Intel H510
Memory: Supports Dual Channel DDR4 3200/2933/2666/2400/2133/1866, 2x DDR4 DIMM Memory Slot, Max. Supports up to 64 GB Memory, Each DIMM supports non-ECC 4/8/16/32GB DDR4 module
Integrated video: By CPU model, Supports DX12, Supports HDCP, Supports HDMI 1.4 version
Audio: ALC897, 7.1 Channels, High Definition Audio
LAN: Intel I219V 10/ 100/ 1000 Mb/s auto negotiation, Half / Full duplex capability
Slots: 1x PCIe 3.0 x1 Slot, 1x PCIe 3.0/ 4.0 x16 Slot (x16 mode)
Storage: Total supports 1x M.2 socket and 4x SATA III (6Gb/s) ports, 4x SATA III Connectors (6Gb/s), 1x M.2 (M Key) Socket: Supports M.2 Type 2242/ 2260/ 2280 SSD module, Supports PCIe 3.0 x4 (32Gb/s) - NVMe/ AHCI SSD & SATA III (6Gb/s) SSD
Form Factor: Micro ATX 20.8 cm x 23.6 cm ( W x L )
USB: 4x USB 3.2(Gen1) ports (2 on rear I/Os and 2 via internal headers), 8x USB 2.0 ports (4 on rear I/Os and 4 via internal headers)
REAR I/O:
2x WIFI Antenna Ports
1x PS/2 Keyboard / Mouse
1x HDMI Port
1x VGA Port
2x USB 3.2 (Gen1) Ports
4x USB 2.0 Port
1x LAN port
3x Audio Jack
INTERNAL I/O
4x SATA III Connectors (6Gb/s)
1x M.2 (E Key) Socket : Supports 2230 type Wi-Fi & Bluetooth module and Intel CNVi
2x USB 2.0 Header (each header supports 2 USB 2.0 ports)
1x USB 3.2 (Gen1) Header (each header supports 2 USB 3.2 (Gen1) ports)
1x 8-Pin Power Connector
1x 24-Pin Power Connector
1x CPU Fan Connector
1x System Fan Connector
1x Front Panel Header
1x Front Audio Header
1x Internal Stereo Speaker Header
1x Clear CMOS Header
1x COM Port Header
*M.2 (E key) Wi-Fi card is not provided
H/W Monitoring: CPU / System Temperature Monitoring, CPU / System Fan Monitoring, Smart / Manual CPU Fan Control, System Voltage Monitoring
Κωδικός είδους:H510MH-2
Κατασκευαστής:BIOSTAR
Εγγύηση:24 μήνες
Διαστάσεις Συσκευασίας:27 x 6.5 x 22.5 cm
Βάρος Συσκευασίας:0.7 Kg
Τύπος συσκευασίας:Retail
Διαθέτει δυο εξόδους γραφικών: D-Sub Port και HDMI.-Supports 10th/11th Generation Intel Core(TM) Processor
-Intel H510 single chip architecture
-Supports 2-DIMM DDR4- 3200/ 2933/ 2666/ 2400/2133/ 1866 up to 64 GB Memory
-Supports PCIe 4.0
-Supports PCIe M.2 3.0 (32Gb/s)
-Supports USB 3.2 Gen1
-Supports WiFi 6 module (No WiFi 6 card included)Τεχνικά χαρακτηριστικά
CPU: Support for 10th/11th Generation Intel Core i9/i7/i5/i3 processors and Intel Pentium processors/ Intel Celeron processors in the LGA1200 package
Chipset: Intel H510
Memory: Supports Dual Channel DDR4 3200/2933/2666/2400/2133/1866, 2x DDR4 DIMM Memory Slot, Max. Supports up to 64 GB Memory, Each DIMM supports non-ECC 4/8/16/32GB DDR4 module
Integrated video: By CPU model, Supports DX12, Supports HDCP, Supports HDMI 1.4 version
Audio: ALC897, 7.1 Channels, High Definition Audio
LAN: Intel I219V 10/ 100/ 1000 Mb/s auto negotiation, Half / Full duplex capability
Slots: 1x PCIe 3.0 x1 Slot, 1x PCIe 3.0/ 4.0 x16 Slot (x16 mode)
Storage: Total supports 1x M.2 socket and 4x SATA III (6Gb/s) ports, 4x SATA III Connectors (6Gb/s), 1x M.2 (M Key) Socket: Supports M.2 Type 2242/ 2260/ 2280 SSD module, Supports PCIe 3.0 x4 (32Gb/s) - NVMe/ AHCI SSD & SATA III (6Gb/s) SSD
Form Factor: Micro ATX 20.8 cm x 23.6 cm ( W x L )
USB: 4x USB 3.2(Gen1) ports (2 on rear I/Os and 2 via internal headers), 8x USB 2.0 ports (4 on rear I/Os and 4 via internal headers)
REAR I/O:
2x WIFI Antenna Ports
1x PS/2 Keyboard / Mouse
1x HDMI Port
1x VGA Port
2x USB 3.2 (Gen1) Ports
4x USB 2.0 Port
1x LAN port
3x Audio Jack
INTERNAL I/O
4x SATA III Connectors (6Gb/s)
1x M.2 (E Key) Socket : Supports 2230 type Wi-Fi & Bluetooth module and Intel CNVi
2x USB 2.0 Header (each header supports 2 USB 2.0 ports)
1x USB 3.2 (Gen1) Header (each header supports 2 USB 3.2 (Gen1) ports)
1x 8-Pin Power Connector
1x 24-Pin Power Connector
1x CPU Fan Connector
1x System Fan Connector
1x Front Panel Header
1x Front Audio Header
1x Internal Stereo Speaker Header
1x Clear CMOS Header
1x COM Port Header
*M.2 (E key) Wi-Fi card is not provided
H/W Monitoring: CPU / System Temperature Monitoring, CPU / System Fan Monitoring, Smart / Manual CPU Fan Control, System Voltage Monitoring
Κωδικός είδους:H510MH-2
Κατασκευαστής:BIOSTAR
Εγγύηση:24 μήνες
Διαστάσεις Συσκευασίας:27 x 6.5 x 22.5 cm
Βάρος Συσκευασίας:0.7 Kg
Τύπος συσκευασίας:Retail
