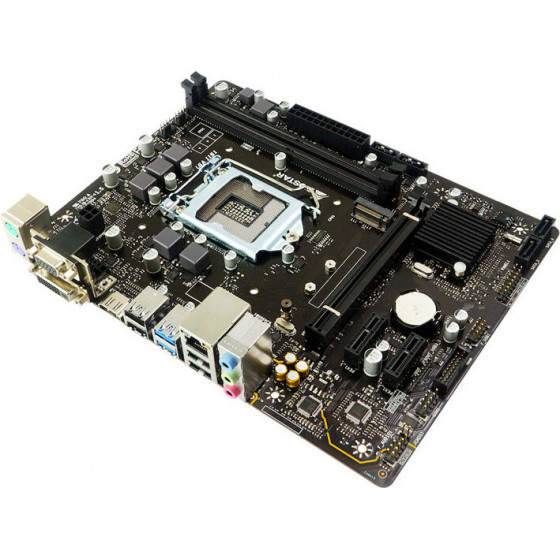

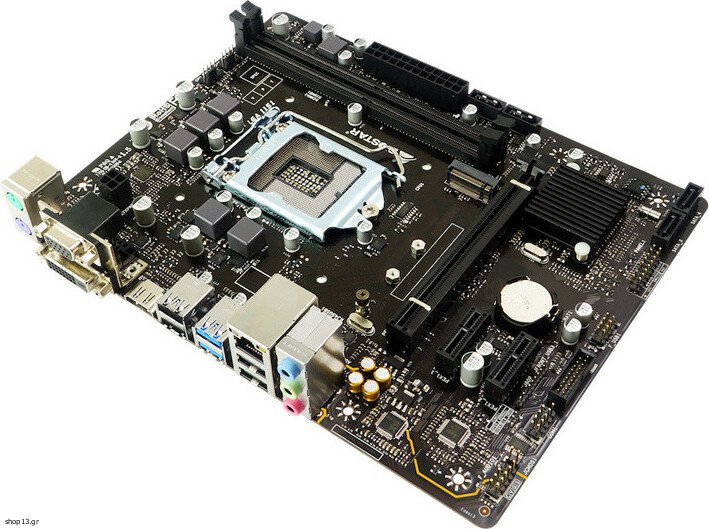

Biostar Μητρική H310MHD 2x DDR4 s1151 USB 3.1 HDMI mATX Ver. 6.0 - (H310MHD-PR02)

BIOSTAR Μητρική H310MHD, 2x DDR4, s1151, USB 3.1, HDMI, mATX, Ver. 6.0

-Supports 9th & 8th Generation Intel(R) Core(TM) Processor
-Intel H310 single chip architecture
-Support 2-DIMM DDR4-1866/ 2133/ 2400/ 2666 up to 32G maximum capacity
-Support USB 3.1 Gen1
-Support HDMI display port
-Support GbE LAN
Τεχνικά Χαρακτηριστικά
Chipset: Intel H310
CPU SUPPORT: 9th Gen Intel(R) Core(TM) i9 LGA, i7 LGA, i5 LGA , i3 LGA
8th Gen Intel(R) Core(TM) i7 LGA, i5 LGA, i3 LGA, Pentium LGA, Celeron LGA
Maximum CPU TDP (Thermal Design Power) : 95Watt
MEMORY: Support Dual Channel DDR4 1866/2133/2400/2666 MHz, 2x DDR4 DIMM Memory Slot, Max. Supports up to 32GB Memory
Each DIMM supports non-ECC 4/8/16GB DDR4 module
Integrated video: By CPU model, Supports DX12, HDCP
STORAGE: 4x SATA III Connectors, 1x M.2 Key M Connector (10Gb/s) : Supports PCI-E SSD
LAN: Realtek RTL8111H - 10/100/1000Mb/s Controller
CODEC: Realtek ALC887 8-Channel HD Audio, Support HD Audio
USB: 4x USB 3.1 Gen1 Ports (2 on rear I/Os and 2 via internal header)
6x USB 2.0 Ports (4 on rear I/Os and 2 via internal header)
Expansion slot: 1x PCI-E 3.0 x16 Slot, 2x PCI-E 2.0 x1 Slots
Rear I/O:
1x PS/2 Mouse
1x PS/2 Keyboard
2x USB 3.1 Gen1 Ports
4x USB 2.0 Ports
1x HDMI Connector, resoltuion up to 4096*2160 @24Hz
1x DVI-D Connector, resolution up to 1920*1200 @60Hz
1x VGA Port, resolution up to 1920*1200 @60Hz
1x LAN Port
3x Audio Jacks
Internal I/O:
1x USB 3.1 Gen1 Header (each header support 2 USB 3.1(Gen1) ports)
1x USB 2.0 Header (each header supports 2 USB 2.0 ports)
4x SATA III 6Gb/s Connectors
1x Front Audio Header
1x Front Panel Header
1x CPU Fan Connector
1x System Fan Connector
1x 4-Pin Power Connector
1x 24-Pin Power Connector
1x Clear CMOS Header
1x COM Port Header
H/W Monitoring: CPU / System Temperature Monitoring,  CPU / System Fan Monitoring, Smart / Manual CPU Fan Control, System Voltage Monitoring
Dimensios: Micro ATX Form Factor Dimension: 22.8 cm x 17.7 cm ( W x L )
OS SUPPORT: Support Windows 10(x64) / Windows 7




Κωδικός είδους:H310MHD-PR02

Κατασκευαστής:BIOSTAR

Εγγύηση:24 μήνες

Διαστάσεις Συσκευασίας:27 x 6 x 22 cm

Βάρος Συσκευασίας:0.689 Kg

Τύπος συσκευασίας:Retail
