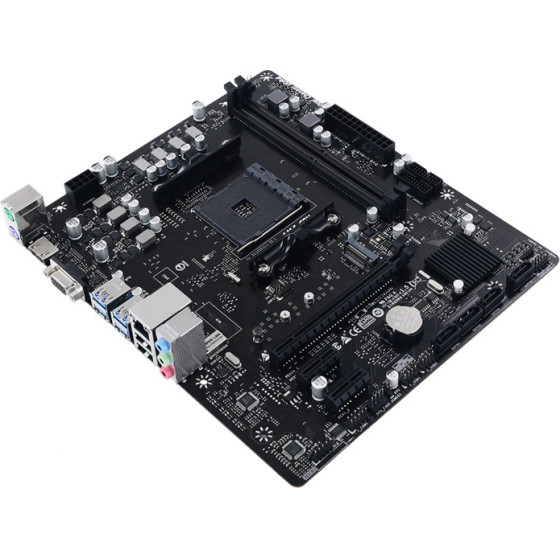

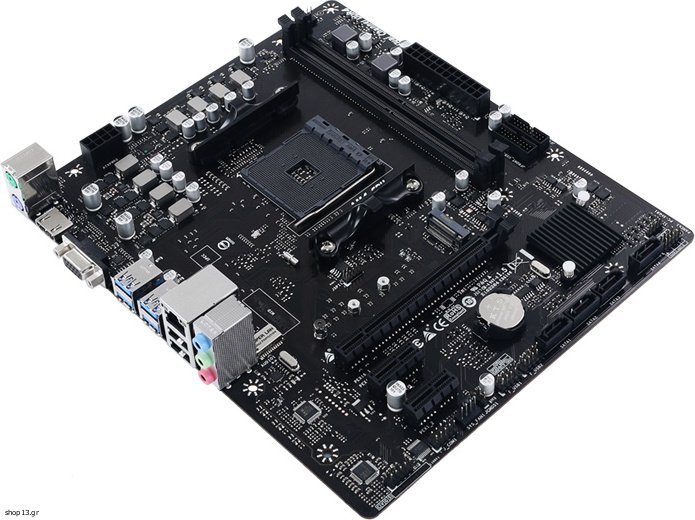

Biostar μητρική B550MH, 2x DDR4, AM4, Usb 3.2, uATX, Ver. 3.0 - (B550MH-3)

BIOSTAR μητρική B550MH, 2x DDR4, AM4, USB 3.2, uATX, Ver. 3.0
Η B550MH της Biostar είναι μια αξιόπιστη μητρική κάρτα, ιδανική για χρήση τόσο σε home PC όσο και σε business PC. Κατασκευάζεται από αξιόπιστα components και εξοπλίζεται με όλες τις σύγχρονες τεχνολογίες που προσφέρουν αυξημένες ταχύτητες και σταθερή απόδοση. Υποστηρίζει επεξεργαστές οι οποίοι είναι συμβατοί με το socket AM4 και βασίζεται στο chipset B550 της AMD.
Διαθέτει 2 εξόδους γραφικών: VGA και HDMI.
-Supports AMD 3rd RyzenTM (Matisse/ Renoir) processors
-AMD B550 single chip architecture
-Supports 2-DIMM DDR4-4933+(OC)/4800(OC)/4600(OC)/4400(OC)/4000(OC)/3800(OC)/3600(OC)/3200/2933/2667/2400/2133/1866
-Supports USB 3.2 Gen1
-Supports PCIe M.2 4.0 (64Gb/s)
-Supports HDMI 4K resolution
Τεχνικά χαρακτηριστικά
Chipset: AMD B550
CPU Support: Socket AM4 support AMD 3rd Gen Ryzen(TM) (Matisse/ Renoir) processors
Memory: 2x DDR4 DIMM Memory Slot, Max. Supports up to 64 GB Memory (3rd Gen AMD Ryzen Processors (Matisse CPUs), 3rd Gen AMD Ryzen with Radeon Graphics Processors (Renoir APUs)
Integrated video: By CPU model, Supports DX12, HDCP
Storage: 4x SATA III Connector (6Gb/s) : Supports AHCI & RAID 0, 1, 10, 1 x M.2 (M Key) Socket: Supports M.2 Type 2242/ 2260/ 2280 SSD module, Supports PCIe 4.0 x 4 (64Gb/s)/ 3.0 x 4 (32Gb/s) - NVMe/ AHCI SSD, Supports SATA III (6.0Gb/s) SSD
LAN: Realtek RTL8111H, 10/ 100/ 1000 Mb/s auto negotiation, Half / Full duplex capability, Supports Super LAN Surge Protection
Audio codec: ALC887 (7.1 Channels, High Definition Audio, Hi-Fi (Front)
USB: 8x USB 3.2 (Gen1) ports (4 on rear I/Os and 4 via internal headers), 6x USB 2.0 ports (2 on rear I/Os and 4 via internal headers)
Expansion slot: 1 x PCIe 4.0/ 3.0 x 16 Slot, 2x PCIe 3.0 x 1 Slot
Dimension: Micro ATX Form Factor Dimension: 24.4cm x 20.8cm ( W x L )
OS support: Supports Windows 10(64bit)
REAR I/O:
1x PS/2 Keyboard
1x PS/2 Mouse
1x HDMI Port
1x VGA Port
1x LAN port
4x USB 3.2 (Gen1) Ports
2x USB 2.0 Ports
3x Audio Jack
INTERNAL I/O:
4x SATA III (6.0Gb/s) Connectors
2x USB 2.0 Header (each header supports 2 USB 2.0 ports)
2x USB 3.2 (Gen1) Header (each header supports 2 USB 3.2 (Gen1) ports)
1x 8-Pin Power Connector
1x 24-Pin Power Connector
1x CPU Fan Connector
1x System Fan Connector
1x Front Panel Header
1x Front Audio Header
1x Clear CMOS Header
1x Internal Stereo Speaker Header
1x COM Port Header




Brand: BIOSTAR

Συσκευασία: Retail box

Socket: AM4

Chipset: B550
