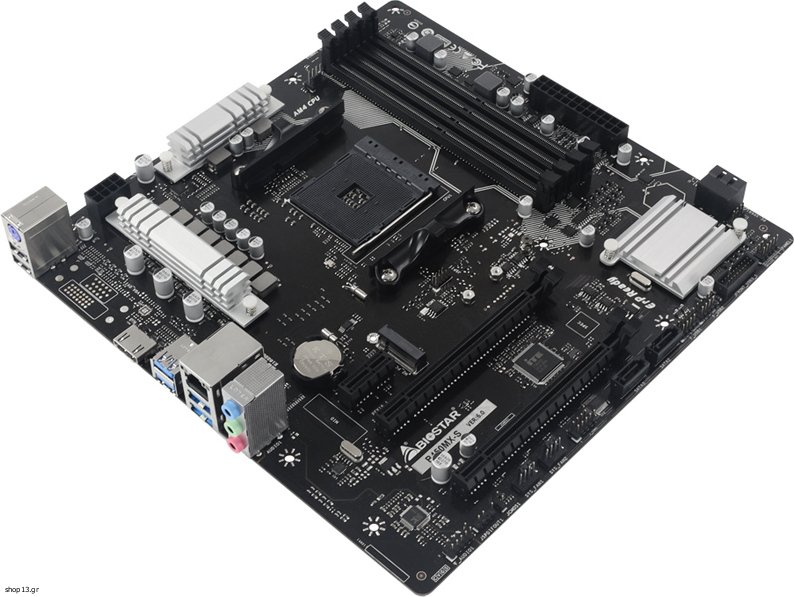

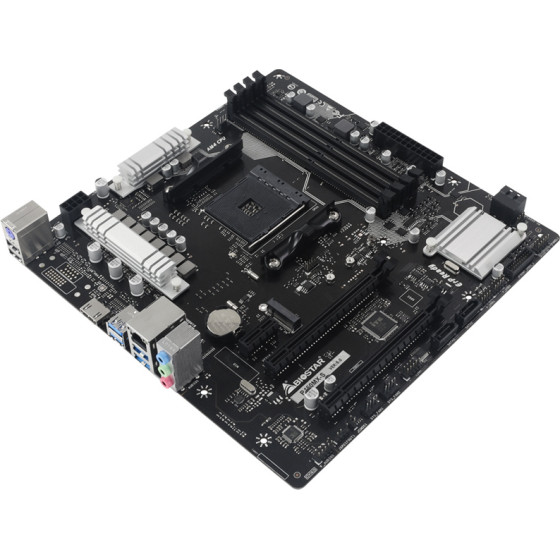

Biostar μητρική B450MX-S, 4x DDR4, AM4, uATX, Gbe LAN, 7.1CH, Ver. 6.0 - (B450MXS)

BIOSTAR μητρική B450MX-S, 4x DDR4, AM4, uATX, GbE LAN, 7.1CH, Ver. 6.0
Η B450MX-S της Biostar είναι μια αξιόπιστη μητρική κάρτα, ιδανική για χρήση τόσο σε home PC όσο και σε bussiness PC. Κατασκευάζεται από αξιόπιστα components και εξοπλίζεται με όλες τις σύγχρονες τεχνολογίες που προσφέρουν αυξημένες ταχύτητες και σταθερή απόδοση. Υποστηρίζει επεξεργαστές οι οποίοι είναι συμβατοί με το socket AM4 και βασίζεται στο chipset B450 της AMD.
Διαθέτει 1 έξοδο γραφικών HDMI.
-Supports AMD Ryzen APU/CPU
-AMD B450 single chip architecture
-Supports 4-DIMM DDR4-1866/2133/2400/2667/2933(OC)/3200(OC)/3600(OC)/4000(OC)/4066(OC)/4133(OC)/ 4200(OC)/4266(OC)/4333+(OC) up to 128 GB Memory
-Supports Realtek Gigabit LAN
-Supports USB 3.2 Gen1
-Supports M.2(32Gb/s)
-Supports HDMI 4K resolution
Τεχνικά χαρακτηριστικά
Chipset: AMD B450
CPU support: Supports AMD AM4 Socket for 3rd, 2nd and 1st Gen Ryzen/2nd and 1st Gen Ryzen with Radeon Vega Graphics/Athlon with Radeon Vega Graphics Processors
Memory:
-Supports Dual Channel DDR4 1866/ 2133/ 2400/ 2667
-Supports Dual Channel DDR4 2933(OC)/ 3200(OC)/ 3600(OC)/ 4000(OC) / 4066(OC)/ 4133(OC)/ 4200(OC)/ 4266(OC)/ 4333+(OC)
-4x DDR4 DIMM Memory Slot, Max. Supports up to 128 GB Memory
-Each DIMM supports non-ECC 8/16/32 GB DDR4 module
Integrated video: By CPU model, Supports DX12, Supports HDCP
LAN: Realtek RTL8111H, 10/ 100/ 1000 Mb/s auto negotiation, Half / Full duplex capability
Audio codec: ALC887, 7.1 Channels, High Definition Audio, Hi-Fi (Front)
USB: 6 x USB 3.2 (Gen1) ports(4 on rear I/Os and 2 via internal headers), 6 x USB 2.0 ports (2 on rear I/Os and 4 via internal headers)
Expansion slot:
-1x PCIe 3.0 x16 Slot: Supports PCIe 3.0 x 16 mode with AMD Ryzen(TM) processors. Supports PCIe 3.0 x 8 mode AMD Ryzen(TM) with Radeon Vega Graphics processors.
-1x PCIe 2.0 x 16 Slot (x4 mode)
-1x PCIe 2.0 x 1 Slot
Dimension: Micro ATX Form Factor Dimension: 24.4cm x 24.4cm ( W x L )
OS SUPPORT: Supports Windows 7(64it)/ 10(64bit) / 11(64bit), Windows 7(64bit) for Summit Ridge/ Pinnacle Ridge only
Rear I/O
1x PS/2 Keyboard/ Mouse Port
1x HDMI Port
1x LAN port
4x USB 3.2 (Gen1) Ports
2x USB 2.0 Ports
3x Audio Jack
Internal I/O:
4x SATA III (6.0Gb/s) Connectors
2x USB 2.0 Headers (each header supports 2 USB 2.0 ports)
1x USB 3.2 (Gen1) Header (each header supports 2 USB 3.2 (Gen1) ports)
1x 8-Pin Power Connector
1x 24-Pin Power Connector
1x CPU Fan Connector
2x System Fan Connectors
1x Front Panel Header
1x Front Audio Header
1x Clear CMOS Header
1x Internal Stereo Speaker Header
1x S/PDIF out Connector
1x COM Port Header




Brand: BIOSTAR

Συσκευασία: Retail box

Socket: AM4

Chipset: B450
