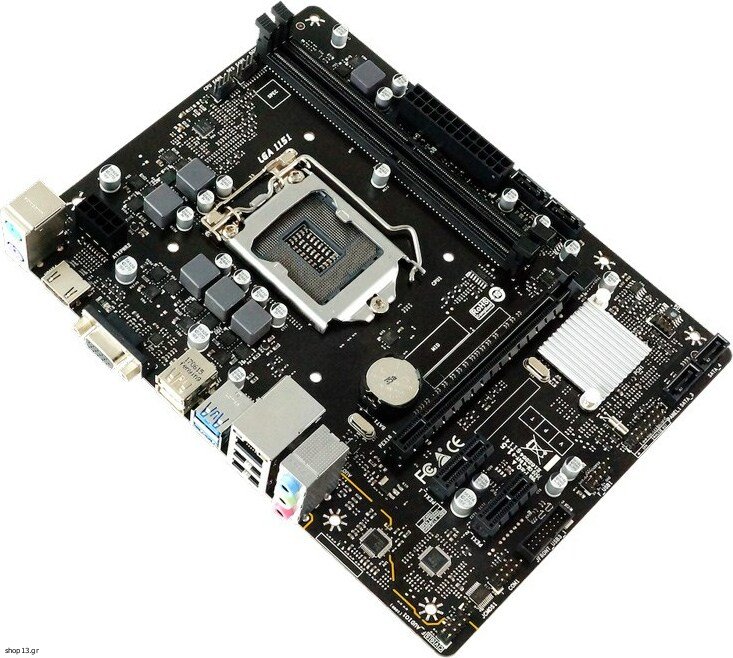

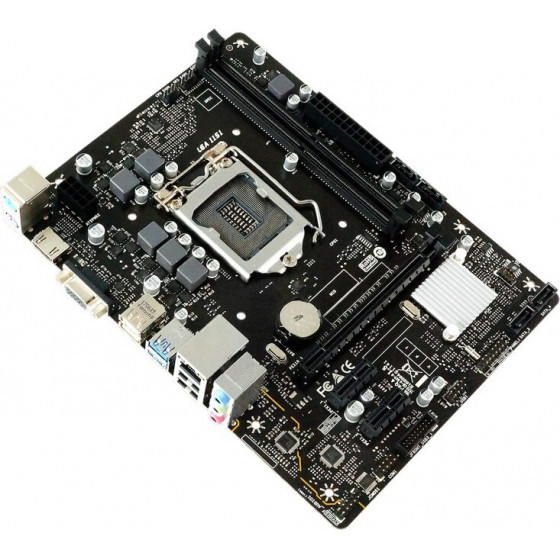

Biostar Μητρική 2x DDR4 s1151 USB 3.1 HDMI mATX Ver. 7.0 - (H310MHP)

BIOSTAR Μητρική H310MHP, 2x DDR4, s1151, USB 3.1, HDMI, mATX, Ver. 7.0


-Supports 9th & 8th Generation Intel(R) Core(TM) Processor
-Intel H310 single chip architecture
-Support Dual Channel DDR4 2666/2400/2133/1866 MHz
-Support HDMI 4K resolution
-Support GbE LAN
-Support USB 3.1 Gen1
Τεχνικά Χαρακτηριστικά
Chipset: Intel H310
CPU Support: Socket 1151 for 9th / 8th Gen Intel(R) Core, Pentium and Celeron processors
Maximum CPU TDP (Thermal Design Power): 95Watt
Memory: 2x DDR4 DIMM Memory Slot, Supports Dual Channel DDR4 1866/ 2133/ 2400/ 2666, Max. Supports up to 32 GB Memory
Integrated video: By CPU model, DX12, HDCP
Storage: 4x SATA3 Connector
LAN: RTL8111H, 10/ 100/ 1000 Mb/s auto negotiation, Half / Full duplex capability
Codec: ALC887, 7.1 Channels, High Definition Audio, Support HD Audio
USB: 4x USB 3.1(Gen1) port (2 on rear I/Os and 2 via internal header), 6x USB 2.0 port (4 on rear I/Os and 2 via internal header)
Expansion slot: 2x PCIe 2.0 x1 Slot, 1x PCIe 3.0 x16 Slot
Rer I/O:
1x PS/2 Mouse Port
1x PS/2 Keyboard Port
1x HDMI Port
1x VGA Port
1x LAN Port
4x USB 2.0 Port
2x USB 3.1(Gen1) Port
3x Audio Jack
Internal I/O:
4x SATA III Connector
1x USB 2.0 Header (each header supports 2 USB 2.0 ports)
1x USB 3.1(Gen1) Header (each header supports 2 USB 3.1(Gen1) ports)
1x 8-Pin Power Connector
1x 24-Pin Power Connector
1x CPU Fan Connector
1x System Fan Connector
1x Front Panel Header
1x Front Audio Header
1x Clear CMOS Header
1x COM Port Header
Dimension: Micro ATX Form Factor Dimension: 226mm x 171mm ( W x L )
OS Support: Support Windows 7/ 10(64bit)
Accessories:
2x SATA Cable
1x I/O Shield
1x DVD Driver
1x Quick Guide




Κωδικός είδους:H310MHP

Κατασκευαστής:BIOSTAR

Εγγύηση:24 μήνες

Διαστάσεις Συσκευασίας:27 x 6 x 22 cm

Βάρος Συσκευασίας:0.658 Kg

Τύπος συσκευασίας:Retail
